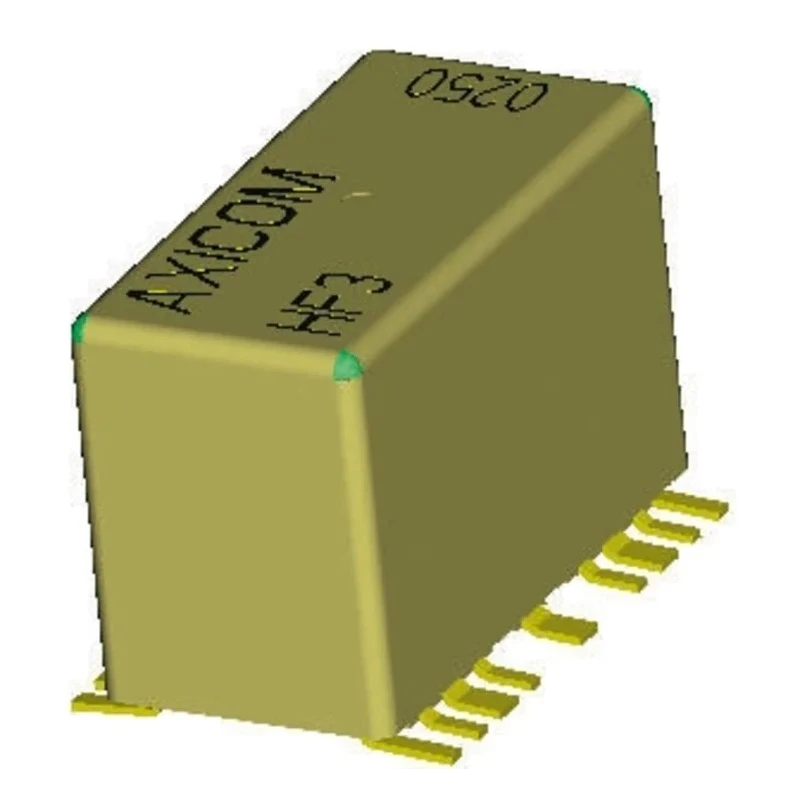

TE Connectivity PCB High Frequency Relay 12V DC Coil SPDT Gold Plated Contacts HF3 Series 1462050-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Length | 14.6mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HF3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1028Ω |
| Coil Power | 140mW |
| Contact Current | 2A |
Key Features
- Operates across a frequency range from DC up to 3 GHz.
- Gold plated contacts ensure reliable conductivity and durability.
- PCB mount type with solder terminals suitable for surface mounting.
- Coil resistance is 1028 ohms with coil power consumption of 140mW.
- Suitable for 50 ohm impedance systems with very low voltage standing wave ratio (VSWR) of 1.45 dB.
- Contact current rating of 2A supports low power switching applications.
- Wide operating temperature range from -55°C to 85°C.
- Plastic sealed monostable or bistable coil configuration for durable performance.
Product Description
TE Connectivity 1462050-4 PCB High Frequency Relay is a precision-engineered component designed for high frequency HF3 series applications requiring a 12V DC coil voltage. This relay features a single-pole double-throw (SPDT) contact configuration, gold plated contacts, and is mounted on PCB using solder terminals. It is well-suited for RF and high-frequency circuits with operation up to 3 GHz, making it a reliable choice for telecommunications, industrial automation, and electronic manufacturing.
The relay operates with a coil resistance of 1028 ohms and consumes 140 mW of coil power. Its compact form factor with dimensions 14.6 mm (length) by 7.2 mm (width) by 10 mm (height) fits easily into densely packed electronic assemblies. Rated for a contact current of 2A, it supports signal switching effectively while maintaining minimal insertion loss and superior electrical performance.
Designed to maintain stability and consistent operation across a broad temperature range from -55°C to 85°C, this relay is encapsulated in a plastic sealed package to protect against environmental factors and ensure long-term reliability. Its VSWR of 1.45 dB guarantees minimal signal reflection and power loss, essential in sensitive RF applications.
This product is RoHS compliant, ensuring it meets environmental regulations for hazardous substance reduction. The HF3 series relay is ideal for industrial, laboratory, telecommunications, and commercial applications needing precise high frequency switching.
Frequency range DC to 3 GHz with 50 Ω impedance. Gold plated contact material enhances durability and minimizes contact resistance. Monostable or bistable coil options support versatile circuit designs. Compact footprint suitable for modern PCB layouts.
Operating temperature from -55°C to 85°C for wide environmental resilience.
Users can integrate this high frequency PCB relay into their device designs with confidence in performance and quality. Available with extensive technical documentation, it supports efficient design and manufacturing workflows. Browse more high-frequency relay products to find solutions tailored to your specific application on EnvMart.
Explore more products in our Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay operates across a frequency range from DC up to 3 GHz, making it suitable for high-frequency applications.
The coil resistance of this relay is 1028 ohms, which is important for determining its power consumption and compatibility with circuits.
It has a contact current rating of 2A, allowing it to support low power switching applications effectively.
The relay has dimensions of 14.6 mm in length, 7.2 mm in width, and 10 mm in height, making it compact for PCB layouts.
This relay is designed for PCB mounting and features solder terminals suitable for surface mounting.
The coil power consumption is 140 mW, which is relevant for energy efficiency and circuit design considerations.
It operates within a wide temperature range from -55°C to 85°C, suitable for various environmental conditions.
The relay features a single-pole double-throw (SPDT) contact configuration, allowing versatile switching options.
The contacts are made of gold plated material, which enhances conductivity and minimizes contact resistance.
Yes, this relay is RoHS compliant, ensuring it meets environmental regulations for hazardous substances.
This relay is suitable for telecommunications, industrial automation, and electronic manufacturing applications requiring precise high frequency switching.
