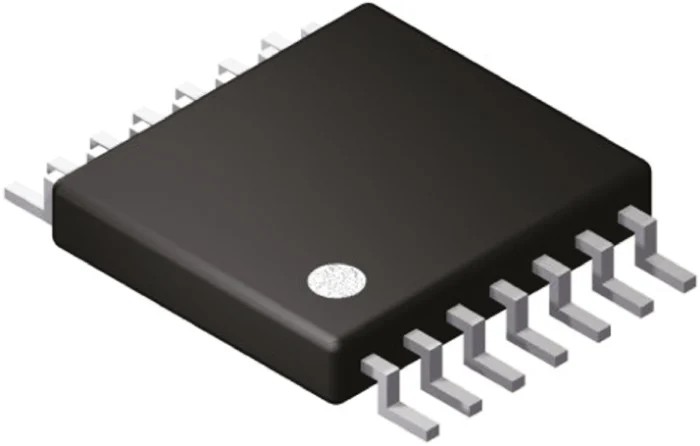

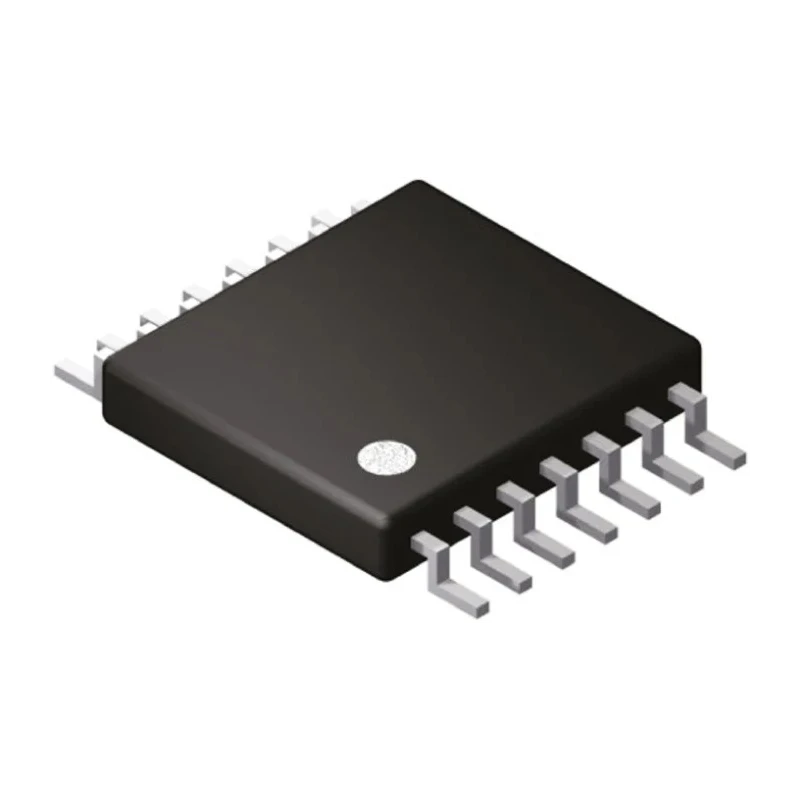

STMicroelectronics Operational Amplifier 1.3 MHz 14-Pin Surface Mount TSSOP LM324PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 5mm |
| Model | LM324PT |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LM324 |
| Output Current | 70mA |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 200 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 40 nA |
| Low supply current per amplifier | 375 μA |
Key Features
- This amplifier contains four independent high-gain circuits with internal frequency compensation.
- It supports a wide power supply range from 5V to 30V for versatile applications.
- Low input bias current and low supply current ensure energy-efficient performance.
- Operating temperature ranges from 0°C to 70°C, suitable for various industrial environments.
- Features a large voltage gain of 100 dB with low offset voltage of 9 mV for precise amplification.
- Compact dimensions of 5 mm length, 4.4 mm width, and 1 mm height in a TSSOP package.
- Designed to meet RoHS standards ensuring conformity with environmental regulations.
- Output current capability is up to 70 mA with slew rate of 0.4 V/μs for responsive signal handling.
Product Description
STMicroelectronics LM324PT is a high-performance quad operational amplifier featuring a 1.3 MHz gain bandwidth and housed in a surface mount 14-pin TSSOP package. It is designed for general amplification needs in electronic circuits, supporting supply voltages from 5V up to 30V.
This device incorporates four independent, high-gain amplifiers with internal frequency compensation, providing a stable and wide input common-mode voltage range including ground. It achieves a large voltage gain of 100 dB, combined with low input offset voltage of 9 mV and low input bias current of 200 nA, making it ideal for precise analog signal processing.
The LM324PT features a low supply current of 375 μA per amplifier and delivers output currents up to 70 mA, along with a slew rate of 0.4 V/μs for effective signal speed. Its compact size with dimensions of 5 mm by 4.4 mm by 1 mm enables ease of use in densely packed circuit designs.
This operational amplifier complies with RoHS standards, ensuring it meets current environmental and safety guidelines. It operates reliably within a temperature range of 0°C to 70°C, adapted for a variety of commercial and industrial applications including electronic components and semiconductor assemblies.
Four independent high gain Operational Amplifiers integrated in one package. Wide supply voltage from 5 V to 30 V for flexible power configurations. Low input offset voltage and bias current for accurate amplification. Compact 14-pin TSSOP package supporting surface mount technology.
Compliant with RoHS environmental regulations. Output current up to 70 mA and slew rate of 0.4 V/μs. Operating temperature range suitable for commercial applications.
This product suits industrial, laboratory, electronics manufacturing, and semiconductor applications where reliable, low-power, and compact operational amplification is required. Explore the electronics & electricals category on EnvMart for related components and amplifiers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM324PT has a gain bandwidth product of 1.3 MHz.
It can deliver an output current of up to 70 mA.
This model supports a wide supply voltage range from 5V to 30V.
The dimensions of this operational amplifier are 5 mm in length, 4.4 mm in width, and 1 mm in height.
It operates within a temperature range of 0°C to 70°C.
The input offset voltage is specified at 9 mV.
This operational amplifier contains four independent channels.
The slew rate for this amplifier is 0.4 V/μs.
It is housed in a 14-pin TSSOP package suitable for surface mounting.
The input bias current is 200 nA per amplifier.
Yes, it complies with RoHS standards, ensuring conformity with environmental regulations.
The low supply current per amplifier is 375 μA.
