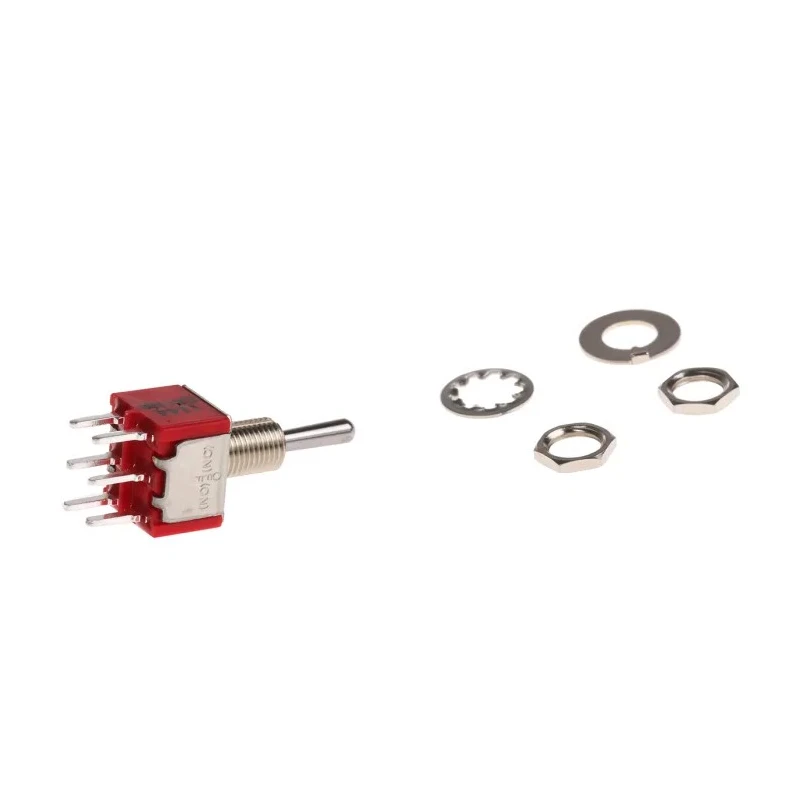

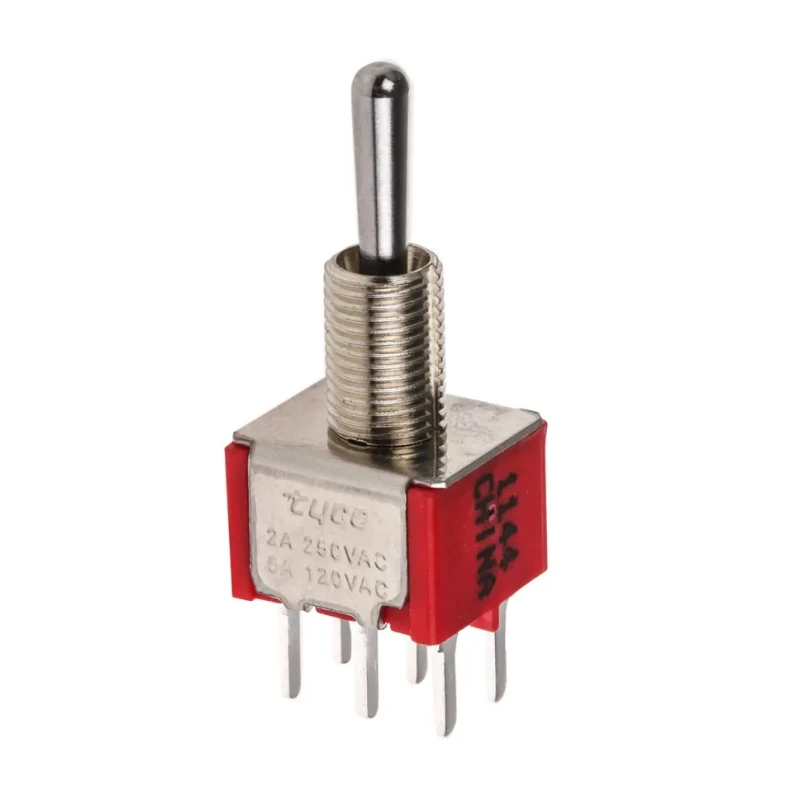

TE Connectivity Toggle Switch PCB Mount Momentary-Off-Momentary DPDT Through Hole Terminal 28 V dc 115 V ac 1-1825139-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary-Off-Momentary |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Double Pole Double Throw (DPDT) contact configuration ensures reliable switching.
- Momentary-Off-Momentary switch operation for precise control.
- Designed for PCB mounting with through hole terminal type.
- Epoxy sealed terminals with IP67 rating for dust and water protection.
- Phenolic actuator material providing durability and electrical insulation.
- Suitable operating temperature range from -30°C to 85°C.
- Compact dimensions optimizing panel space usage.
- Panel cutout size of 6.35 mm enables easy installation.
Product Description
TE Connectivity 1-1825139-7 Toggle Switch is a high-quality PCB mount switch featuring Momentary-Off-Momentary operation and DPDT (Double Pole Double Throw) contact configuration. It supports electrical ratings of 28 V dc and 115 V ac, making it suitable for various industrial, automation, and electrical applications requiring reliable on-off control.
The switch is equipped with through hole terminals designed for secure PCB mounting and epoxy sealed terminals providing IP67 ingress protection, ensuring dust and water resistance for demanding environments. The actuator is made from phenolic material, combining robust mechanical strength with excellent electrical insulation properties, appropriate for industrial and manufacturing settings.
Operating reliably over a temperature range from -30°C to 85°C, this toggle switch is compact with physical dimensions including 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height. The panel cutout size is 6.35 mm, facilitating easy integration into control panels. The switch contact current rating is 5A, suitable for a broad range of electrical loads.
Designed as part of the Gemini A series, this toggle switch meets RoHS standards, ensuring compliance with environmental directives for hazardous substances. Its epoxy sealed terminals and stainless steel frame with brass tin-plated solder support provide durability and long operational life.
Double Pole Double Throw (DPDT) contact configuration ensures reliable switching. Momentary-Off-Momentary switch operation for precise control. Epoxy sealed terminals with IP67 dust and water resistance protection. Phenolic actuator material ensures mechanical strength and electrical insulation.
Compact size for easy installation in tight panel spaces. Rated for 5A switch contact current at 28 V dc and 115 V ac. Operating temperature range from -30°C to 85°C suitable for various environments. Complies with RoHS environmental standards.
Includes stainless steel frame with brass tin-plated solder support for durability.
This toggle switch is ideal for use in industrial automation, electrical controls, manufacturing equipment, and other applications requiring robust momentary switch solutions mounted directly onto PCBs. Explore the TE Connectivity product range in the Toggle Switches category at EnvMart for more industrial-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, ensuring reliable switching operations.
It operates reliably within a temperature range of -30°C to 85°C, making it suitable for various environments.
The epoxy sealed terminals have an IP67 rating, providing protection against dust and water ingress.
It supports electrical ratings of 28 V dc and 115 V ac, with a switch contact current rating of 5A.
The dimensions of this unit are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height.
The panel cutout size needed for installation is 6.35 mm.
It features through hole terminals designed for secure PCB mounting.
The actuator is made from phenolic material, which provides durability and electrical insulation.
Yes, it complies with RoHS standards, ensuring it meets environmental directives for hazardous substances.
This model is part of the Gemini A series of toggle switches.
The switch operates on a Momentary-Off-Momentary basis, allowing for precise control.
It is suitable for various industrial, automation, and electrical applications requiring reliable on-off control.
