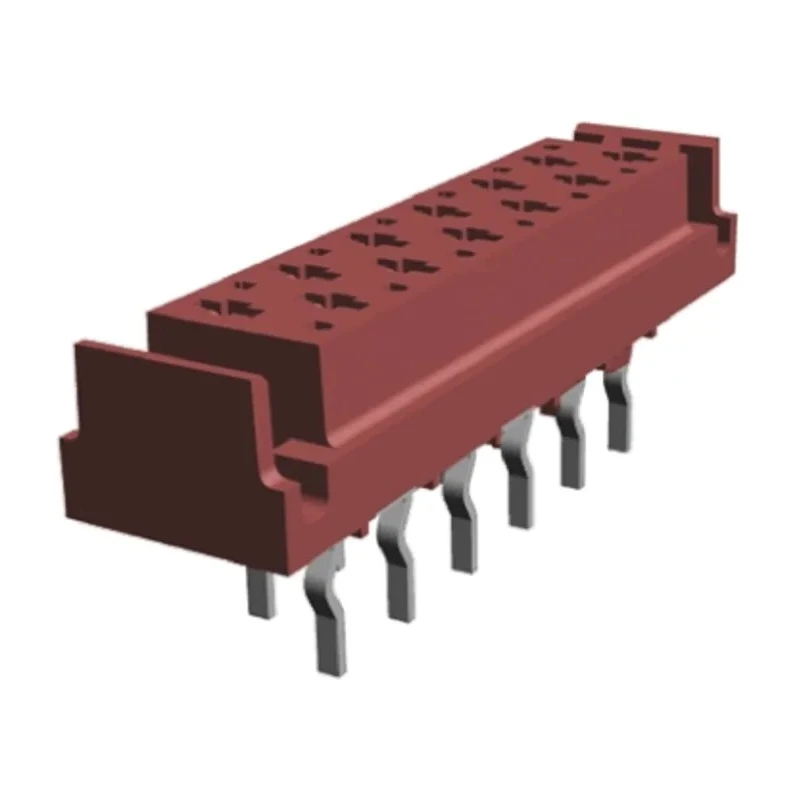

TE Connectivity Micro-MaTch Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch, 1.5A 1-338068-2

TE Connectivity 1-338068-2 Micro-MaTch Series Straight Through Hole PCB Socket is a high-quality connector designed for board-to-board interconnection systems requiring reliable and durable performance. Featuring 12 female contacts arranged in 2 rows with a 2.54 mm pitch, this PCB socket incorporates the advanced Micro-MaTch contact spring system with indented solder legs, which increases retention and reliability during soldering processes.

Constructed with bronze contacts that are nickel plated and tin finished, and housed in a liquid crystal polymer body, this connector ensures excellent conductivity and mechanical strength. The solder termination and through-hole mount type provide robust mounting on printed circuit boards, suited for applications where durability is critical.

This connector supports a current rating of 1.5 amperes and an operating voltage of 100 volts. It operates reliably across a wide temperature range from minus 40 degrees Celsius up to 125 degrees Celsius, making it suitable for various industrial environments.

The female contact design includes a gas-tight connection and an additional positioning spring that absorbs relative vibrations and thermal expansions, thus preventing fretting corrosion, a common failure mode in tin-plated connections. This ensures long-term durability and signal integrity.

Applications for this Micro-MaTch PCB socket include production and material handling equipment, control units, robots, motors, central heating units, car radios, navigation systems, dashboards, base stations, set-top boxes, and audio equipment. It is ideal for industries involved in manufacturing, automation, and electronics production.

Utilizes Micro-MaTch contact spring system with indented solder legs for enhanced retention. Designed for board-to-board connections with a straight orientation and through-hole mount type. Houses contacts made of bronze with nickel-plated and tin plating for durability.

Operates safely at currents up to 1.5A and voltages up to 100V. Constructed with liquid crystal polymer housing material for reliable performance. Suitable for operating temperatures from -40°C to 125°C. Female contact gender designed to prevent fretting corrosion with gas-tight connections.

Compatible with ribbon cables of 28 AWG and offers mass termination capabilities. Ideal for industrial electronics applications including control units, robots, and audio equipment. Explore more Micro-MaTch connectors and PCB Sockets at EnvMart to fulfill all your electronic components needs.
