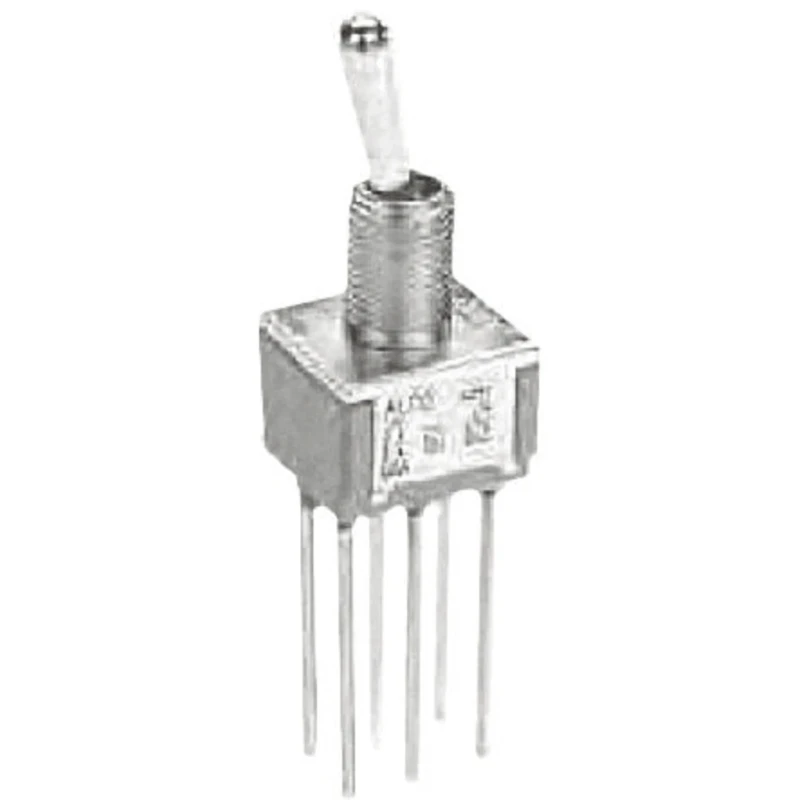

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28 V dc 125 V ac 2-1825138-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch supports a contact configuration of Double Pole Double Throw (DPDT).
- It operates safely at voltages up to 28 V dc and 125 V ac.
- The switch has a current rating of 5 A for optimal performance.
- Mount type is PCB with through hole terminal to ensure secure installation.
- The actuator is made from durable phenolic material to withstand extended use.
- It features a panel cutout size of 6.35 mm suitable for compact assemblies.
- Operating temperature range is from -30°C to 85°C, making it suitable for varied environments.
- The Gemini A series stainless steel frame provides corrosion resistance and durability.
Product Description
TE Connectivity 2-1825138-6 Toggle Switch is a high-quality PCB mount toggle switch featuring an On-On DPDT (Double Pole Double Throw) contact configuration suitable for various electrical applications requiring dual circuits control.
This switch is rated for a contact current of 5 amperes and supports voltages up to 28 V dc and 125 V ac, adaptable for low voltage electronic systems as well as general electrical switching needs.
The switch's actuator is constructed from robust phenolic material, providing mechanical strength and longevity, while the stainless steel frame with brass tin plated solder support ensures a stable and corrosion-resistant structure.
Designed for through-hole PCB mounting, this toggle switch includes sealed epoxy terminals that add protection against environmental contaminants, enhancing reliability in industrial, laboratory, and automation equipment.
Dimensionally compact with a panel cutout size of 6.35 mm, height of 0.35 inches, length of 0.5 inches, and width of 0.45 inches, this component fits well into tight spaces without sacrificing functionality.
Operating temperature range from -30°C to 85°C makes this switch suitable for a broad spectrum of environments including industrial control panels, automation systems, and consumer electronics.
The Gemini A series represents a trusted line of toggle switches known for quality and compliance with RoHS environmental standards. Double Pole Double Throw (DPDT) contact configuration. 5 Amp contact current rating. On-On switch operation for stable circuit switching.
Phenolic actuator material for durability. PCB mount with through hole terminals. Epoxy sealed terminals for protection. Panel cutout size of 6.35 mm allowing compact installation. Operating temperature -30°C to 85°C wide range.
Series: Gemini A compliant with RoHS standards.
This TE Connectivity Toggle Switch is ideal for industrial, electrical, automation, and manufacturing applications where dependable switching with compact form factor is essential. Explore more high-quality switches and electronic components from EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for dual circuit control.
It operates at a maximum contact DC voltage of 28 V and a maximum contact AC voltage of 125 V.
The switch has a contact current rating of 5 A, suitable for various electrical applications.
The operating temperature range is from -30°C to 85°C, making it suitable for a variety of environments.
The required panel cutout size for this toggle switch is 6.35 mm, allowing for compact installation.
This model is designed for PCB mounting with through hole terminals for secure installation.
The actuator is constructed from phenolic material, providing mechanical strength and durability.
The dimensions are 0.35 inches in height, 0.5 inches in length, and 0.45 inches in width.
Yes, it is compliant with RoHS environmental standards, ensuring it meets specific safety and environmental regulations.
This toggle switch is part of the Gemini A series, known for its quality and reliability.
It features sealed epoxy terminals that provide protection against environmental contaminants, enhancing reliability.
This switch is suitable for industrial control panels, automation systems, and consumer electronics, among other applications.
