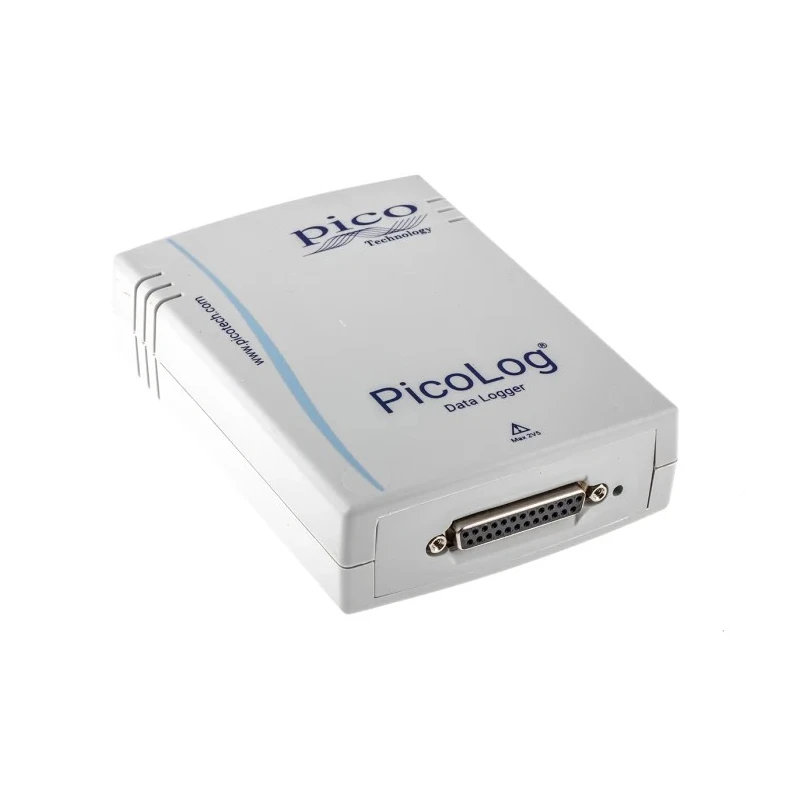

Pico Technology PicoLog 1216 16-Channel 12-bit Voltage Data Logger USB 2.0 Interface PICOLOG 1216 with terminal bd
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 12 bit |
| Accuracy | ±0.5 % |
| Brand | Pico Technology |
| Height | 45mm |
| Length | 140mm |
| Model | PICOLOG 1216 with terminal bd |
| Width | 100mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB connected and powered |
| Number Of Channels | 16 |
| Measurement Parameters | Voltage |
| Interface Type | USB 2.0 |
| Number of Readings per Channel | 8000 |
| 11 channel USB Data logger, 12-bitBrand | Pico Technology |
Key Features
- Features 16 independent input channels configurable with 12-bit accuracy.
- Supports up to 8000 readings per channel with voltage measurement parameters.

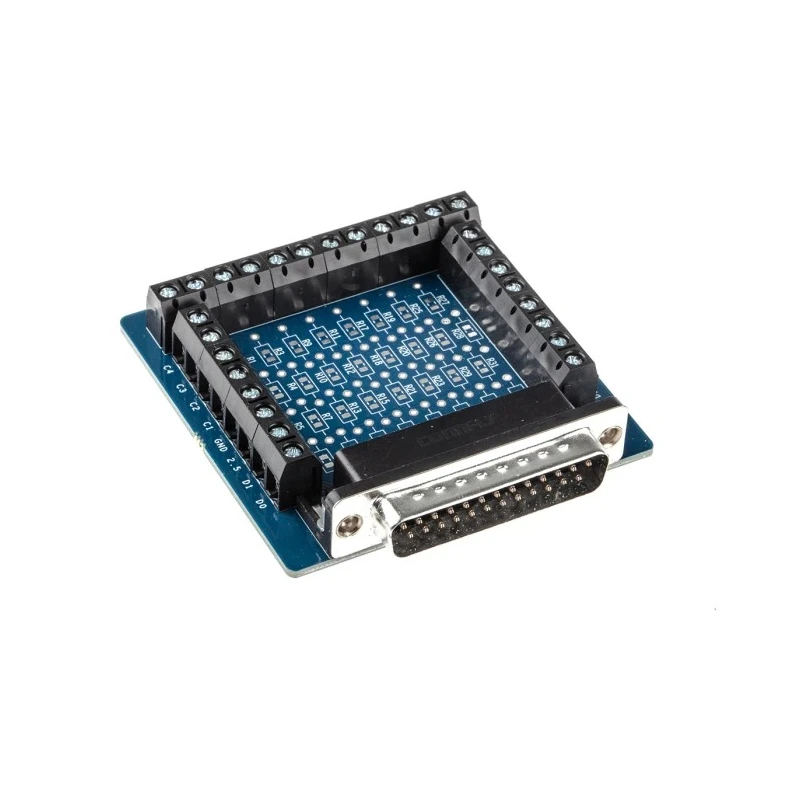

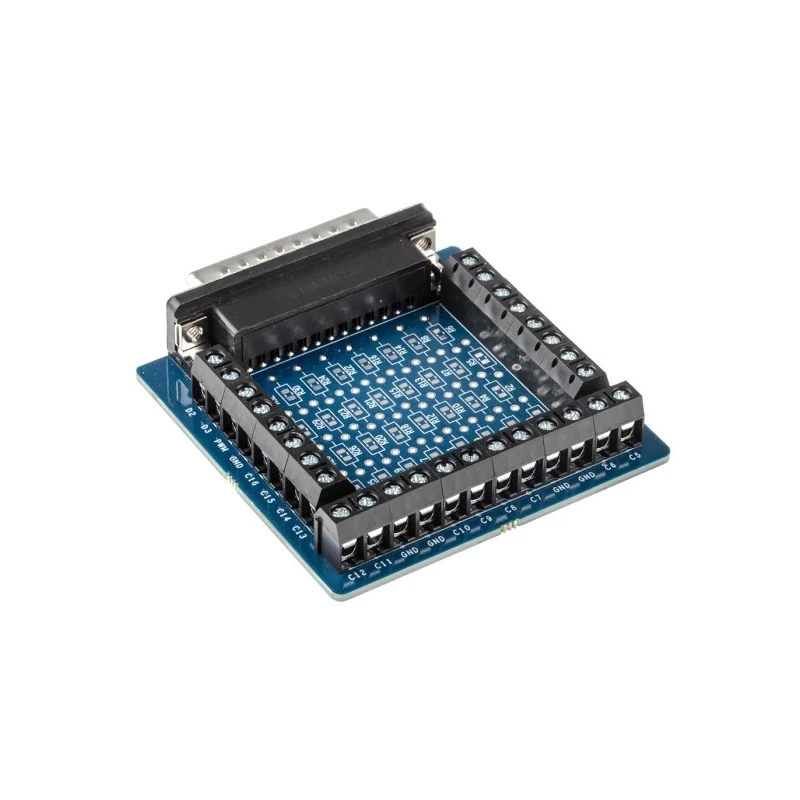

- Includes a terminal board for easy wire termination and extension of input ranges.
- Powered and connected via USB 2.0 interface ensuring ease of data transfer and operation.
- Compatible with Windows, macOS, Linux, and Raspberry Pi OS for versatile usage.
- Supports real-time data streaming to PicoLog Cloud for remote monitoring and sharing.
- Includes PicoLog and PicoScope software along with a software development kit for customization.
- Operates within 0°C to 70°C ensuring reliability in varied environments.
Product Description
Pico Technology PICOLOG 1216 with terminal bd Voltage Data Logger is a versatile general-purpose data logger designed for industrial and laboratory applications. It features 16 channels with 12-bit resolution, making it suitable for precise voltage, sensor, and transducer data acquisition.

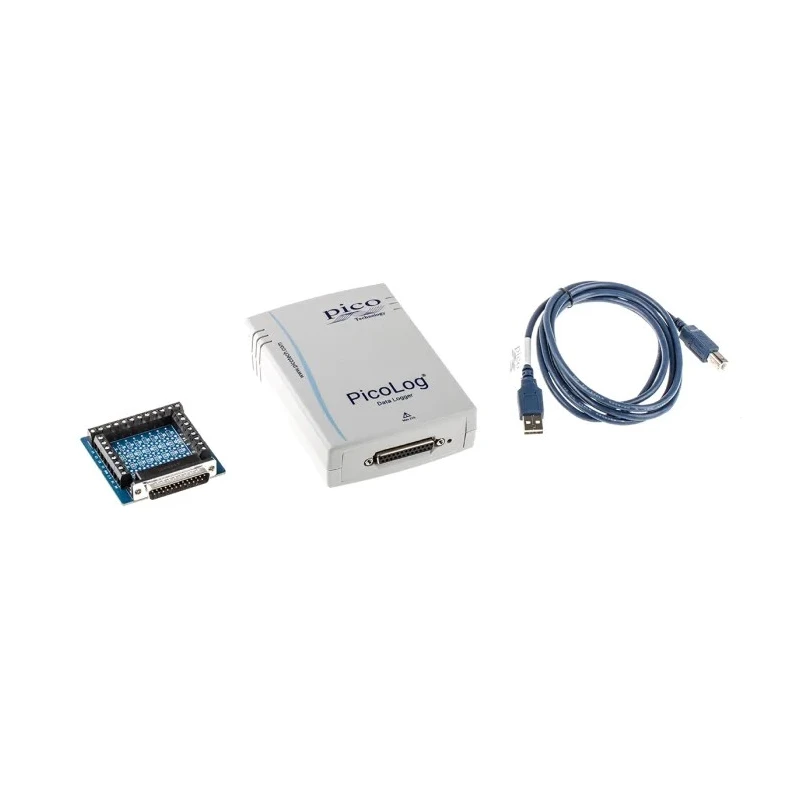

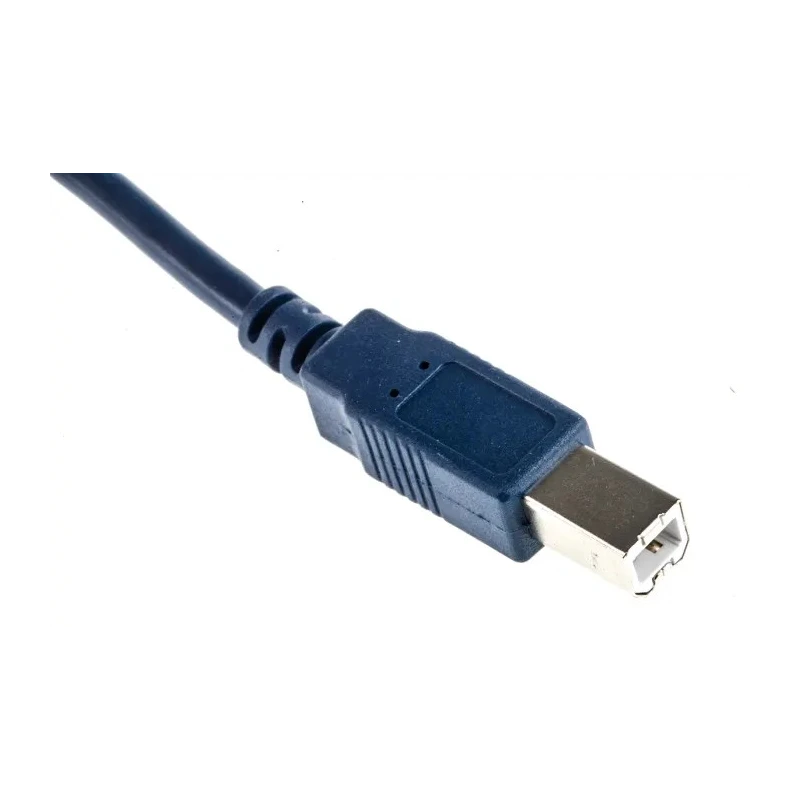

This unit comes supplied with a terminal board for custom wiring, a USB 2.0 cable for direct connectivity, and comprehensive software including PicoLog and PicoScope applications along with a development kit for flexible integration.
The device supports up to 8000 readings per channel and offers 4 digital output channels for control functions. Its USB powered and connected design makes it convenient to deploy without additional power sources.
Compatible with Windows, macOS, Linux, and Raspberry Pi OS, the PicoLog 1216 facilitates versatile data logging in industrial, construction, laboratory, testing, and HVAC fields. Additionally, PicoLog Cloud provides secure online streaming and storage of logged data, enabling global access and integration with third-party systems via APIs.
Features 16 independent 12-bit input channels for precise measurement. Utilizes a USB 2.0 powered interface for ease of use. Supports high data sampling rates up to 1 MS/s and simultaneous multi-logger operation. Includes terminal board and software for immediate deployment and customization.
Operates reliably between 0°C to 70°C suitable for various environments. Enables cloud streaming and remote data access via PicoLog Cloud. Compatible across multiple operating systems including Raspberry Pi OS. Equipped with alarm functions for improved monitoring.
This Data Logger is ideal for applications requiring accurate voltage monitoring, data acquisition, and real-time data sharing in test and measurement, industrial automation, and research environments. Explore the full range of Pico Technology products at EnvMart for related data acquisition solutions.
