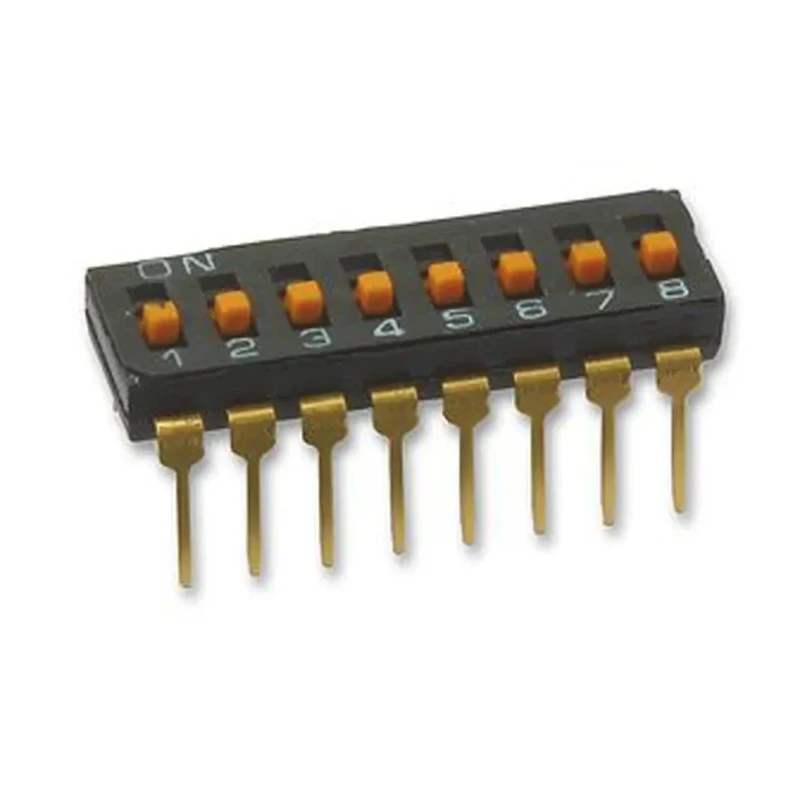

Omron Slide Rotary Coded DIP Switch Through Hole A6T-8104
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6T-8104 |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min at 250Vdc |
| Contact Resistance | 200mΩ max |
| Mechanical Life | 1000 operations |
| Omron 8 Way Through Hole DIP Switch 8PBrand | Omron |
Key Features
- Mount type is through hole suitable for DIL standards mounting.
- Actuator type is slide with raised and flush actuator options.
- Gold plated contacts ensure reliable conductivity.
- Contact resistance is a maximum of 200 milliohms.
- Insulation resistance is a minimum of 100 megaohms at 250 V DC.
- Mechanical life supports 1000 operations ensuring durability.
- RoHS compliant for environmental safety.
- Manufactured in China ensuring international quality standards.
Product Description
Omron A6T-8104 Slide Rotary Coded DIP Switch is a precision-engineered rotary coded DIP switch designed for through hole mounting on printed circuit boards. Featuring a slide actuator with raised and flush options, it is built to meet stringent DIL standards that allow for automatic mounting with IC insertion machines, improving manufacturing efficiency and consistency.
The switch offers gold plated contacts which provide excellent conductivity and corrosion resistance, essential for reliable electrical performance in industrial, electronic, and automation uses. It maintains a low contact resistance of 200 milliohms maximum and high insulation resistance of 100 megaohms minimum at 250 V DC, ensuring signal integrity and electrical isolation.
With a mechanical life of 1000 operations, this slide rotary DIP switch delivers dependable long-term operation in various applications including industrial automation systems, electronic control panels, and instrumentation.
The product is RoHS compliant, reflecting its adherence to environmental and safety standards. It is manufactured in China under stringent quality controls. Mount type is through hole suitable for DIL standard automatic mounting.
Slide actuator provides precise switching action with raised and flush options. Gold plated contacts for superior conductivity and corrosion resistance. Maximum contact resistance is 200 milliohms ensuring low signal loss.
Minimum insulation resistance of 100 megaohms at 250 V DC protects against electrical leakage. Mechanical durability supports up to 1000 switching cycles. Complies with RoHS environmental standards. Ideal for industrial, laboratory, and electronic manufacturing use cases.
This Omron slide rotary coded DIP switch is an essential component for designers and engineers designing circuit boards that require high reliability and precision switching. Explore more Rotary Coded DIP Switches and related components to suit your application needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The A6T-8104 switch features a through hole mounting type, suitable for DIL standards and automatic mounting with IC insertion machines.
This model utilizes a slide actuator, which is available in both raised and flush options for precise switching action.
The maximum contact resistance for this switch is 200 milliohms, ensuring low signal loss during operation.
It offers a minimum insulation resistance of 100 megaohms at 250 V DC, protecting against electrical leakage.
The mechanical life of this switch supports up to 1000 operations, ensuring long-term functionality.
Yes, this switch is RoHS compliant, reflecting adherence to environmental and safety standards.
The A6T-8104 is manufactured in China, ensuring it meets international quality standards.
This rotary coded DIP switch is suitable for various applications, including industrial automation systems, electronic control panels, and instrumentation.
Specific dimensions are not provided in the available data; please refer to the manufacturer's documentation for detailed size specifications.
This model is designed for through hole connections, compatible with standard printed circuit board layouts.
The available data does not specify any required accessories for installation; it is recommended to consult the manufacturer's guidelines for any additional components needed.
Features such as gold plated contacts for conductivity and corrosion resistance, along with low contact resistance, enhance the reliability of this switch.
