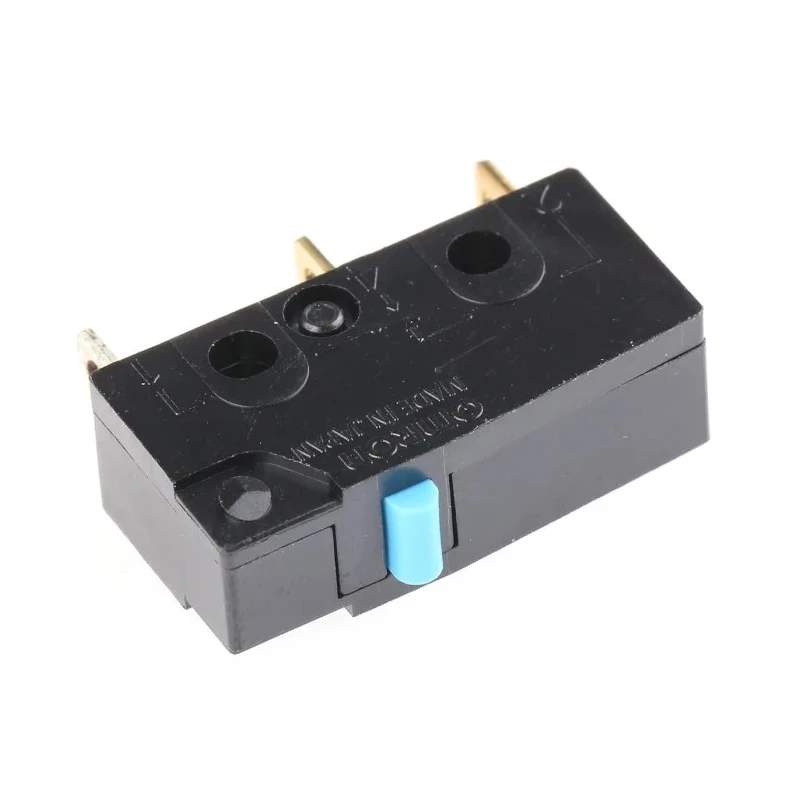

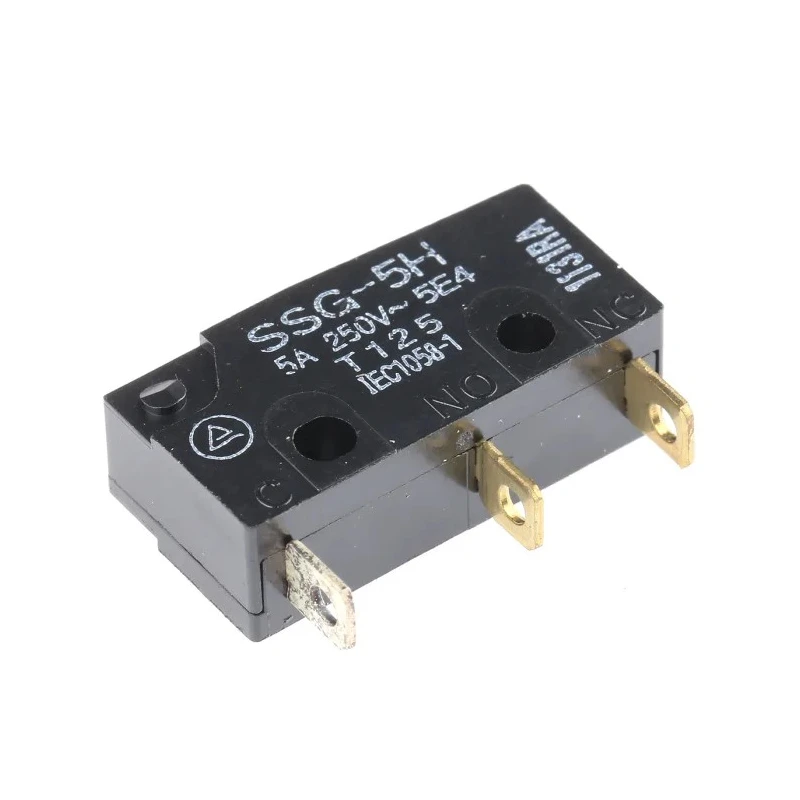

Omron Subminiature Pin Plunger Micro Switch, Solder Terminal, 5A, 250 V AC, 30 V DC, SPDT, IP40 SSG-5H
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 19.8mm |
| Model | SSG-5H |
| Depth | 9.9mm |
| IP Rating | IP40 |
| Width | 6.4mm |
| Series | SSG |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | BEAB, CSA, IMQ, RoHS, TUV, UL, VDE |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 5A |
| Operating Force | 1.5N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
| Dimensions (body) | H9.9mm, W19.8mm, D6.4mm |
Key Features
- Subminiature design ideal for compact applications.
- Rated for 250 V AC and 30 V DC contact voltages.
- Single Pole Double Throw (SPDT) contact configuration.
- IP40 protection rating suitable for industrial environments.
- Operating force of 1.5 N with a wide temperature range from -25°C to 125°C.
- High mechanical life of 10 million operations for durability.
- Compliant with multiple standards including BEAB, CSA, IMQ, RoHS, TUV, UL, and VDE.
- Resistant to flux on PCB terminal models.
Product Description
Omron SSG-5H Subminiature Pin Plunger Micro Switch is designed for precise and reliable switching in electrical and automation systems. Featuring a solder terminal and SPDT contact configuration, this micro switch supports a maximum contact current of 5A and contact voltages of 250 V AC and 30 V DC. It boasts a robust mechanical life of 10 million operations and operates effectively within a temperature range from -25°C to 125°C.
This switch adopts a subminiature form factor with dimensions of 19.8 mm in length, 6.4 mm in width, and 9.9 mm in depth, enabling compact installation. The IP40 rating protects the device from solid foreign objects, making it suitable for industrial automation, control systems, HVAC, and manufacturing equipment where precise control is essential.
Omron's SSG-5H micro switch complies with key international standards including BEAB, CSA, IMQ, RoHS, TUV, UL, and VDE, demonstrating its safety and environmental compliance. The switch employs a pin plunger actuator type and features solder terminals which ensure firm electrical connections, suitable for PCB assemblies that require flux resistance.
Its wide operating temperature tolerance and high mechanical durability make it ideal for demanding industrial environments. Manufactured in Japan, the product reflects high-quality engineering standards.
Subminiature pin plunger actuator ensures precise actuation. Solder terminal for secure electrical connections. High contact current capacity of 5A for versatile applications. Rated for both AC (250 V) and DC (30 V) contact voltages.
Robust IP40 ingress protection for industrial use. Long mechanical life of 10 million operations ensures reliability. Standard-compliant with multiple certifications for safety and quality. Compact body dimensions suitable for space-limited installations.
Wide operating temperature range from -25°C to 125°C. Made in Japan, promising excellent manufacturing quality.
This micro switch is well suited for industrial automation systems, electrical control circuits, HVAC controls, and manufacturing machinery. EnvMart offers comprehensive listings of Omron Micro Switches to facilitate industrial procurement and design engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 5A.
This micro switch is rated for contact voltages of 250 V AC and 30 V DC.
The operating temperature range for this unit is from -25°C to 125°C.
The IP rating of this micro switch is IP40, which protects it from solid foreign objects.
It uses a pin plunger actuator type for precise actuation.
The dimensions of this model are 19.8 mm in length, 6.4 mm in width, and 9.9 mm in depth.
This micro switch has a mechanical life of 10 million operations.
It features solder terminals for secure electrical connections.
It complies with multiple standards including BEAB, CSA, IMQ, RoHS, TUV, UL, and VDE.
The operating force required for this model is 1.5 N.
This switch is suitable for industrial automation, control systems, HVAC, and manufacturing equipment.
This micro switch is manufactured in Japan.
