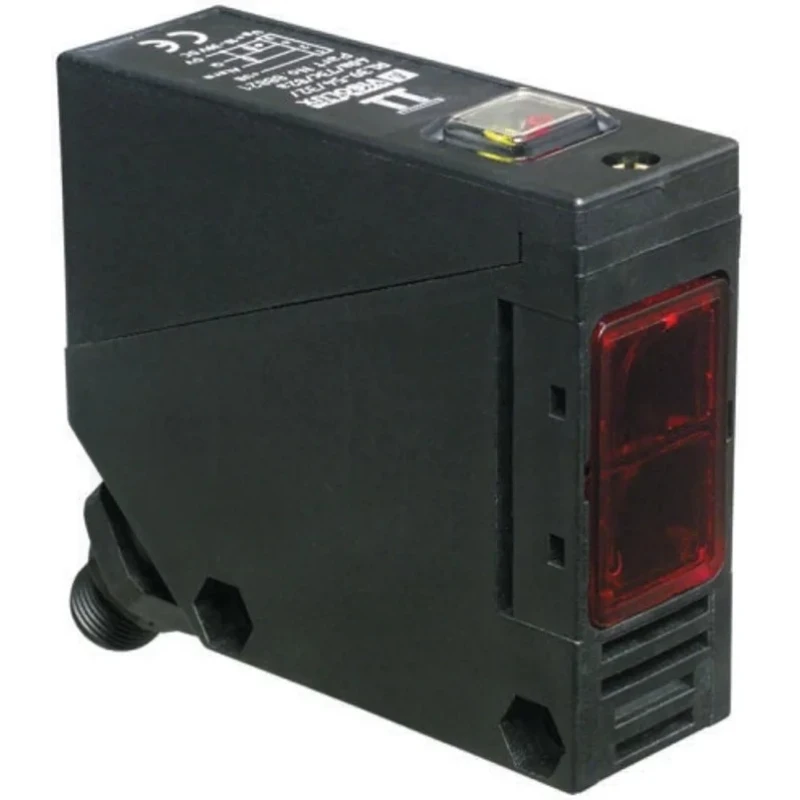

Pepperl + Fuchs Diffuse Photoelectric Sensor Block Sensor Relay Output Infrared LED 240V AC/DC IP67 RLK39-8-800/31/40A/116
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pepperl + Fuchs |
| Response time | 20ms |
| Light Source | Infrared LED |
| Detection range | 800 mm |
| Model | RLK39-8-800/31/40A/116 |
| IP Rating | IP67 |
| Housing Material | Polybutylene Terephthalate |
| Temp. Range | -25 → +55°C |
| Output type | Relay |
| Series | RLK39 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Diffuse |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CCC, CE, EAC |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Block |
| 2M DIR. DET. NPNBrand | NEUTRAL |
| Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 2 m, PNP, IP67Brand | Pepperl + Fuchs |
Key Features
- Detection range up to 800 mm for versatile sensing applications.
- Robust polybutylene terephthalate housing providing IP67 protection against dust and water.
- Operates on maximum 240V AC/DC voltage with a maximum current rating of 3A.
- Infrared LED light source ensures precise detection with response time of 20 ms.
- Adjustable sensing range via potentiometer for customized use.
- Operating temperature range from -25°C to 55°C supports varied environments.

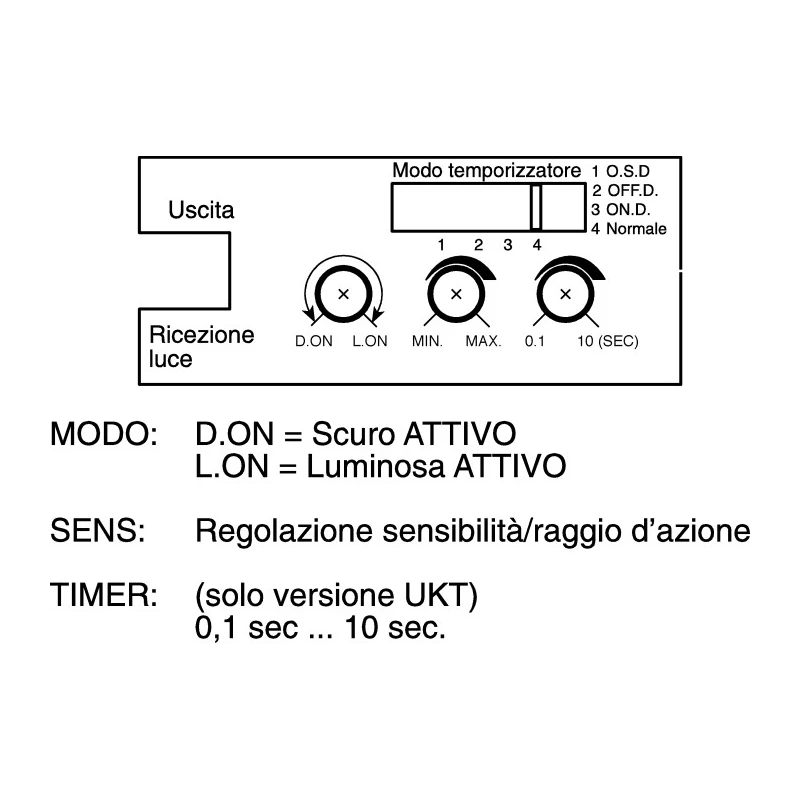

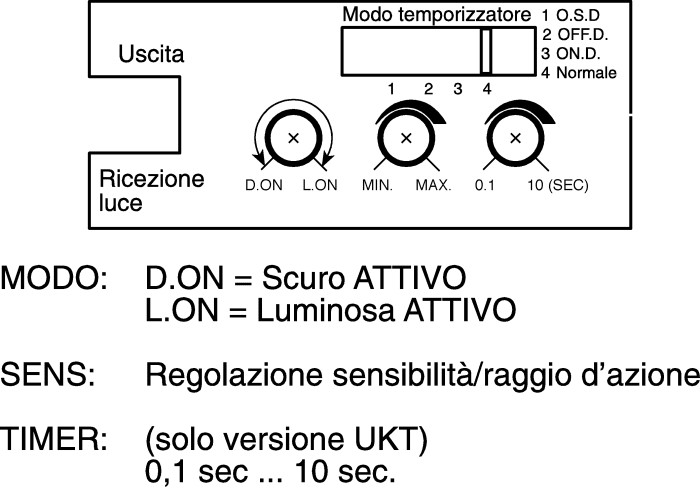

- Light-on/dark-on selectable operation and LED status display for easy monitoring.
- Compliance with CCC, CE, and EAC standards for assured quality.
Product Description

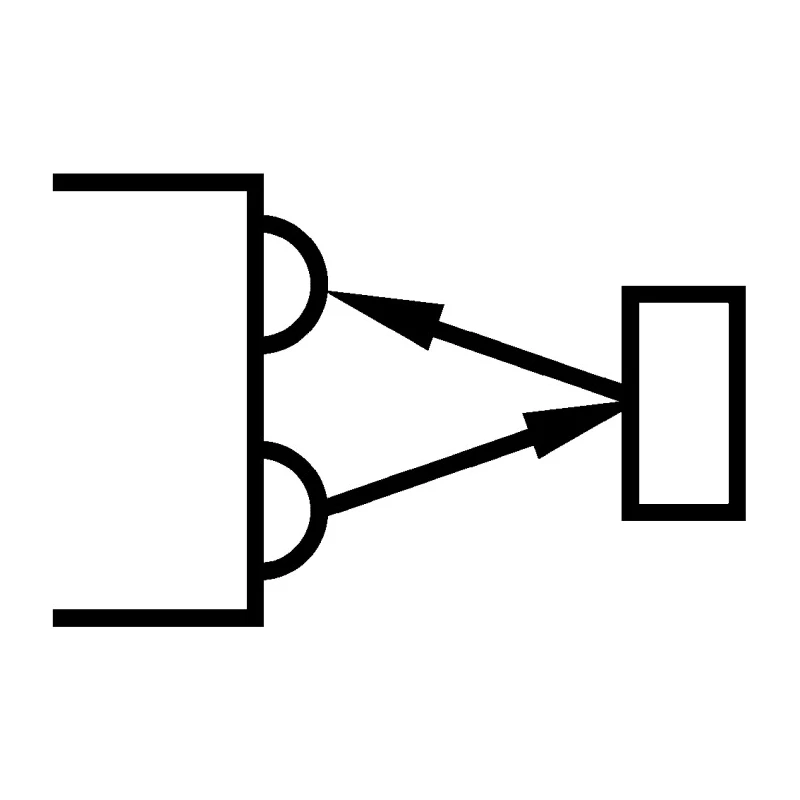

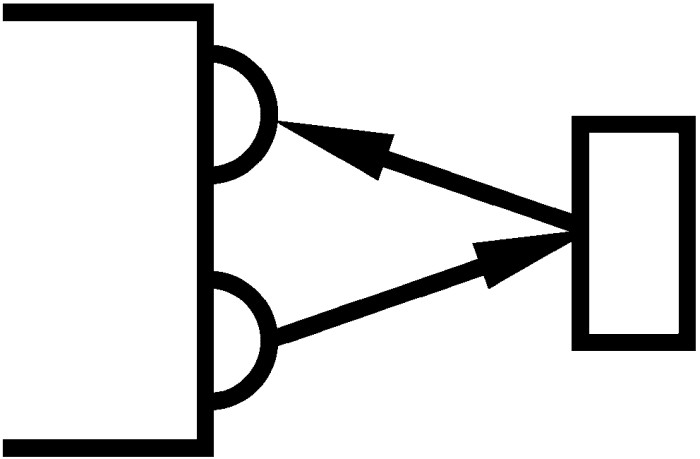

The Pepperl + Fuchs RLK39-8-800/31/40A/116 is a diffuse Photoelectric Sensor designed for reliable object detection in automation and control applications. Featuring a block sensor style and relay output, it utilizes an infrared LED light source with a detection range of 800 mm, making it suitable for precise sensing tasks across industrial environments.
The sensor's durable polybutylene terephthalate housing offers an IP67 rating, ensuring protection against dust ingress and water immersion, ideal for harsh operating conditions. It supports operating voltage up to 240V AC/DC and can handle a maximum current of 3A, providing robust electrical performance. The sensing range is adjustable via a potentiometer, allowing flexible tuning to application needs.
Operating temperature spans from -25°C to 55°C, accommodating diverse environmental requirements. Operation modes include selectable light-on or dark-on detection with LED status and receiving indicators to facilitate diagnostics and setup. This device complies with internationally recognized safety and quality standards including CCC, CE, and EAC certifications, ensuring dependable performance and regulatory adherence.
Its terminal compartment design allows for secure and efficient wiring installation. The RLK39 series sensors are widely used in industrial automation, manufacturing, safety monitoring, and process control scenarios where precise and reliable object detection is essential.
Detection range adjustable by potentiometer for precise application adaptation. Robust IP67 rated polybutylene terephthalate housing for reliable protection. Select between light-on or dark-on sensing output modes. Infrared LED light source for accurate and fast response detection.
Wide operating temperature range suitable for varied industrial conditions. Relay output capable of switching up to 3A current at 240V AC/DC. Includes LED display indicators for operational status and ease of troubleshooting.
Complies with CCC, CE, and EAC standards for assured quality and safety. Designed for use in automation, control gear, and sensor integration applications. Explore the complete range of sensors and automation components at EnvMart to enhance your industrial and commercial projects with quality Pepperl + Fuchs products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is up to 800 mm, making it suitable for various sensing applications.
It operates on a maximum voltage of 240V AC/DC, providing flexibility for different electrical systems.
The response time for this unit is 20 ms, allowing for quick detection of objects.
This model has an IP67 rating, ensuring protection against dust and water immersion.
The housing is made of polybutylene terephthalate, which contributes to its durability and IP67 rating.
It can operate within a temperature range of -25°C to 55°C, accommodating diverse environmental conditions.
The RLK39-8-800/31/40A/116 features a relay output capable of switching up to 3A current.
It offers light-on and dark-on selectable operation modes, allowing for customized detection settings.
It complies with CCC, CE, and EAC standards, ensuring quality and safety in its operation.
The sensing range can be adjusted via a potentiometer, allowing for precise tuning to application needs.
This model is widely used in industrial automation, manufacturing, safety monitoring, and process control applications.

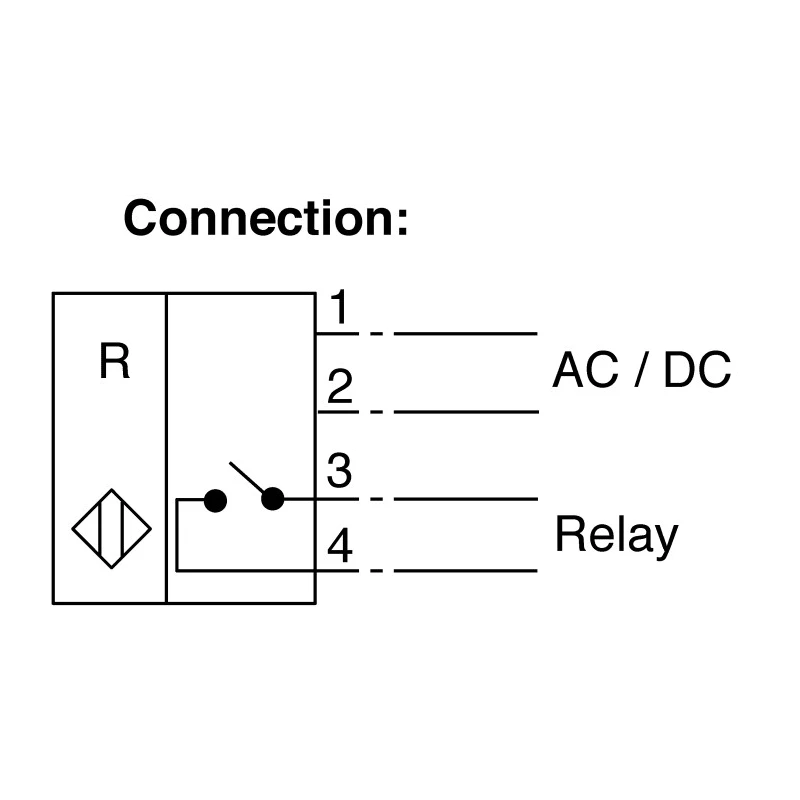

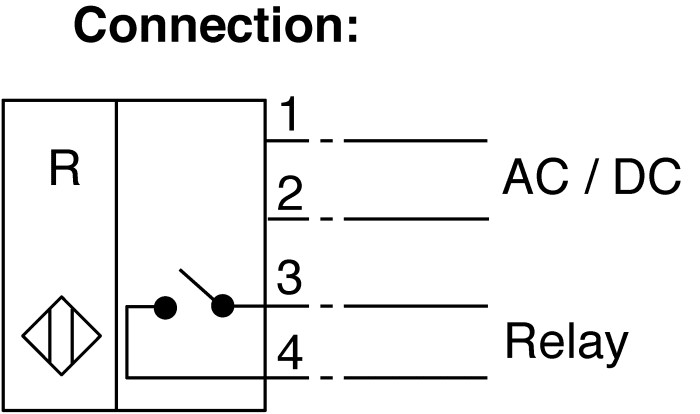

The terminal compartment is designed for secure and efficient wiring installation, facilitating easy setup.
