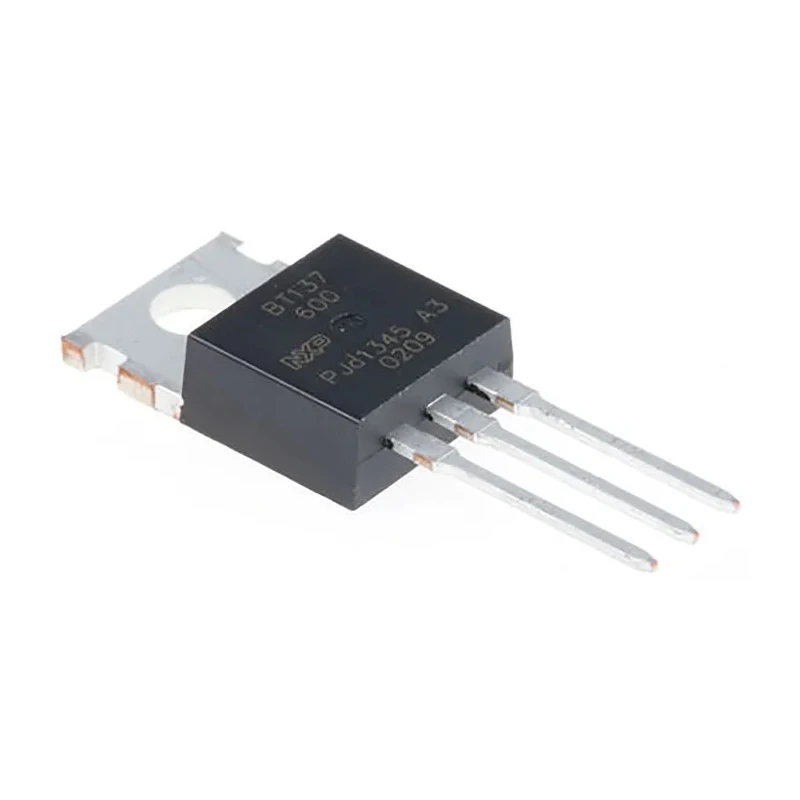

NXP Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.5 V BT137-600,127

NXP BT137-600,127 Through Hole 3-Pin TRIAC is designed for controlling AC loads with a peak repetitive voltage rating of 600 V and a gate trigger voltage of 1.5 V. It is ideal for industrial and commercial applications requiring reliable AC switching.

The device features a TO-220 package suitable for through hole mounting, enabling sturdy installation in electronic circuits. It supports an average on-state current of 8 A and can withstand surge currents up to 71 A, making it capable of handling transient loads safely.

Its electrical characteristics include a maximum gate trigger current of 70 mA and a gate trigger voltage of 1.5 V. The TRIAC operates reliably in temperatures ranging from -40°C up to 125°C, suitable for harsh environmental conditions.

With a compact height of 9.4 mm and length of 10.3 mm, it fits well in space-constrained designs. It has a repetitive peak reverse voltage of 600 V and peak on-state voltage of 1.65 V, ensuring voltage tolerance and efficiency.

This product complies with RoHS environmental standards, guaranteeing safe use in commercial, industrial, and HVAC systems for AC load switching and control. Rated average on-state current of 8 A for efficient load control.

TO-220 package type suitable for through hole mounting. Maximum surge current rating of 71 A for transient load handling. Maximum gate trigger current of 70 mA and gate trigger voltage of 1.5 V. Operating temperature range from -40°C to 125°C for robust performance.

Compact dimensions with height 9.4 mm and length 10.3 mm. Repetitive peak reverse voltage of 600 V ensures safe voltage tolerance. Complies with RoHS directive for environmental safety. Single configuration TRIAC with 3 pins for easy integration into AC circuits.

Maximum holding current of 20 mA supporting reliable switching. Explore more semiconductor and TRIAC components at EnvMart for your electronic design and manufacturing needs.
