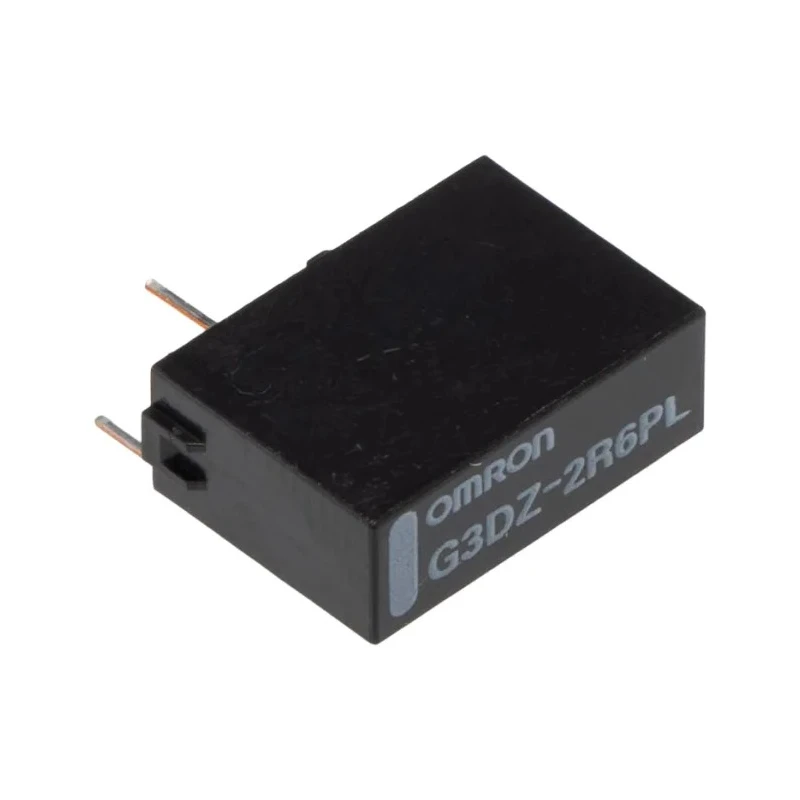

Omron G3 Series Solid State Relay, MOSFET PCB Mount, 90 A Load Current, 264 V AC Load Voltage, 5 V DC Control G3DZ-2R6PL DC5

Omron G3DZ-2R6PL DC5 is a high-performance MOSFET Solid State Relay designed for reliable and efficient switching of electrical loads up to 90 amperes and 264 volts AC. Featuring a through-hole PCB mounting configuration, it offers excellent integration flexibility for automation, industrial control, and electronic signal switching applications.

This solid state relay operates with a control voltage range from 0 V DC minimum to 5 V DC maximum, activating the output MOSFET switch to handle high current AC loads with minimal conduction resistance of 2.4 ohms. Its robust design supports a wide operational temperature range (-30°C to 100°C), ensuring stable performance in harsh industrial environments.

The device includes protective features such as an overvoltage absorption circuit and built-in input resistance, contributing to circuit longevity and noise reduction. It is capable of switching both full and half wave AC currents and outputs minimal leakage current, lessening energy waste and improving overall safety.

Compact physical size (17.5 mm by 12.5 mm by 6.5 mm) makes it suitable for space-constrained applications within electrical panels and control boards. The single pole normally open (SPNO) contact configuration is ideal for signal switching and power control tasks.

These attributes make the Omron G3DZ-2R6PL DC5 solid state relay particularly well-suited for industrial automation, process control, manufacturing systems, HVAC controls, and laboratory equipment where reliable high-current switching is critical.

Rated maximum load current of 90 amperes for high power switching. Supports maximum load voltage up to 264 volts AC for versatile applications. MOSFET output type ensures efficient switching performance. PCB mount through-hole design for easy integration into electronic assemblies.

On-state resistance of 2.4 ohms for low power loss during conduction. Wide operating temperature range from -30°C to 100°C for durable operation. Low off-state leakage current of 10 microamperes to minimize standby power loss.

Contact configuration is Single Pole Normally Open (SPNO) suitable for control circuits. Compact size for space-saving electrical designs. Includes input resistor and overvoltage absorption circuit for improved reliability.

Set includes one Omron G3DZ-2R6PL DC5 MOSFET PCB mount Solid State Relay. Browse EnvMart for related control and automation components.
