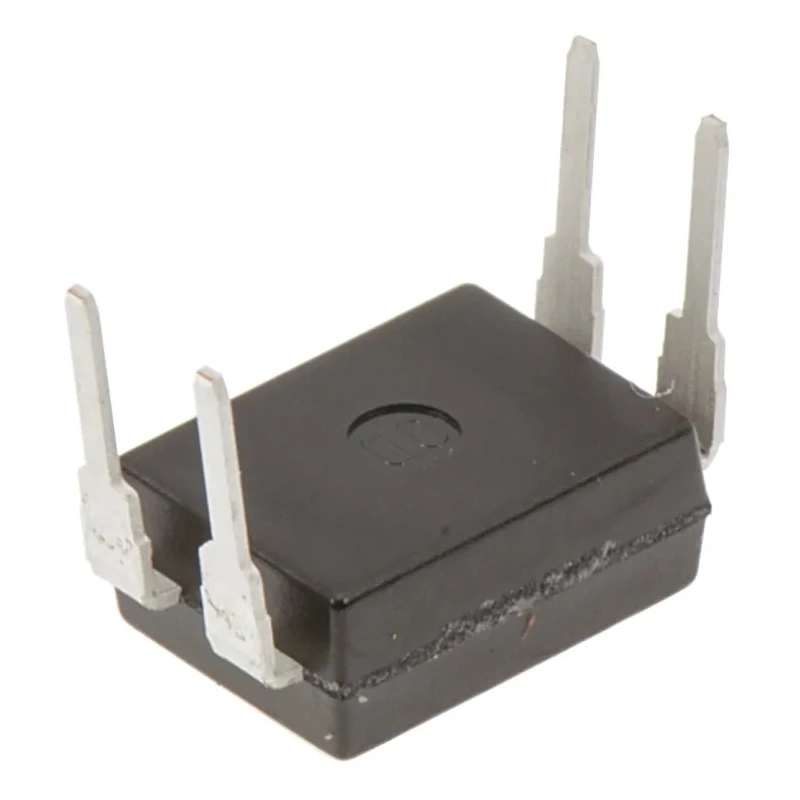

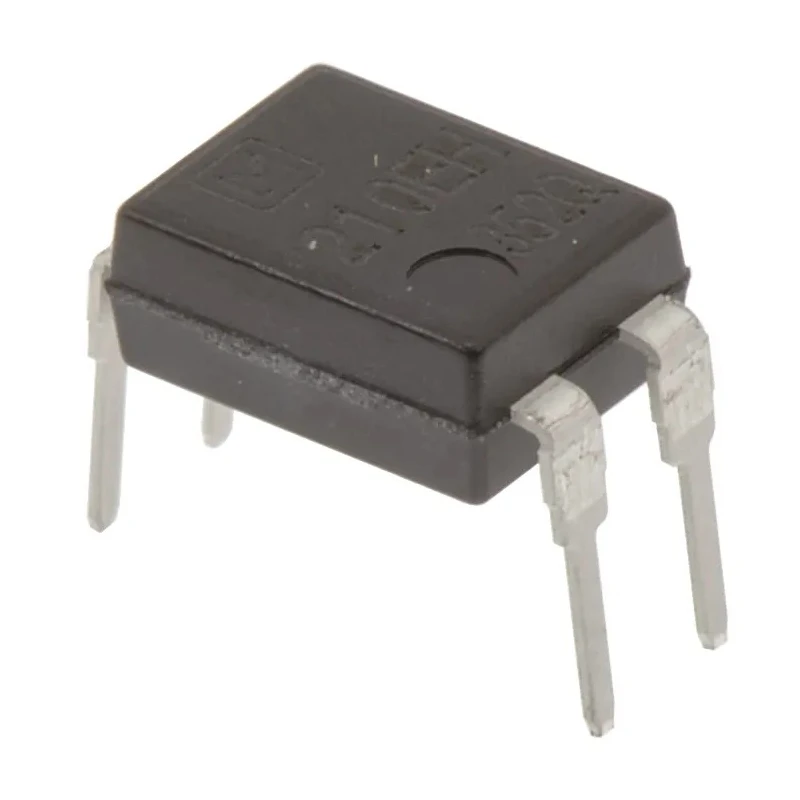

Panasonic DC Input Optocoupler Through Hole 4-Pin DIP AQY210EH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Model | AQY210EH |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | MOSFET |
| Series | AQY2xxEH |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL (Recognised) UL1577, BSI EN62368-1, CSA (Certified) |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Fall Time | 0.04μs |
| Panasonic AQY414EH DC Input Optocoupler, Through Hole, 4-Pin DIPBrand | Panasonic |
Key Features
- Operates with a maximum forward voltage of 1.5V for efficient input control.
- Features high sensitivity and low on-resistance for optimal switching performance.
- Designed for a wide operating temperature range from -40°C to 85°C.
- Low off-state leakage current reduces power loss during standby.
- Typical fall time of 0.04 microseconds enables fast switching capabilities.
- Isolated input to output withstanding up to 5kVrms isolation voltage for safety.
- Packaged in reliable tape and reel form for automated assembly.
- Single channel device ideal for various control applications.
Product Description
Panasonic AQY210EH DC Input Optocoupler is a compact solid state relay device with a 4-pin Dual Inline Package (DIP) designed for through hole mounting. It utilizes a MOSFET output type providing efficient switching and isolation capabilities.
The device operates with a maximum forward voltage of 1.5V and supports an input current of up to 50mA DC. It exhibits a low off-state leakage current ensuring minimal power consumption when inactive. Typical fall time of 0.04 microseconds allows for fast response in control circuits.
This optocoupler offers isolation voltage rated at 5kVrms, making it suitable for accurate and safe electrical separation in various industrial and commercial electronics. Its operating temperature range from -40°C to 85°C supports demanding environments.
Common application scenarios include controlling diverse loads such as test and measurement instruments, data communication systems, sensors, and power supply equipment. Its high sensitivity and low on-resistance characteristics enhance overall system efficiency.
Packaged in tape and reel format, the AQY210EH facilitates automated assembly processes in manufacturing settings. The product is UL Recognised, ensuring it meets necessary safety standards for use in North American markets.
Panasonic's AQY series solid state relays are trusted in electronic components for reliable and durable performance in industrial electronics, commercial automation, and laboratory applications.
Operates with maximum forward voltage of 1.5V. MOSFET output for efficient switching. Wide temperature range from -40 to 85°C. Typically 0.04μs fall time enables fast switching. 5kVrms isolation voltage ensures safety. Packaged in tape and reel for automated use.
Single channel 4-pin DIP package for easy PCB mounting. Low off-state leakage current reduces power loss. UL Recognised for Canada & US market compliance.
Explore more Panasonic Optocouplers and solid state relays for enhanced electronic control solutions in industrial, laboratory, construction, and manufacturing sectors. Browse EnvMart’s comprehensive range of electronics components for your technical and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.5V.
It supports a DC input current type.
The typical fall time is 0.04 microseconds, allowing for fast switching capabilities.
It has an isolation voltage rating of 5kVrms, ensuring safe electrical separation.
The operating temperature range is from -40°C to 85°C.
This model features a single channel design.
It utilizes a MOSFET output type for efficient switching.
It is packaged in tape and reel format, suitable for automated assembly.
It is UL Recognised and complies with UL1577, BSI EN62368-1, and CSA certifications.
The maximum input current is 50mA.
It is designed for through hole mounting.
The AQY210EH is manufactured in India.
