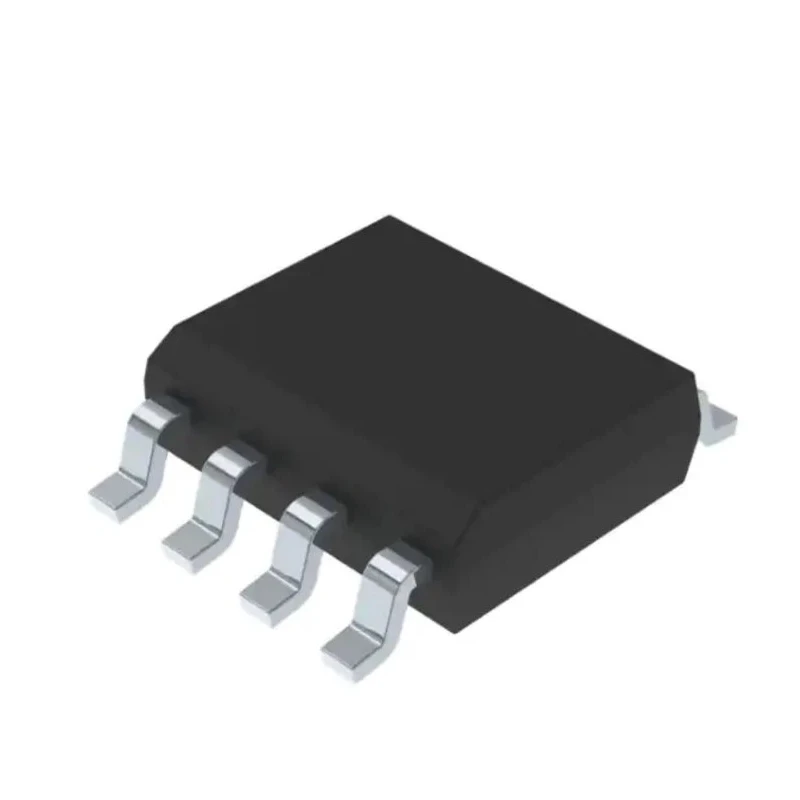

STMicroelectronics Operational Amplifier 1 MHz Gain Bandwidth Product, 8-Pin SO-8 Package TL062ACDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TL062ACDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TL062A |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 100 pA |
Key Features
- High-speed JFET input operational amplifier designed for low power consumption.
- Operates within a wide supply voltage range from 6V to 36V.
- Offers low input bias and offset currents for precision applications.
- Includes short-circuit output protection and internal frequency compensation.
- Wide operating temperature range from 0°C to 70°C.
- Compact SO-8 surface mount package measuring 5mm length, 4mm width, and 1.75mm height.
- High slew rate of 3.5 V/μs enables fast response times.
- Suitable for industrial, electronic component design, measurement, and control systems.
Product Description
STMicroelectronics TL062ACDT is a high-speed JFET input operational amplifier that incorporates well-matched high-voltage JFET and bipolar transistors within a monolithic integrated circuit. It delivers a gain bandwidth product of 1 MHz, making it ideal for precision low power electronic circuits requiring high performance.
This dual-channel operational amplifier supports a wide supply voltage range from 6V minimum to 36V maximum, suitable for diverse industrial and electronic applications. The device is housed in a compact 8-pin SO-8 surface mount package measuring 5 mm in length, 4 mm in width, and 1.75 mm in height.
The TL062ACDT features low input bias current at 200 picoamperes and an input offset voltage of only 3 millivolts. It provides short-circuit output protection and is internally frequency compensated to facilitate stable operation without external components. Its high slew rate of 3.5 V/μs ensures rapid signal response critical in measurement and control system designs.
The operating temperature range from 0°C to 70°C allows it to function reliably in standard industrial environments. Conforming to RoHS standards, this amplifier supports environmentally responsible design initiatives.
Applications include industrial automation, laboratory instrumentation, audio amplification, signal conditioning, and various electronic equipment requiring accurate amplification of analog signals.
High-speed JFET input for low power and noise. Wide supply voltage from 6V to 36V. Low input bias current and offset voltage for precise operation. Short-circuit output protection enhances reliability. Compact SO-8 surface mount package.
Frequency compensated for stable performance. High slew rate of 3.5 V/μs for fast response. RoHS compliant for environmental safety. Dual-channel operation in a single IC. Explore more Operational Amplifiers and electronic components on EnvMart for all your design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL062ACDT has a gain bandwidth product of 1 MHz, making it suitable for precision low power electronic circuits that require high performance.
This model operates within a wide supply voltage range from 6V to 36V, accommodating various industrial and electronic applications.
The input bias current for this operational amplifier is 200 picoamperes, which contributes to its precision in applications.
The input offset voltage of the TL062ACDT is 3 millivolts, ensuring accurate amplification of signals.
The maximum operating temperature for the TL062ACDT is 70°C, allowing it to function reliably in standard industrial environments.
This operational amplifier is housed in a compact SO-8 surface mount package measuring 5 mm in length, 4 mm in width, and 1.75 mm in height.
The TL062ACDT features dual-channel operation within a single integrated circuit.
The slew rate of the TL062ACDT is 3.5 V/μs, enabling fast signal response which is critical for measurement and control systems.
Yes, the TL062ACDT conforms to RoHS standards, supporting environmentally responsible design initiatives.
This operational amplifier uses a surface mount type, specifically designed for compact circuit designs.
This model is suitable for applications in industrial automation, laboratory instrumentation, audio amplification, and signal conditioning.
The TL062ACDT includes short-circuit output protection and is internally frequency compensated for stable operation without external components.
