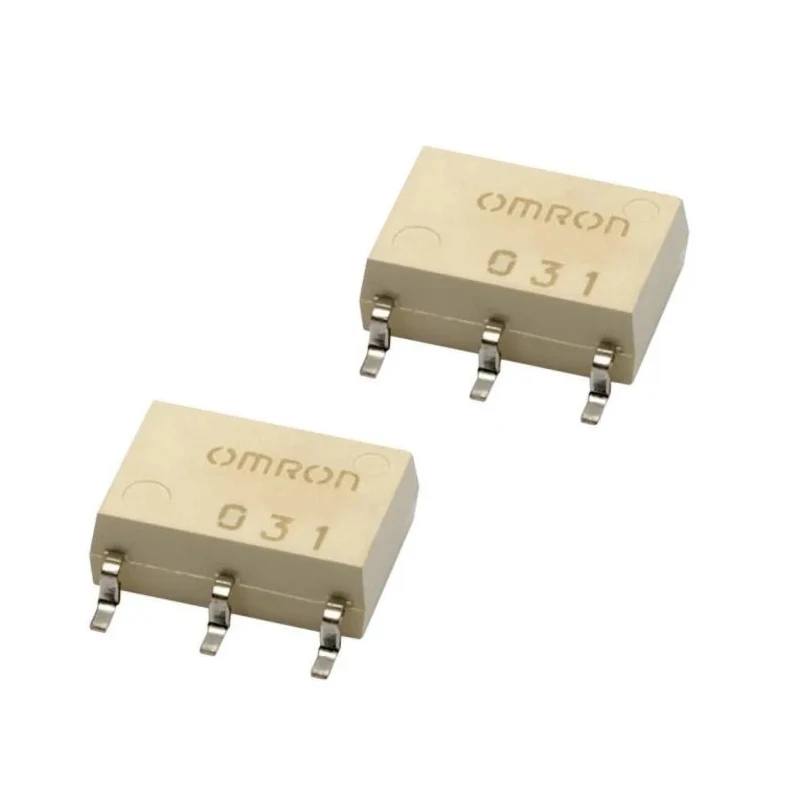

Omron MOSFET Solid State Relay Surface Mount 8 A Load 60 V Load G3VM
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 6.3mm |
| Model | G3VM |
| Width | 4.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | G3VM |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPST |
| Capacitance | 750pF |
| Minimum Operating Temperature | 40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 8A |
| Standards/Approvals | UL Recognised |
| Maximum Load Voltage | 60V |
| On State Resistance | 0.07Ω |
Key Features
- MOSFET relay technology offers low ON resistance and reduced switching noise.
- Achieves high isolation between input and output up to 2,500 Vrms standard.
- Surface mount 6-pin SOP package with compact dimensions 6.3mm length and 4.4mm width.
- Operates reliably between 40°C minimum and 125°C maximum ambient temperature.
- UL recognized standard ensuring compliance with quality and safety norms.
- On state resistance of 0.07 ohms reduces power loss during conduction.
- Capacitance is 750 pF for stable switching performance.
- Single pole single throw (SPST) contact configuration for straightforward switching needs.
Product Description
Omron G3VM series solid state relays utilize MOSFET output devices to provide superior switching performance with ultra low ON resistance of 0.07 ohms. Packaged in compact SOP 6-pin surface mount format (6.3 mm length x 4.4 mm width), these relays offer a maximum load current of 8 A at up to 60 V load voltage.
This MOSFET relay technology enables high input-output isolation through optical coupling, achieving a standard isolation voltage of 2,500 Vrms. This ensures reliable operation in sensitive industrial, laboratory, and automation control environments.
The relay supports a minimum operating temperature of 40°C and a maximum operating temperature of 125°C, making it suitable for a wide range of harsh operating conditions. Its single pole single throw (SPST) configuration simplifies integration in control circuits.
The relay is UL recognized, confirming compliance with international safety and quality standards. Because MOSFET relays have no mechanical contacts, they eliminate switching noise and improve reliability and lifetime in high-speed switching applications.
MOSFET relay technology reduces switching noise during operation. Low ON resistance significantly improves efficiency and reduces heat generation. High input-output isolation protects sensitive control electronics. Compact surface mount SOP package enables dense PCB assembly.
UL recognized certification ensures product quality and safety. Suitable for industrial automation, HVAC control systems, and signal conditioning purposes. Reliable operation across a wide temperature range enhances versatility.
Manufactured in Japan to stringent quality standards. Single pole single throw contact configuration simplifies usage.
This Omron G3VM Solid State Relay is ideal for applications requiring long operational life, low driving current, and high-speed switching in commercial, industrial, and scientific automation equipment. It is provided ready for quick surface mounting, facilitating manufacturing efficiency in electronics assembly lines.
Explore more in the Electronics & Electricals category for advanced relays and contactors to meet your control and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 8 A.
The on state resistance is 0.07 ohms, which helps reduce power loss during conduction.
It operates reliably between a minimum temperature of 40°C and a maximum temperature of 125°C.
The capacitance of this relay is 750 pF, which contributes to stable switching performance.
It features a single pole single throw (SPST) contact configuration, simplifying integration in control circuits.
The relay has compact dimensions of 6.3 mm in length and 4.4 mm in width.
The maximum load voltage for this model is 60 V.
Yes, this relay is UL recognized, ensuring compliance with international safety and quality standards.
This model supports surface mounting, which is suitable for dense PCB assembly.
It utilizes MOSFET technology, which offers low ON resistance and reduced switching noise.
It is suitable for applications in industrial automation, HVAC control systems, and signal conditioning.
This relay is manufactured in Japan to stringent quality standards.
