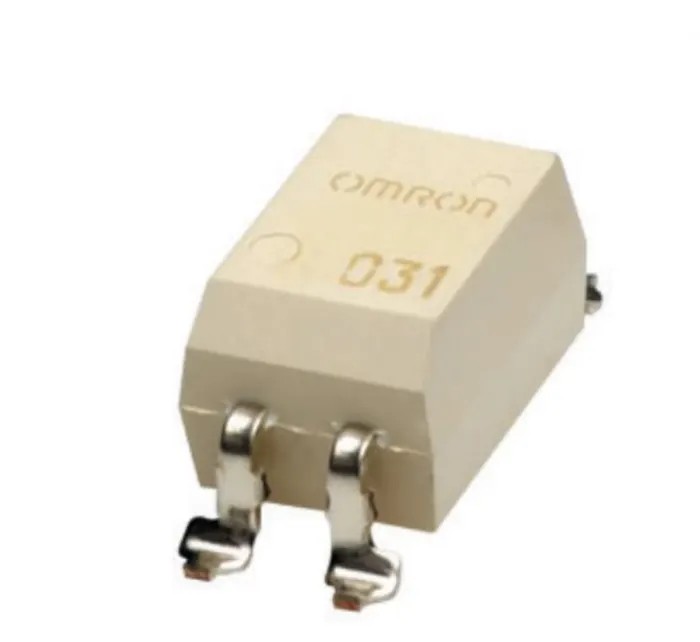

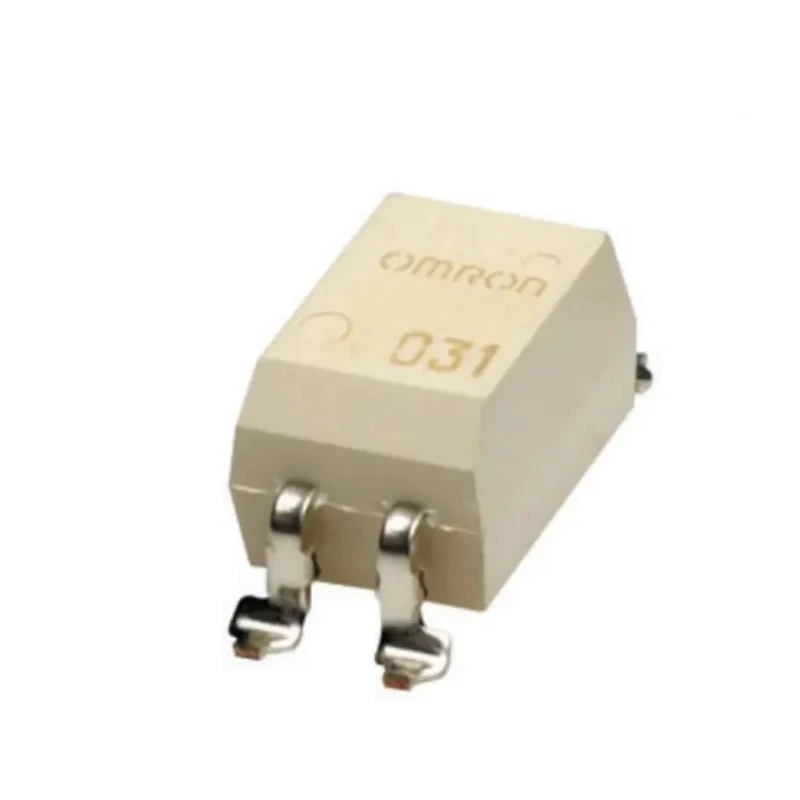

Omron Solid State Relay Surface Mount 2 A Load 100 V Load G3VM

Omron G3VM Solid State Relay (model G3VM) is a high-quality surface mount relay designed to switch loads up to 2 A with a maximum load voltage of 100 V. This MOSFET relay uses a DIP 4-pin package offering low ON resistance and superior switching capacity comparable to mechanical relays.

The relay provides excellent isolation between input and output through its operational principle of converting input voltage into light and transferring the signal optically. It delivers a standard isolation voltage of 2500 Vrms, with enhanced versions providing up to 5000 VAC for specialized applications.

Unlike electromechanical relays, the G3VM uses MOSFET technology that eliminates switching noise and greatly reduces the dead zone compared to triacs. This characteristic ensures the micro analog input signals are transferred without waveform distortion.

Key features include ultra-small size, lightweight design, low driving current, small leakage current of 1 μA, high shock resistance, and high-speed switching capability. It operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for diverse industrial environments.

The device has a SPST contact configuration with PCB terminals and supports AC/DC switching functions. Its capacitance is approximately 110 pF, ensuring stable electrical performance in signal conditioning and automation controls.

This Solid State Relay is ideal for industrial automation, electrical control systems, manufacturing machines, and other applications requiring compact, reliable, and noise-free switching components. Its compliance with RoHS directives underscores environmental safety.

Features low on resistance with MOSFET output type for efficient switching. Offers excellent input-output isolation with 2500 Vrms standard isolation voltage. Operates within a temperature range from -40°C to 85°C. Designed for low driving current and long operational life without mechanical contacts.
