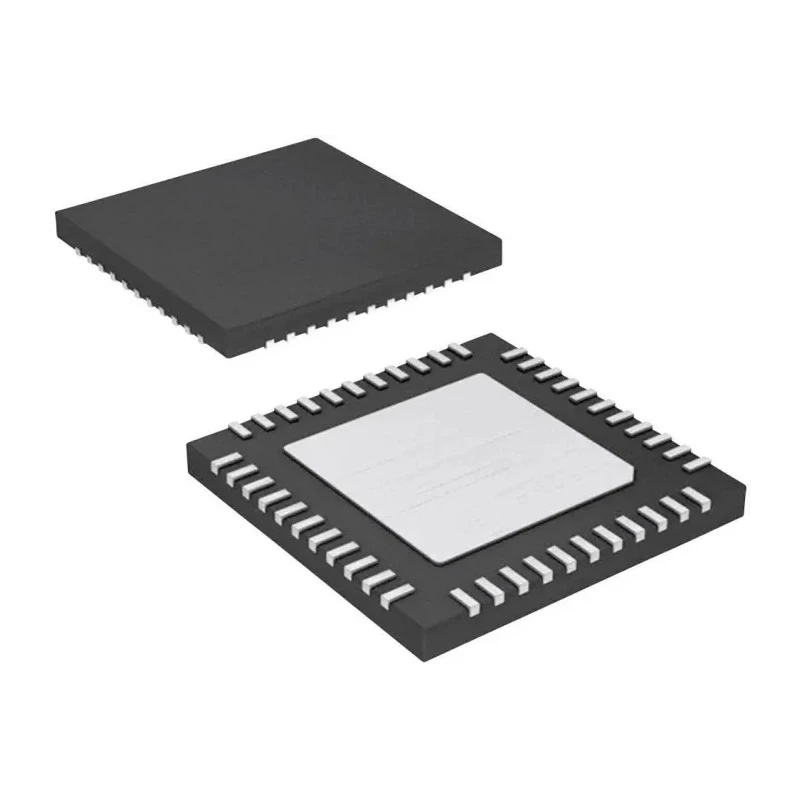

Renesas Electronics USB Controller, 1-Channel 12 Mbps, USB 3.0, 3.3V-3.6V, 68-Pin QFN UPD720201K8-701-BAC-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 850μm |
| Length | 8mm |
| Model | UPD720201K8-701-BAC-A |
| Mount Type | Surface |
| Series | UPD720201 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | USB Host Controller IC |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB debugging capability on all super speed ports |
| Pin Count | 68 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 12Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 3.0 |
| Supported Protocols | USB 3.0 |
Key Features
- Operates at supply voltages ranging from 3.3V to 3.6V.
- Features a 68-pin QFN package suitable for surface mounting.
- Supports USB debugging on all super speed ports.
- Compliant with xHCI 1.0 and USB 3.0 specifications.
- Compatible with PCI Express base specification revision 2.0.
- Temperature range from 0°C to 85°C ensures reliable operation.
- Designed for mobile computing devices including laptops and notebooks.
- Compact footprint reduces power consumption and supports efficient design.
Product Description
Renesas Electronics UPD720201K8-701-BAC-A is a USB Controller designed for high-performance USB 3.0 interfaces, supporting a data rate of 12 Mbps over a single channel. This USB Host Controller IC is built to the USB 3.0 and xHCI 1.0 standards, ensuring compatibility with modern USB devices and systems.
Operating at dual supply voltages of 3.3 V minimum and 3.6 V maximum, this IC comes in a compact 68-pin QFN surface-mount package with a height of 850 micrometers and a length of 8 mm. It allows designers to integrate USB 3.0 support into mobile computing devices such as laptops and notebooks while reducing power consumption and saving PCB space.
The UPD720201K8-701-BAC-A supports USB debugging capability on all super speed ports and legacy USB functions, making it versatile for development and user applications. It complies with PCI Express base specification revision 2.0 and supports latency tolerance reporting, facilitating express card standard implementations.
This device operates reliably in a temperature range of 0°C to 85°C and does not include ESD protection, which designers should consider in overall system design. Operates under USB 3.0 and xHCI 1.0 compliant protocols. Provides a low power consumption solution with a small package size.
Surface-mount package type with 68 pins enables compact design. Supports PCI Express base specification revision 2.0 and express card standards. Facilitates USB debugging on all USB super speed ports. Measures 8 mm in length and 850 μm in height for space-constrained designs.
Suitable for use in mobile computing devices such as notebooks and laptops. Provides compatibility with USB legacy functions for broader device support.
This Renesas Electronics product is ideal for industrial, computer hardware, and electronic component applications where USB 3.0 interface is required with efficient power usage and space saving design. It supports integration into various high-speed USB host designs across multiple sectors including industrial automation, computing, and embedded systems.
Explore a wide range of USB Interface ICs and related components on EnvMart for diverse electronics project and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate supported by this USB controller is 12 Mbps.
This model operates reliably within a temperature range of 0°C to 85°C.
It requires a supply voltage ranging from 3.3V to 3.6V.
The QFN package of this model has 68 pins.
This unit supports surface mounting.
It complies with USB 3.0 and xHCI 1.0 protocols.
The controller measures 8 mm in length and 850 μm in height.
Yes, it is compatible with PCI Express base specification revision 2.0.
It is designed for use in mobile computing devices, including laptops and notebooks.
Yes, it supports USB debugging capability on all super speed ports.
The series name for this USB Host Controller IC is UPD720201.
It is classified as a USB Host Controller IC.
