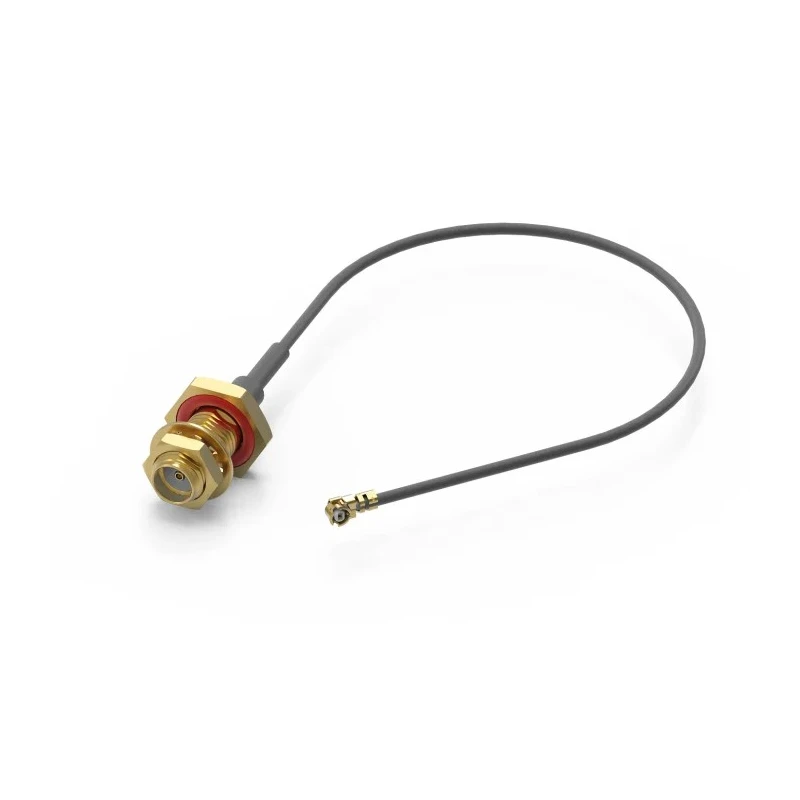

Wurth Elektronik SMA Series 300 mm UMRF Coaxial Cable 50 Ω Black Terminated 636208100300
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Cable Length | 300mm |
| Series | SMA |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Beryllium Copper Alloy |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Fluorinated Ethylene Propylene |
| Attenuation | 1.95 dB |
| Standards/Approvals | RoHS, REACH, MIL-STD-348 |
| Characteristic Impedance | 50Ω |
| Jacket Colour | Black |
| Fire Behaviour | VW-1 |
| Conductor Type | Solid |
| Terminated/Unterminated | Terminated |
| Coaxial Type | UMRF |
Key Features
- The cable length is 300 mm with an outside diameter of 1.37 mm.
- It supports an operating voltage of 200 Vrms and operates from -40°C to 90°C.
- The cable features a solid conductor made of beryllium copper alloy for durability.
- The jacket material is fluorinated ethylene propylene providing excellent insulation and fire behavior rated VW-1.
- The cable is RoHS and REACH compliant, meeting MIL-STD-348 standards for quality and safety.
- It offers low attenuation of 1.95 dB suitable for frequencies up to 6 GHz.
- The series is SMA with gold over nickel contact plating ensuring robust connectivity.
Product Description
Wurth Elektronik 636208100300 SMA Series coaxial cable is a high-quality, terminated cable designed for precision and reliability in electrical and networking applications. Measuring 300 mm in length, this black UMRF type coaxial cable has a characteristic impedance of 50 Ω to ensure efficient signal transmission. The cable is suitable for industrial, laboratory, and telecommunications use where stable and high-frequency signal integrity is critical.
The solid conductor is made of beryllium copper alloy which provides excellent conductivity and mechanical strength. The cable jacket is constructed from fluorinated ethylene propylene (FEP), delivering excellent chemical resistance and a VW-1 fire behavior rating, enhancing safety in challenging environments. Operating voltage is rated at 200 Vrms, with functionality assured between -40°C to +90°C, enabling use in a wide range of temperature conditions.
The cable meets important industry standards including RoHS, REACH, and MIL-STD-348, ensuring compliance with environmental and quality regulations. The SMA series features gold over nickel contact plating on both connectors, providing reliable and corrosion-resistant connections. This cable offers minimal signal attenuation of 1.95 dB, supporting frequencies up to 6 GHz, which makes it ideal for RF and microwave communications.
Designed for demanding electrical, automation, industrial, and telecommunications applications, this coaxial cable delivers robust performance for connecting networking devices, test equipment, antennas, and high-frequency electronic modules.
The cable length is 300 mm with an outside diameter of 1.37 mm. Support for operating voltage 200 Vrms and temperature range from -40° to 90°C. Solid beryllium copper alloy conductor for enhanced conductivity and durability.
Fluorinated Ethylene Propylene jacket material ensures chemical resistance and fire safety. RoHS and REACH compliant with MIL-STD-348 approval for industrial use. SMA series terminated cable with gold over nickel contact plating.
Low attenuation of 1.95 dB suitable for frequencies up to 6 GHz.
Explore our full range of high-performance Coaxial Cables and components for industrial, laboratory, telecommunications, and electrical engineering requirements with Wurth Elektronik products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length is 300 mm.
It has a characteristic impedance of 50 Ω, ensuring efficient signal transmission.
The maximum operating temperature is 90°C.
The conductor is made of beryllium copper alloy, while the jacket is constructed from fluorinated ethylene propylene (FEP).
This model offers a low attenuation of 1.95 dB, suitable for frequencies up to 6 GHz.
Yes, it is RoHS and REACH compliant and meets MIL-STD-348 standards for quality and safety.
The outside diameter of the cable is 1.37 mm.
The minimum operating temperature is -40°C.
This unit features SMA connectors with gold over nickel contact plating for robust connectivity.
It is designed for industrial, laboratory, and telecommunications applications where stable signal integrity is critical.
This model is a terminated coaxial cable.
The jacket material has a fire behavior rating of VW-1, enhancing safety in challenging environments.
