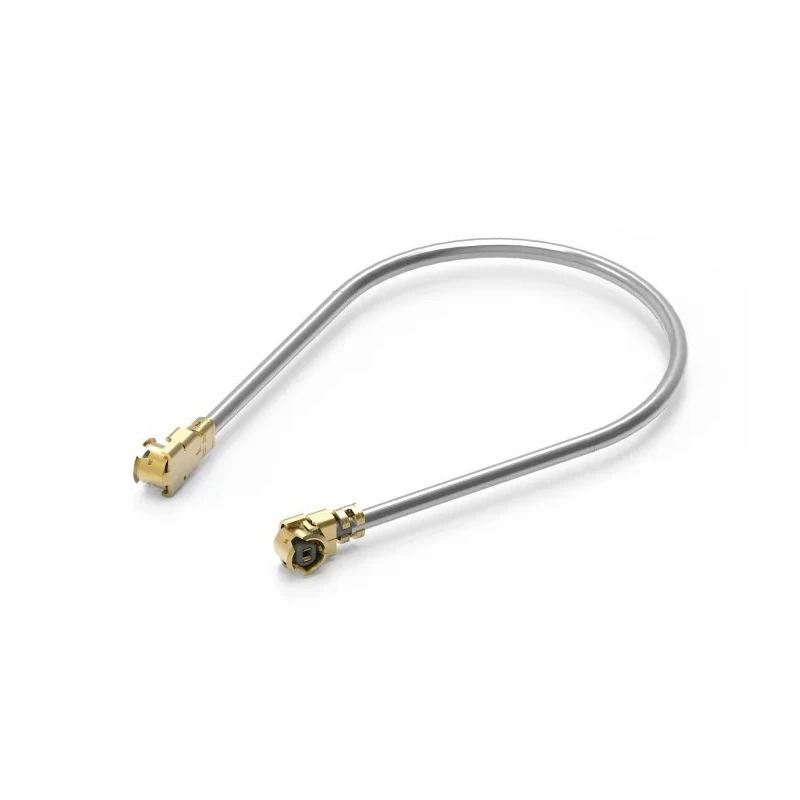

Wurth Elektronik WR-UMRF Series 400 mm UMRF Coaxial Cable 50 Ω, Grey, Terminated 636201050400

Wurth Elektronik 636201050400 WR-UMRF Series is a high-quality UMRF coaxial cable measuring 400 mm in length with terminated right angle UMRF plugs. Operating over a voltage of 200 Vrms, this coaxial cable is designed to deliver exceptional signal performance with a 50 Ω characteristic impedance.

The conductor is a solid phosphor bronze material that ensures excellent current conduction and durability. The cable jacket is made from Fluorinated Ethylene Propylene (FEP) material that provides chemical resistance and has a fire behavior rating of VW-1.

This cable is engineered to operate within a temperature range of -40°C up to +90°C, suitable for industrial, laboratory, communication, and manufacturing applications requiring reliable high-frequency data transmission.

The outside diameter of the cable is 1.13 mm, optimized for compact installation spaces. Attenuation is rated at 2.73 dB, and the cable supports frequencies up to 6 GHz with minimal insertion loss of 1.17 dB. Both connectors feature gold over nickel plating to resist corrosion and enhance signal quality.

Compliant with RoHS and REACH standards, this Wurth Elektronik coaxial cable ensures environmental safety and quality assurance. Its right angle termination facilitates low-profile connections in dense electronic assemblies.

Applications include networking equipment, RF modules, and automation systems where precision and durability are essential. Made in Taiwan, Province Of China, this cable series is part of Wurth Elektronik's WR-UMRF family known for excellent electrical and mechanical properties.

The cable length is precisely 400 mm, providing compact connectivity. It is terminated with UMRF right angle plugs on both ends. The jacket material is Fluorinated Ethylene Propylene (FEP) providing chemical and thermal resistance.

The conductor is solid phosphor bronze ensuring stable conductivity. Designed for operation from -40°C to 90°C with VW-1 fire behaviour rating. The cable outside diameter measures 1.13 mm for precise applications. Characteristic impedance is 50 Ω, suitable for high-frequency signal integrity.

Attenuation is 2.73 dB with insertion loss of 1.17 dB supporting frequencies up to 6 GHz. Gold over nickel plating ensures corrosion-resistant contacts. Complies with RoHS and REACH environmental standards. Explore more Coaxial Cables in the Wires & Cables category at EnvMart to find compatible and specialty cables for your industrial and communication needs.
