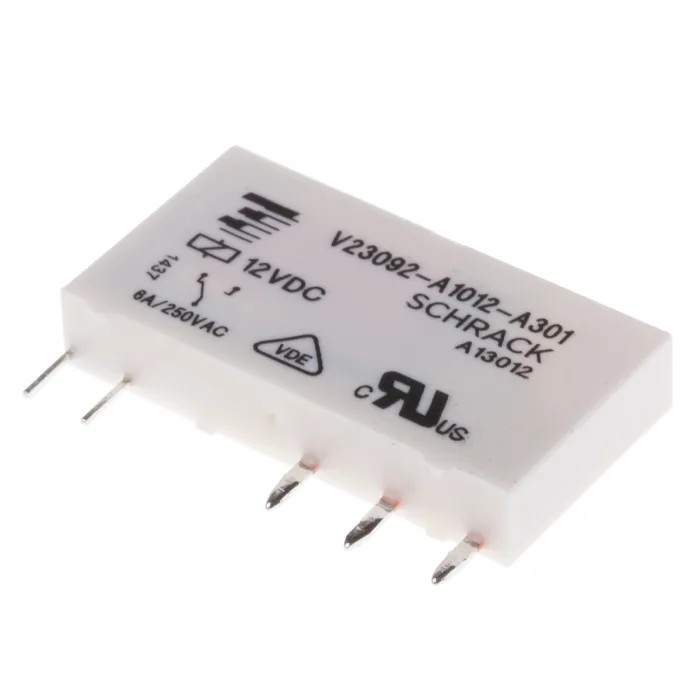

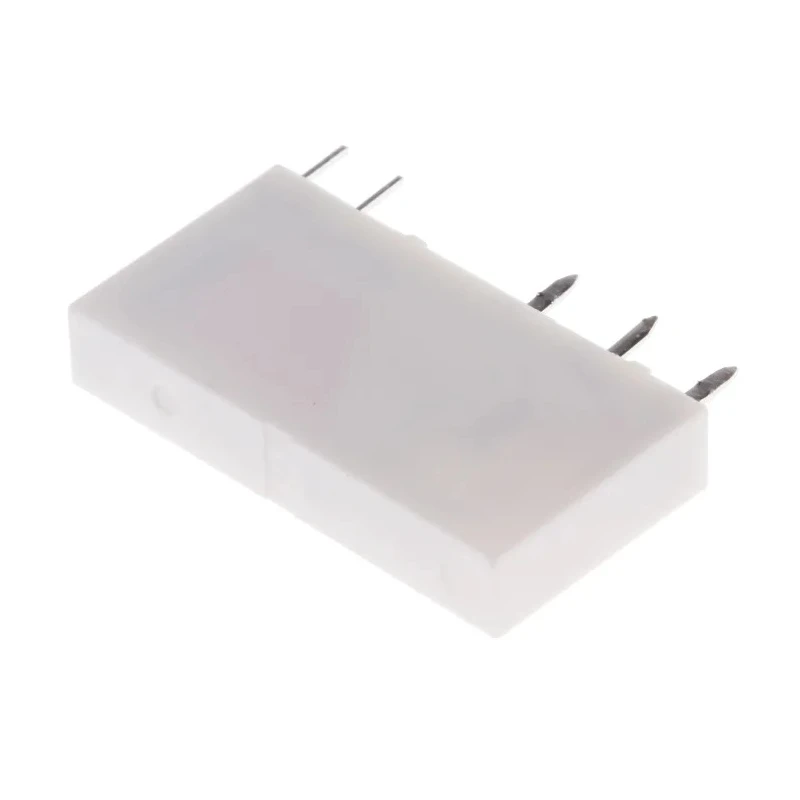

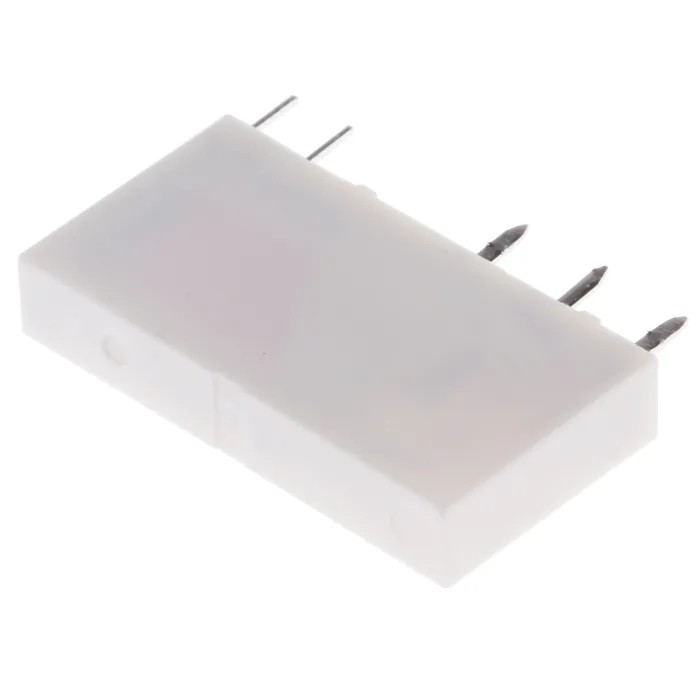

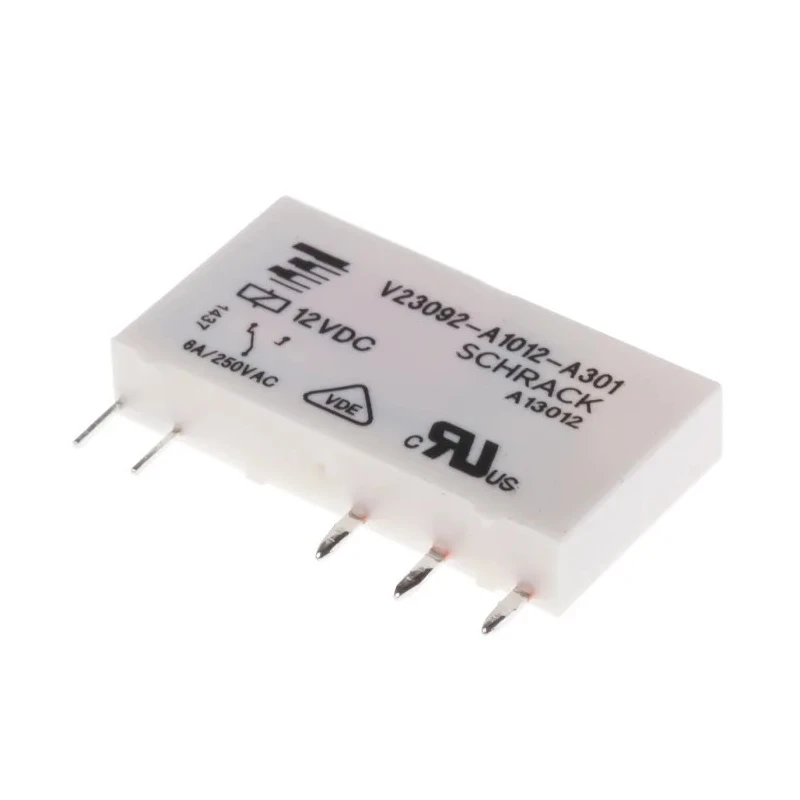

TE Connectivity PCB Power Relay, 12V DC Coil, 6A Switching Current, SPDT V23092A1012A301
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 28mm |
| Model | V23092A1012A301 |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SNR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 170mW |
| Isolation Coil To Contact | 4000Vac |
| High Coil sensitivity | 170mW |
Key Features
- High coil sensitivity with 170mW coil power for efficient operation.
- Compact and slim design at 5mm thickness for dense PCB mounting.
- Operating temperature range from -40°C to +85°C for versatile industrial applications.
- Silver alloy contact material ensures reliable conductivity and durability.
- Supports switching AC voltage up to 250V AC with a maximum isolation of 4000Vac.
- Designed for PCB mounting with solder terminals for secure connectivity.
- Compliance with cULus and VDE standards for safety and quality assurance.
Product Description
TE Connectivity V23092A1012A301 PCB Power Relay is a precision electrical component designed for high-performance switching applications. Featuring a 12V DC coil voltage and SPDT (Single Pole Double Throw) contact configuration, this relay is ideal for use in industrial automation, manufacturing, HVAC systems, and instrumentation.

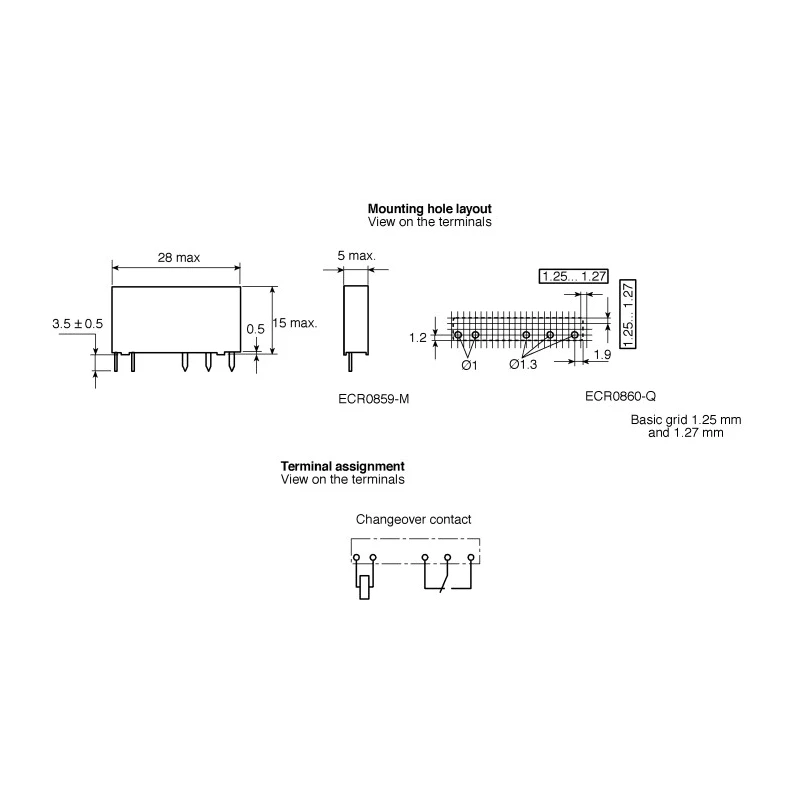

The relay's coil power of 170mW provides high sensitivity and energy-efficient activation. Its compact dimensions (28mm length, 15mm height, and 5mm thickness) allow integration in high-density printed circuit boards. The relay supports a switching current of 6A and can handle switching AC voltage up to 250V, making it suitable for a range of power relay duties.
The contact material utilizes silver alloy to ensure excellent electrical conductivity and long-term reliability under tough operating conditions. Its robust operating temperature range from -40°C to +85°C enables performance stability in harsh environments. The device also offers a notable isolation voltage of 4000Vac between coil and contact, meeting stringent safety and insulation standards.
Manufactured under stringent standards with approvals including cULus and VDE, this relay provides assured quality and compliance. It is mounted on PCBs using solder terminals, ensuring excellent mechanical fixation and electrical connections.
This SNR series power relay from TE Connectivity is engineered for reliable switching performance in industrial, laboratory, automation, and electrical control applications. Its slim profile and high coil sensitivity facilitate energy-efficient and space-saving design solutions.
High coil sensitivity with 170mW coil power for efficient operation. Compact and slim design at 5mm thickness for dense PCB mounting. Operating temperature range from -40°C to +85°C for versatile industrial applications.
Silver alloy contact material ensures reliable conductivity and durability. Supports switching AC voltage up to 250V AC with a maximum isolation of 4000Vac. Designed for PCB mounting with solder terminals for secure connectivity.
Compliance with cULus and VDE standards for safety and quality assurance. Dimensions: Height 15mm, Length 28mm, Width 5mm for space-efficient installations. Discover a wide range of Power Relays and electrical components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 6A.
The dimensions are 28mm in length, 15mm in height, and 5mm in width.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to +85°C.
The isolation voltage between the coil and contact is 4000Vac.
The contact material is silver alloy, ensuring reliable conductivity.
It is designed for PCB mounting using solder terminals for secure connectivity.
It complies with cULus and VDE standards for safety and quality assurance.
The relay has a coil power of 170mW, providing high sensitivity for efficient operation.
It can switch AC voltage up to 250V AC.
This model belongs to the SNR series of power relays.
