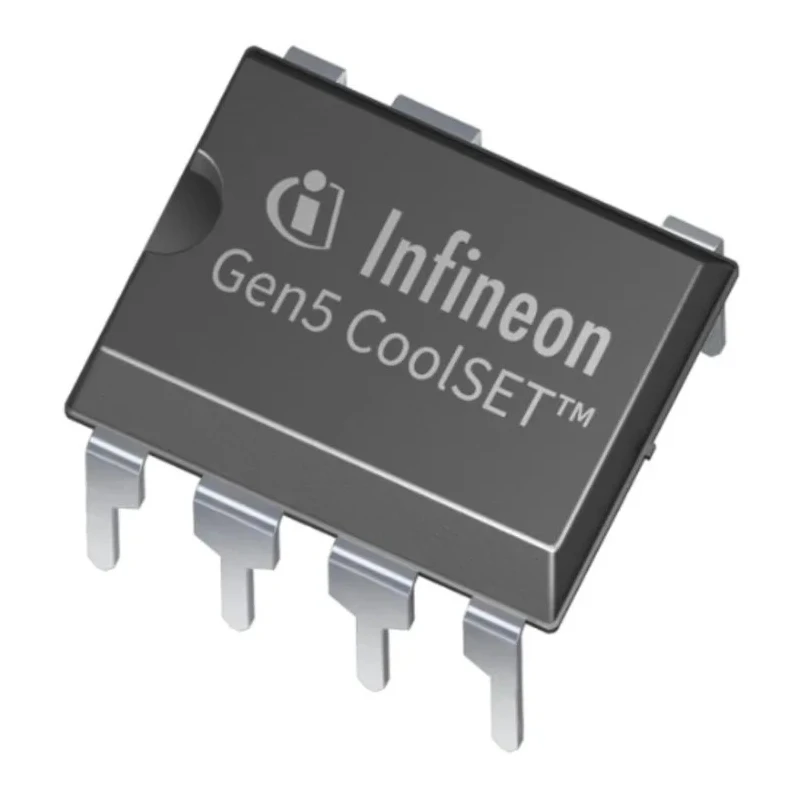

Infineon Fixed Frequency COOLSET 5-Channel 7-Pin Through Hole DIP Package IC ICE5AR4770BZSXKLA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 7.5mm |
| Length | 9.77mm |
| Model | ICE5AR4770BZSXKLA1 |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 75% |
| Series | ICE5AR4770BZS |
| Maximum Operating Temperature | 129°C |
| Package Type | DIP |
| Sub Type | Fixed Frequency COOLSET |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 100kHz |
| Maximum Input Voltage | 27V |
| Minimum Input Voltage | -0.3V |
| Pin Count | 7 |
Key Features
- The device operates at a fixed switching frequency of 100 kHz to enable efficient power conversion.
- Suitable for AC/DC converter applications requiring up to 27 V maximum input voltage.
- Features a maximum duty cycle of 75%, supporting stable operation in continuous conduction mode.
- Designed to operate reliably in temperatures from -40°C to 129°C.
- Comes in a 7-pin DIP through-hole package for easy integration into PCB designs.
- Incorporates the latest 5th generation CoolMOS superjunction MOSFET technology for enhanced electrical performance.
- Reduces bill of materials (BOM) count and cost through integrated error amplifier.
- Improves efficiency at mid and light loads with digital frequency reduction.
Product Description
Infineon ICE5AR4770BZSXKLA1 is a fixed frequency COOLSET 5-channel integrated circuit housed in a 7-pin DIP through-hole package. It represents the latest 5th generation technology featuring 700V CoolMOS™ superjunction MOSFETs designed for efficient and reliable power management in AC/DC converter applications.
This device incorporates an integrated error amplifier to reduce the bill of materials and overall system cost. Its fixed 100 kHz switching frequency enables consistent performance and optimal power conversion efficiency. It supports a broad input voltage range up to 27 V and a maximum duty cycle of 75%, suitable for continuous conduction mode operation with slope compensation.
Operating temperature range spans from -40°C to 129°C, ensuring durability and reliability in demanding industrial environments. The through-hole DIP 7-pin form factor allows easy PCB mounting and compatibility with existing manufacturing processes.
Key applications for this component include industrial power supplies, electronic component manufacturing, and embedded power management solutions requiring robust, high-performance AC/DC conversion.
The device operates at a fixed switching frequency of 100 kHz to enable efficient power conversion. Maximum operating temperature of 129°C ensures high reliability. Through-hole DIP 7-pin package simplifies PCB integration and assembly.
Maximum input voltage of 27V supports a wide range of power supply designs. Integrated features reduce BOM and overall system cost. Designed for stable operation with a maximum duty cycle of 75%. Wide operating temperature range from -40°C to 129°C.
Digital frequency reduction improves efficiency at mid and light loads.
This IC is ideal for use in industrial, manufacturing, and electronics production environments requiring efficient and compact Power Management ICs. The package and performance characteristics align well with contemporary power supply design needs encountered in commercial and industrial electronics.
Discover more components in EnvMart's Power Management IC category to enhance your design projects with reliable and advanced semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 27V, allowing it to support a wide range of power supply designs.
This device operates at a fixed switching frequency of 100 kHz, which enables efficient power conversion.
The maximum duty cycle of this model is 75%, which supports stable operation in continuous conduction mode.
It operates reliably in temperatures ranging from -40°C to 129°C, making it suitable for demanding industrial environments.
This model is housed in a 7-pin DIP through-hole package, facilitating easy integration into PCB designs.
It incorporates the latest 5th generation CoolMOS superjunction MOSFET technology for improved electrical performance.
The dimensions of this IC are 9.77mm in length and 7.5mm in height.
Key applications include industrial power supplies, electronic component manufacturing, and embedded power management solutions requiring efficient AC/DC conversion.
Digital frequency reduction improves efficiency at mid and light loads, enhancing overall power management performance.
The minimum operating temperature for this model is -40°C, ensuring functionality in low-temperature environments.
The integrated error amplifier reduces the bill of materials (BOM) and overall system cost by simplifying design requirements.
This model features a pin count of 7, which corresponds to its DIP package design.
