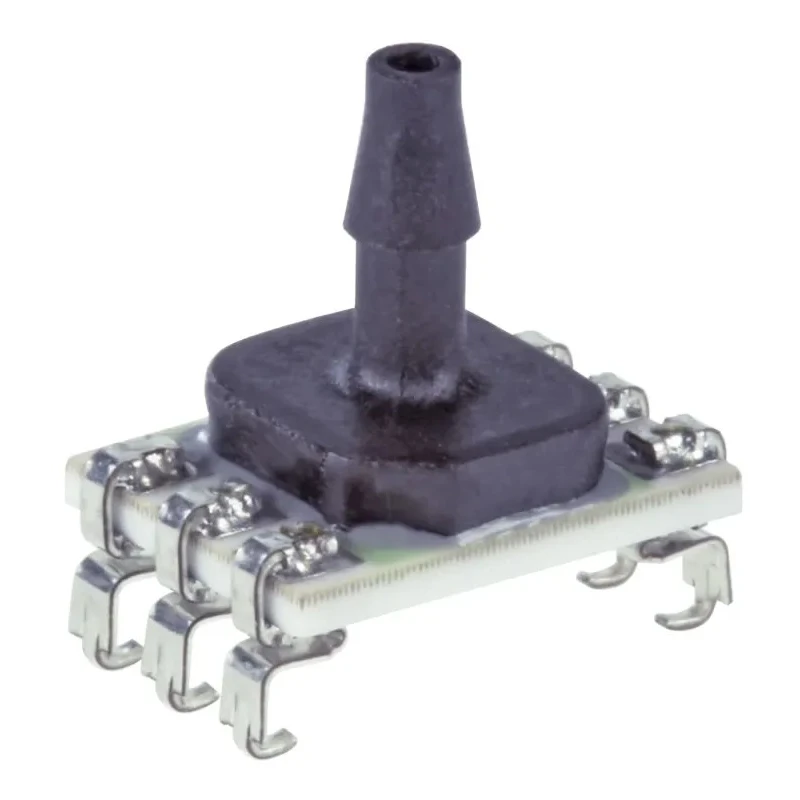

Honeywell Pressure Sensor Board 6 SMT, Piezoresistive, 30 psi Max Operating Pressure, ±0.25% Accuracy ABPMANV030PGAA5
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 30 psi |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANV030PGAA5 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 250psi |
Key Features
- Features ±0.25% accuracy for reliable pressure sensing.
- Operates with supply voltage of 3.3V or 5V for flexible integration.
- Supports maximum operating pressure of 30 psi and maximum overload pressure of 250 psi.
- Board-mounted 6-pin SMT package reduces PCB footprint effectively.
- Includes on-board ASIC for calibration and temperature compensation.
- Suitable for use with dry gases or non-corrosive liquids with protective gel option.
- Wide operating temperature range from -40°C to +85°C for harsh environments.
- Provides ratiometric analogue output or 12-bit digital output compatible with I2C or SPI interfaces.
Product Description
Honeywell ABPMANV030PGAA5 is a gauge pressure sensor board designed with a 6-pin SMT package offering high precision pressure measurements. It is a piezoresistive pressure sensor with a maximum operating pressure of 30 psi and ±0.25% accuracy, making it suitable for industrial, medical, HVAC, automotive, and manufacturing applications.
This sensor operates on a low supply voltage of 3.3V or 5V and provides flexible output options including ratiometric analogue or 12-bit digital signals compatible with standard I2C and SPI interfaces. It features an integrated ASIC for on-board calibration and temperature compensation, enhancing measurement reliability over a wide temperature range from -40°C to +85°C.
The sensor supports single axial barbed port type, optimized for board mounting and small footprint designs. Its durable construction includes compatibility with dry gases or non-corrosive liquids when equipped with the protective gel option, enabling safe use in various fluid sensing environments.
Typical industrial use cases include precise pressure monitoring in medical devices such as CPAP and ventilators, pneumatic valve position feedback, coffee machines, washing machines, air brake systems, and HVAC pressure sensing in automotive applications. This combination of technical performance and flexible interface options supports compact, high-accuracy electronic assemblies.
±0.25% accuracy pressure sensor for precise measurements. 3.3V or 5V low-voltage operation for flexible supply. 6-pin board-mount package reduces PCB footprint. Integrated ASIC for calibration and temperature compensation.
Operating temperature range from -40°C to +85°C for harsh environments. Supports dry gases and non-corrosive liquids with optional protective gel. Provides analogue and 12-bit digital outputs compatible with I2C and SPI protocols.
250 psi maximum overload pressure for high resilience. Single axial barbed pressure port suitable for straightforward integration.
This Honeywell pressure sensor board is a reliable and versatile solution for demanding industrial and laboratory pressure monitoring requirements. Browse EnvMart for more sensors and precision measurement instruments from leading brands.
Explore more products in our Pressure Sensor IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pressure sensor board is 30 psi.
This model has an accuracy of ±0.25%.
It operates with a supply voltage of either 3.3V or 5V.
The operating temperature range is from -40°C to +85°C.
It provides a ratiometric analogue output or a 12-bit digital output compatible with I2C or SPI interfaces.
The dimensions of the SMT package are 7.3mm in length, 6.3mm in width, and 10.63mm in height.
It features a single axial barbed pressure port.
This sensor is suitable for use with dry gases or non-corrosive liquids, especially when equipped with the protective gel option.
It is BPA Free and complies with LFGB and NSF-169 standards.
The maximum overload pressure is 250 psi.
This sensor is suitable for applications in industrial, medical, HVAC, automotive, and manufacturing sectors.
This model is a piezoresistive pressure sensor designed for board mounting.
