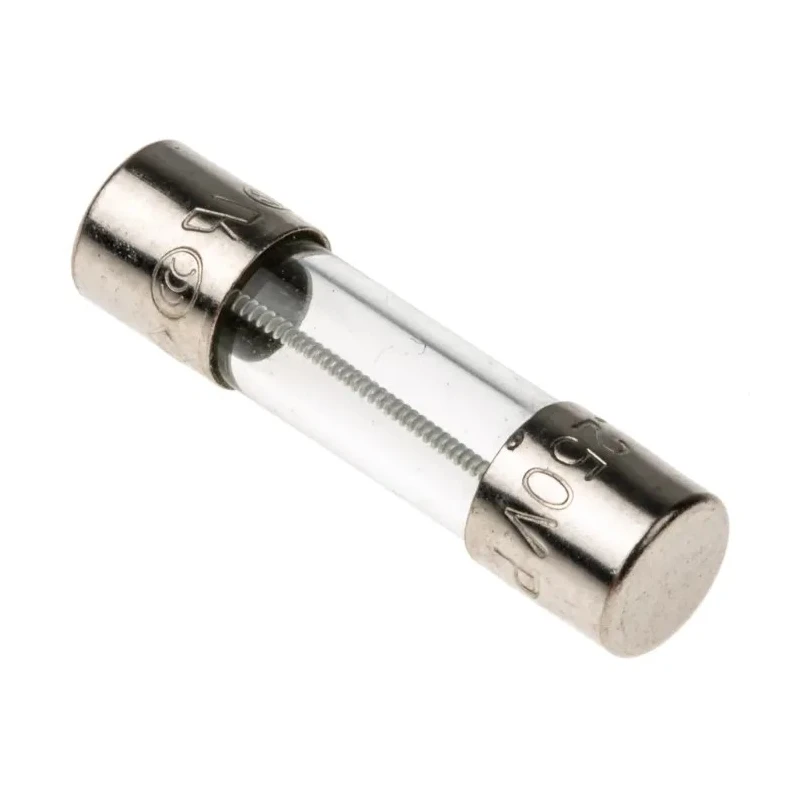

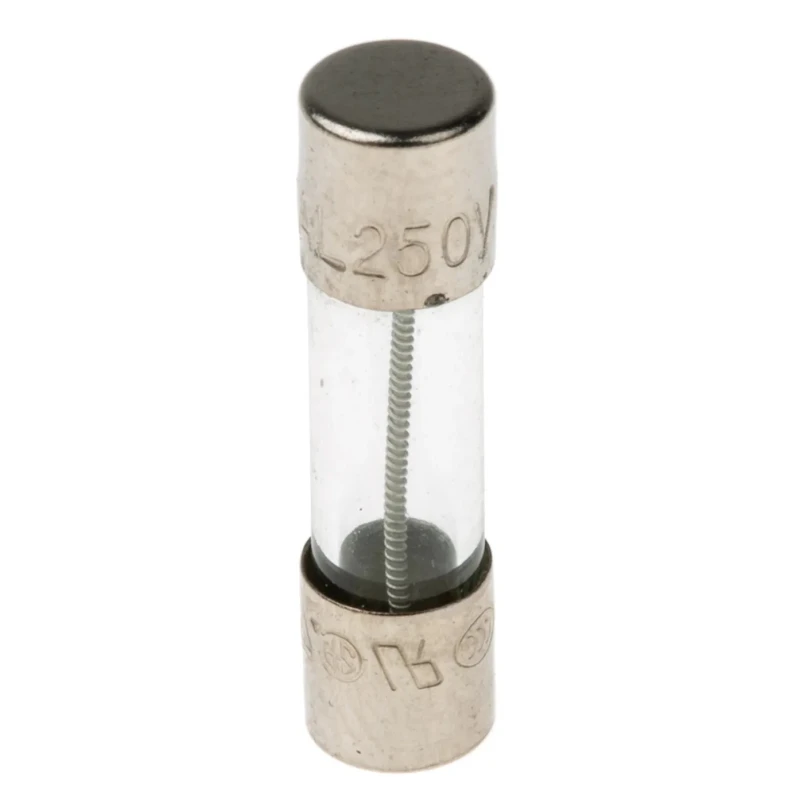

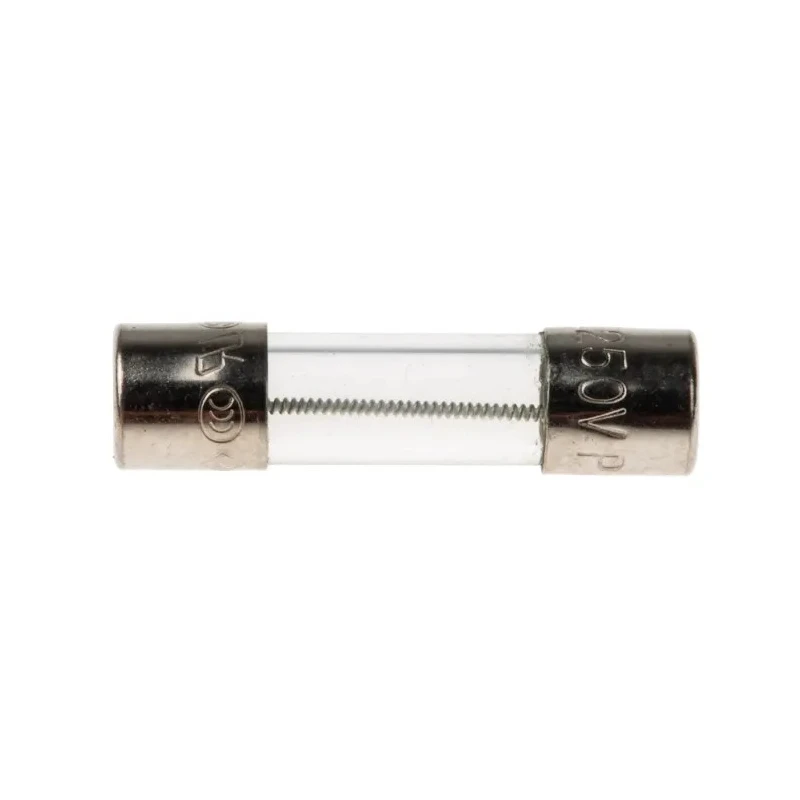

Littelfuse 1A T Glass Cartridge Fuse 5 x 20 mm 250V AC Time Delay 0213001.MXP

Littelfuse 0213001.MXP is a glass Cartridge Fuse rated at 1A with a T (time delay) speed rating designed for 250V AC protection applications. This 5 x 20 mm fuse size is a common standard used in protecting electrical and electronic circuits from overcurrent and short circuits.

The glass body allows visual inspection of the fuse element, making it easy to determine if the fuse has blown. With a time delay characteristic, this fuse can tolerate short surge currents without opening, making it suitable for devices that experience startup surges like motors and compressors.

This fuse operates reliably in temperatures ranging from -55°C to 125°C and is constructed as part of the 213 series with a 5 mm diameter and 20 mm overall length. It features low breaking capacity (LBC), which means it is suitable for circuits with lower fault currents.

Internationally approved and certified by bodies such as CCC, BSI, PSE, CSA, CE, SEMKO, UR, and VDE, this fuse ensures compliance with rigorous safety and quality standards. Typical applications include protection for industrial, commercial, automotive, and residential electrical equipment such as motors, air conditioners, refrigerators, and pumps.

Glass body with 5 x 20 mm cartridge size for easy fuse condition inspection. Rated current is 1 ampere for circuit protection. Designed for 250V AC voltage applications. Time delay (T) speed rating provides anti-surge capability.

Operating temperature range from -55°C to 125°C ensures reliability. Low breaking capacity suitable for smaller fault currents. Complies with international standards including CCC, BSI, PSE, CSA, CE, SEMKO, UR, and VDE. Ideal for protecting motors, air conditioners, refrigerators, pumps and other electrical appliances.

Compact size with 20 mm length and 5 mm diameter. Select this Littelfuse fuse to ensure high-quality, reliable protection of your electrical circuits where slow-blow fuse characteristics are needed for surge tolerance. Explore further in the Electronics & Electricals section under Circuit Breakers & Fuse for compatible fuse holders and accessories.
