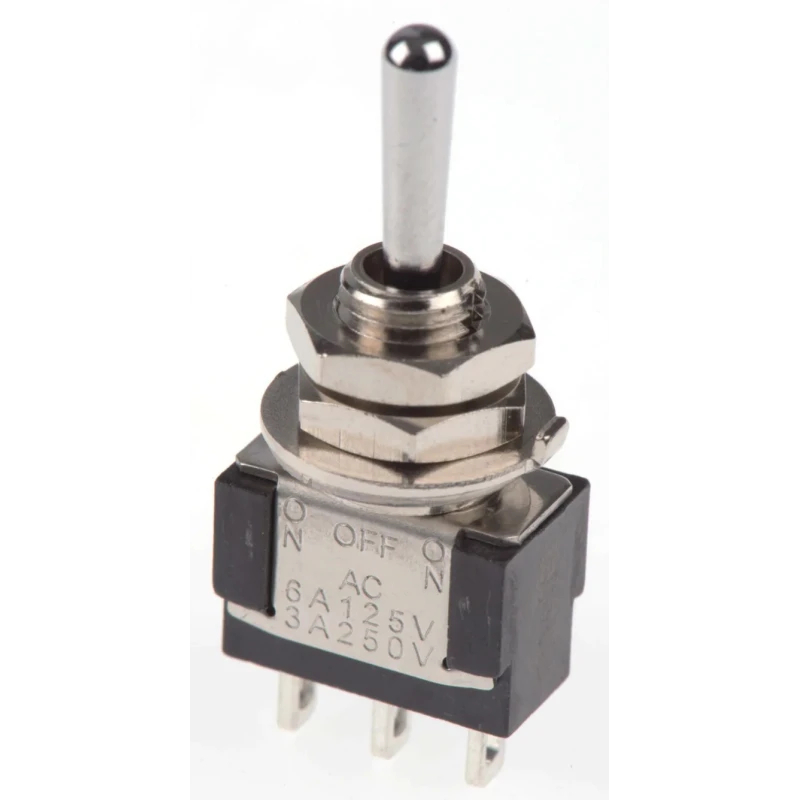

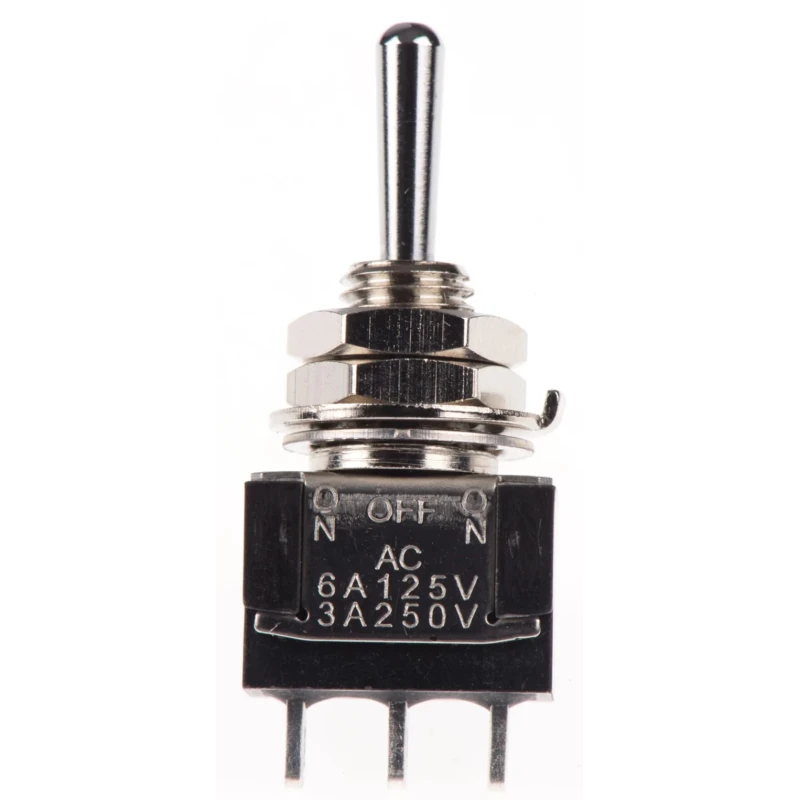

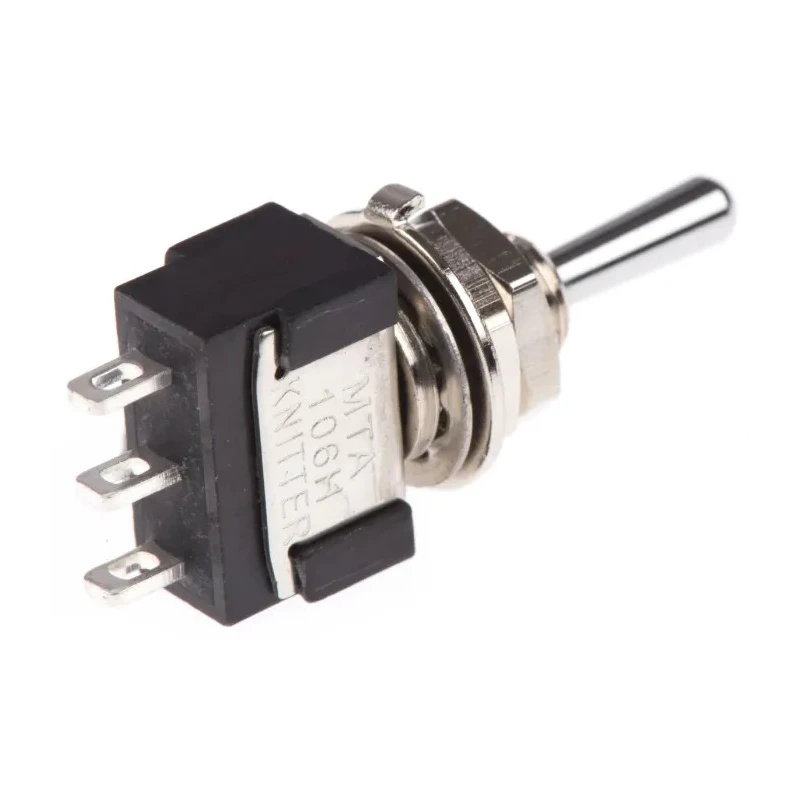

KNITTER-SWITCH Panel Mount Toggle Switch On-Off-On SPDT 30V dc 250V ac MTA 106 H
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Height | 32.5mm |
| Length | 13mm |
| Model | MTA 106 H |
| Width | 8mm |
| Mount Type | Panel |
| Series | MTA |
| Maximum Operating Temperature | 140°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Dielectric strength | 1500 V, 50 Hz for 1 minute |
| Minimum Operating Temperature | -45°C |
| Panel Cutout Size | 6.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL |
| Switch Operation | On-Off-On |
| Actuator Length | 10.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 300000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Chrome Plated |
Key Features
- Single pole double throw switch designed for reliable panel mounting applications.
- Rated for 4A contact current suitable for control circuits.
- Features chrome plated actuator with 10.5 mm length and silver plated copper alloy solder terminals.
- Operates over a temperature range from -45°C to 140°C ensuring durability.
- Mechanical life of 300,000 operations for extended service.

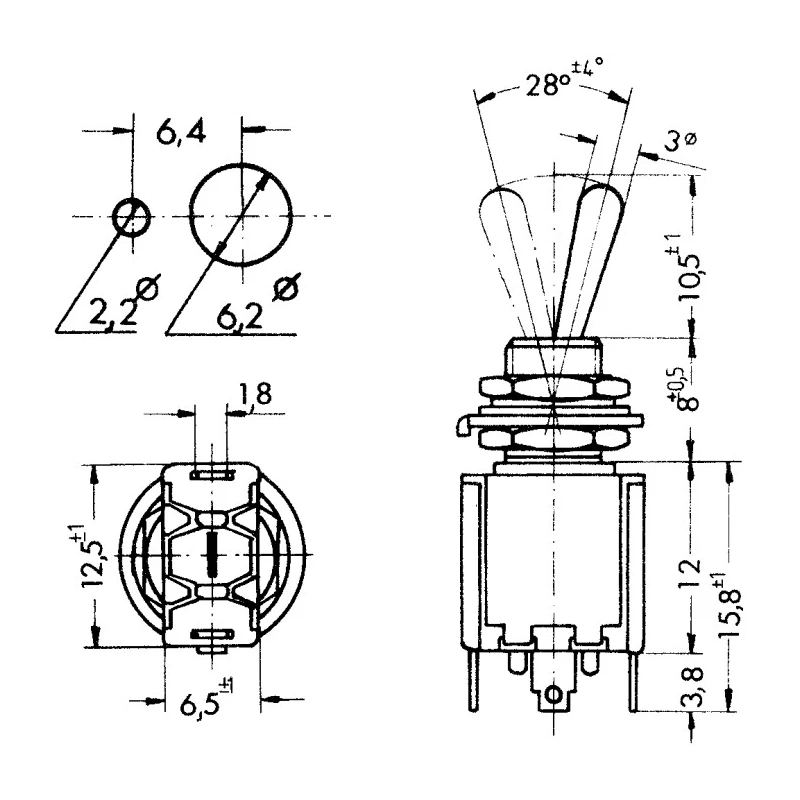

- Panel cutout size of 6.2 mm with M6 x 0.75 bushing and locking plate for secure installation.
- Complies with RoHS and UL standards for safety and environmental conformity.
- Insulation resistance greater than 1000 MΩ at 500 Vdc and dielectric strength of 1500 V at 50 Hz for 1 minute.
Product Description
KNITTER-SWITCH MTA 106 H is a high-quality panel mount toggle switch featuring an On-Off-On switch operation and SPDT (Single Pole Double Throw) contact configuration. It is engineered for precise control applications in electrical and automation systems, supporting a contact voltage rating of 30 V dc and 250 V ac. The switch is designed to accommodate panel mounting with a 6.2 mm panel cutout and includes a chrome plated brass actuator and a Diallyl Phthalate UL 94 V-0 case for durability and electrical insulation.
This toggle switch supports solder terminal connections made of silver plated copper alloy, enhancing conductivity and corrosion resistance. The actuator measures 10.5 mm in length and is chrome plated, providing a sturdy and tactile interface. It operates effectively in extreme temperature conditions ranging from -45°C minimum to 140°C maximum, making it suitable for various industrial environments.
With a mechanical life expectancy of 300,000 operations, the MTA 106 H switch ensures long-term reliability. The switch includes an M6 x 0.75 bushing with locking plate featuring a 9 mm key for secure and vibration-resistant mounting. Safety and regulatory compliance are ensured through RoHS and UL certifications.
Single pole double throw contact configuration provides flexible circuit control. 4A switch contact current allows operation in medium power electrical circuits. Durable chrome plated actuator and robust construction ensure long product life.
High insulation resistance and dielectric strength guarantee reliable electrical isolation. Temperature range suitability supports use in harsh industrial and commercial environments. Panel mount design with locking plate ensures secure installation without unwanted movement.
Compliance with industry safety and environmental standards.
This toggle switch is ideal for applications in industrial control panels, automation equipment, electrical instruments, and other scenarios requiring reliable switching performance. Its compact size and mechanical endurance make it suitable for both commercial and industrial sectors.
Explore the broad range of KNITTER-SWITCH Toggle Switches on EnvMart for tailored solutions in electrical switching technology and automation control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this model is 140°C, making it suitable for various industrial environments.
The required panel cutout size for installation is 6.2 mm.
The dielectric strength is rated at 1500 V at 50 Hz for 1 minute, ensuring reliable electrical isolation.
This toggle switch has a mechanical life expectancy of 300,000 operations, ensuring long-term reliability.
The switch is rated for a contact current of 4A, suitable for medium power electrical circuits.
It features solder terminals made of silver plated copper alloy, enhancing conductivity and corrosion resistance.
The actuator is made of chrome plated brass, providing a sturdy and tactile interface.
This model complies with RoHS and UL standards for safety and environmental conformity.
The dimensions of the switch are 32.5 mm in height, 13 mm in length, and 8 mm in width.
The minimum operating temperature for the MTA 106 H is -45°C, allowing for use in extreme conditions.
The switch operates in an On-Off-On configuration, providing flexible control options.
