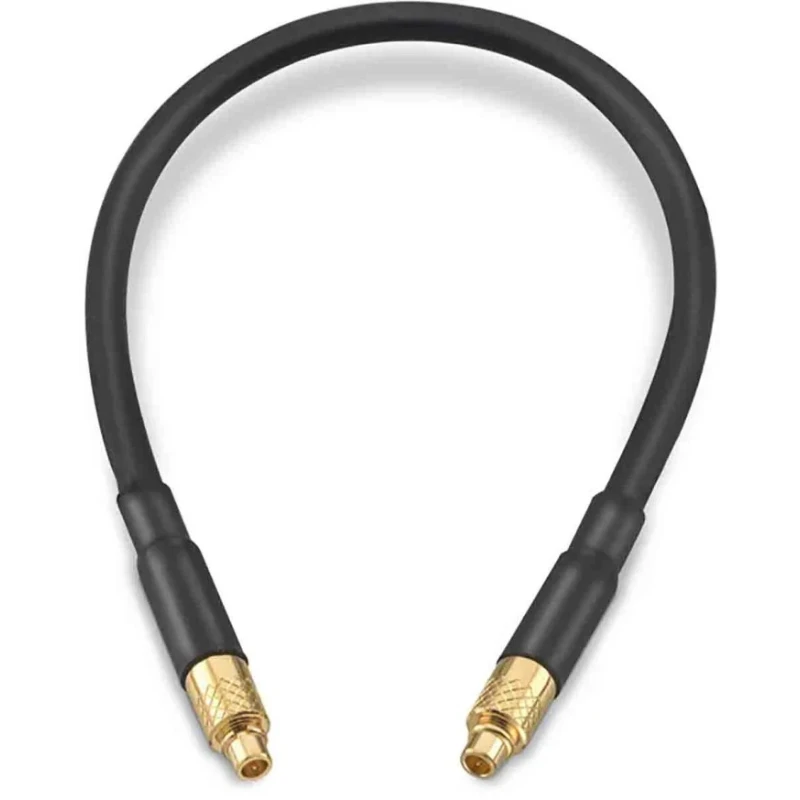

Wurth Elektronik MMCX Series Coaxial Cable 152.4 mm Length 50 Ω Characteristic Impedance Black Jacket RG174

Wurth Elektronik RG174 MMCX Series Coaxial Cable is a high-quality, terminated cable designed for precision and reliability in signal transmission applications. With an exact length of 152.4 mm and a characteristic impedance of 50 Ω, it is ideal for applications requiring stable impedance matching, such as RF and communication systems.

The cable uses a solid brass conductor to ensure excellent electrical conductivity, shielded with a black polytetrafluoroethylene jacket that offers durability, flexibility, and resistance to environmental factors. Rated for 170 Vrms voltage, it is capable of functioning effectively in various industrial and commercial electrical environments.

This terminated cable is equipped with MMCX straight plugs on both ends, supporting quick and secure connections with minimal signal loss. The cable supports frequencies up to 1 GHz with a low maximum insertion loss of 0.35 dB, preserving signal quality in demanding scenarios.

The cable is designed to operate within a temperature range from -20°C up to 80°C, suitable for both indoor and outdoor use in telecommunications, laboratory equipment, and industrial automation. Its nominal outer cable diameter is 2.7 mm with a minimum bend radius of 30 mm to accommodate variable routing without performance degradation.

The cable length is precisely 152.4 mm, suitable for compact installations. The cable features RG174 coaxial type with solid brass conductor for reliable conductivity. Rated voltage is 170 Vrms ensuring safe operation in standard electrical environments.

The black jacket is made of durable polytetrafluoroethylene providing excellent insulation and flexibility. This terminated cable has an MMCX straight plug on both ends for secure and consistent connections. The cable has a nominal outer diameter of 2.7 mm and supports frequencies up to 1 GHz.

It offers low insertion loss of 0.35 dB max ensuring signal integrity. Operating temperature ranges from -20°C to 80°C for versatile application conditions. This product complies with RoHS and IEC standards for environmental and quality assurance.

The cable has a minimum bend radius of 30 mm, providing flexibility without damage risk.

Wurth Elektronik RG174 coaxial cable is widely used across electronics, telecommunications, networking, laboratory instruments, and industrial equipment requiring dependable coaxial connectivity. Its robust construction ensures reliable performance over time, making it a suitable choice for demanding electrical and automation environments.
