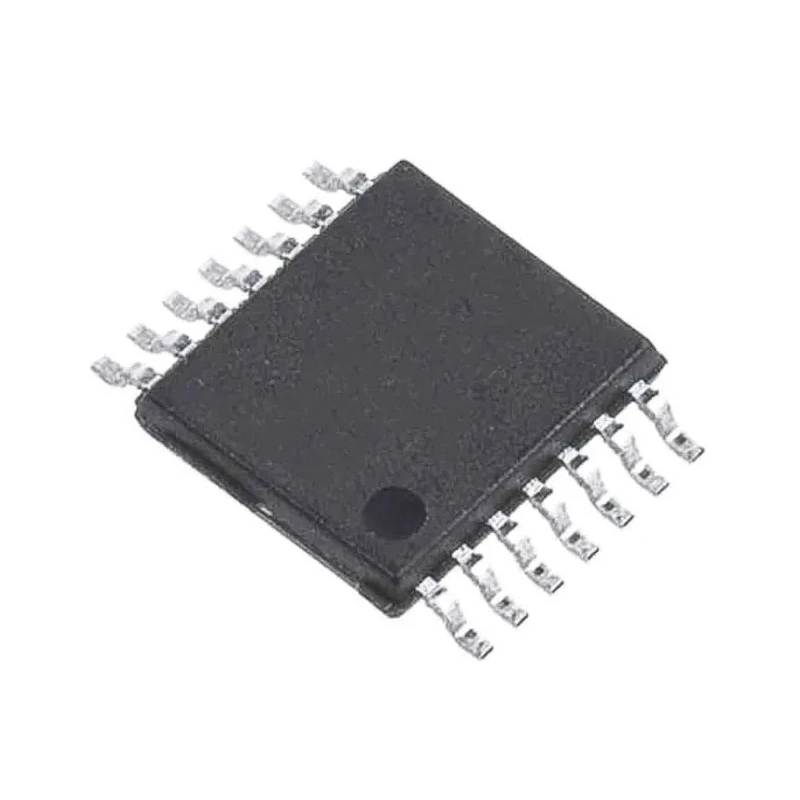

STMicroelectronics Operational Amplifier 20 MHz Gain Bandwidth, 14-Pin TSSOP, 2.5-5.5V Supply TSV994AIYPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | TSV994AIYPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | TSV994A |
| Output Current | 35mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 20MHz |
| Input Bias Current | 100 pA |
| Vos - Input Offset Voltage | 7.5 mV |
| Slew Rate | 10V/μs |
| Low input offset voltage | 1.5 mV max. (A grade) |
Key Features
- Provides a wide bandwidth of 20 MHz for high-speed applications.
- Features rail-to-rail input and output operation for enhanced dynamic range.
- Operates within a low supply voltage range of 2.5 V to 5.5 V.
- Includes four channels with low input bias current of 100 pA typical.
- Designed with a high output current capability of up to 35 mA.
- Stable operation for gains equal to or greater than 4 with capacitive loads of 100 pF.
- Low power consumption at approximately 1.1 mA maximum at 5 V supply.
- Complies with RoHS standards and automotive standard AEC-Q100.
Product Description
The STMicroelectronics TSV994AIYPT operational amplifier is a high-performance component designed for precision electronic applications requiring low voltage and high bandwidth. It features a 14-pin TSSOP package optimized for surface mounting, making it ideal for compact electronic systems.
Operating over a supply voltage range from 2.5 V to 5.5 V, the device supports quad channels with a gain-bandwidth product of 20 MHz, ensuring high-speed signal processing capabilities. The amplifier offers rail-to-rail input and output, improving signal accuracy and dynamic range in various environments.
Its ultra-low input offset voltage and bias current enhance measurement precision, crucial for sensor interfaces and active filtering tasks. The device also supports high output currents of up to 35 mA, enabling driving of various loads while maintaining stability above gains of 4, even with capacitive loads up to 100 pF.
The TSV994AIYPT model consumes minimal power, approximately 1.1 mA at 5 V, making it suitable for battery-powered and portable applications. Compliance with RoHS and AEC-Q100 automotive standards ensures reliability and environmental safety, broadening its application scope in automotive and industrial sectors.
Wide 20 MHz gain bandwidth for rapid signal amplification. Rail-to-rail input and output for maximum signal swing. Low supply voltage operation from 2.5 V to 5.5 V. Four-channel configuration suitable for complex circuit designs.
Low input bias current enhancing signal fidelity. High output current of 35 mA supporting diverse loads. Low power consumption ideal for portable devices. Meets RoHS and automotive AEC-Q100 standards.
This amplifier is ideal for industrial, electronic manufacturing, automotive, and instrumentation applications requiring precision and efficiency. Explore the comprehensive range of STMicroelectronics Operational Amplifiers and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 20 MHz, making it suitable for high-speed applications.
It operates within a supply voltage range of 2.5 V to 5.5 V.
This operational amplifier features four channels, allowing for complex circuit designs.
It can deliver a maximum output current of 35 mA, enabling it to drive various loads effectively.
The dimensions of this operational amplifier are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
The input bias current is typically 100 pA, which enhances signal fidelity in applications.
It operates within a temperature range of -40°C to 125°C, making it suitable for various environments.
This model comes in a 14-pin TSSOP package, optimized for surface mounting.
The slew rate of this operational amplifier is 10 V/μs, allowing for rapid signal changes.
Yes, it complies with RoHS standards and the automotive standard AEC-Q100, ensuring reliability and environmental safety.
The input offset voltage is a maximum of 7.5 mV, which is critical for precision applications.
It is suitable for industrial, electronic manufacturing, automotive, and instrumentation applications requiring precision and efficiency.
