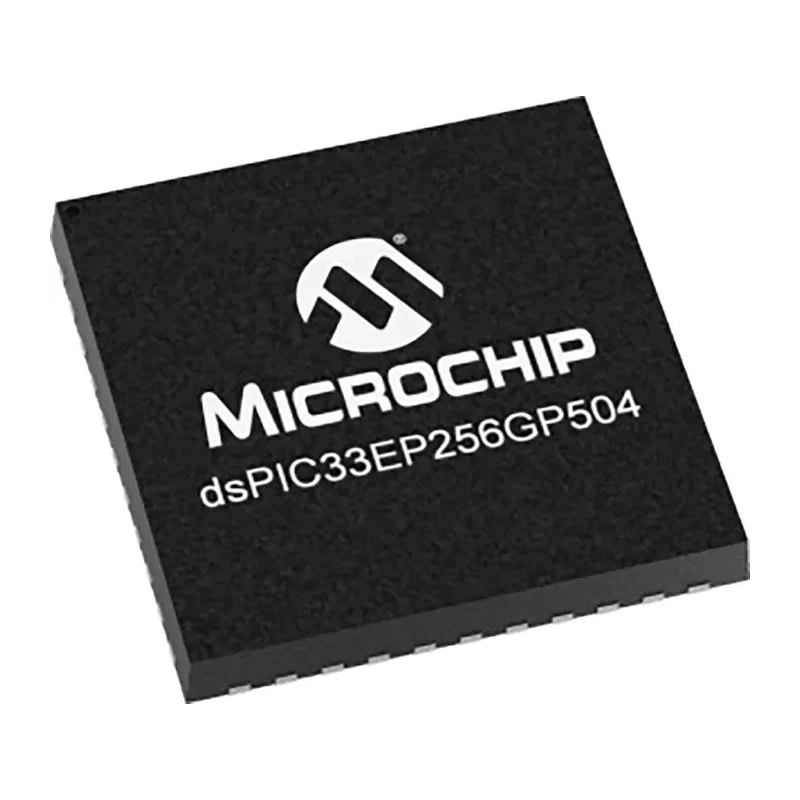

Microchip 16 bit Digital Signal Processor 60 MHz 256kB FLASH 44-Pin QFN DSPIC33EP256GP504-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 8mm |
| Model | DSPIC33EP256GP504-I/ML |
| Width | 8mm |
| Mount Type | Surface |
| Core | dsPIC33E/PIC24E |
| Series | dsPIC |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 32kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | Class B Safety Library, IEC 60730 |
| Pin Count | 44 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 60MHz |
| Number of Timers | 2 |
| Instruction Set Architecture | C |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 7.14ns |
| ADC Channels | 9 |
| Number of PWM Channels | 6 |
| Numeric and Arithmetic Format | ALU |
Key Features
- Features a 70 MIPS dsPIC DSC core with integrated DSP capabilities for enhanced processing.
- Incorporates 32kB RAM and supports a 16-bit data bus width.
- Equipped with 6 PWM channels and 1 ADC with 9 input channels for precise control.
- Packaged in a compact 44-pin QFN form factor measuring 8mm by 8mm and 950μm height.
- Operates reliably between -40°C and 85°C with supply voltage from 3.3V to 3.6V.
- Supports automotive standard AEC-Q100 for robust applications.
- Implements a Modified Harvard Architecture with C compiler optimized instruction set.
- Includes multiple timers and resolutions for PWM (7.14ns) and ADC (12-bit) accuracy.
Product Description
Microchip DSPIC33EP256GP504-I/ML 16 bit Digital Signal Processor is a high-performance embedded processing unit running at 60 MHz clock frequency with 256kB of FLASH memory and 32kB RAM, suitable for industrial and automotive applications.
This processor uses the dsPIC33E DSC core architecture, optimized for digital signal processing tasks and motor control systems, providing 70 MIPS throughput for efficient computation.
Supporting a 16-bit data bus width and featuring 6 PWM channels and a 12-bit ADC with 9 channels, it offers precise control and signal conversion capabilities essential for complex control schemes.
The device is housed in a small 44-pin QFN package with compact physical dimensions of 8 mm length and width and a height of 950 µm, allowing for integration in space-constrained environments.
Operating within a temperature range of -40°C to 85°C and a supply voltage range of 3.3 to 3.6 volts, it ensures ruggedness and reliability under diverse operating conditions, meeting automotive AEC-Q100 standards.
Additional features include integration of multiple timers and a PWM resolution of 7.14 ns and timer resolution of 32 bits, facilitating high-precision timing control. Features a 70 MIPS dsPIC DSC core with integrated DSP capabilities for enhanced processing.
Incorporates 32kB RAM and supports a 16-bit data bus width. Equipped with 6 PWM channels and 1 ADC with 9 input channels for precise control. Packaged in a compact 44-pin QFN form factor measuring 8mm by 8mm and 950μm height.
Operates reliably between -40°C and 85°C with supply voltage from 3.3V to 3.6V. Supports automotive standard AEC-Q100 for robust applications. Implements a Modified Harvard Architecture with C compiler optimized instruction set.
Includes multiple timers and resolutions for PWM (7.14ns) and ADC (12-bit) accuracy.
This Microchip dsPIC DSP is ideal for industrial motor control, power conversion, and embedded signal processing tasks requiring robust performance and extended temperature operation.
Explore the full Microchip range of Digital Signal Processors at EnvMart for specialized semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 60 MHz.
This unit has a program memory size of 256 kB FLASH.
It supports 6 PWM channels for enhanced control capabilities.
The ADC has a resolution of 12 bits and includes 9 input channels.
It operates reliably within a temperature range of -40°C to 85°C.
The supply voltage range is from 3.3V to 3.6V.
It is packaged in a 44-pin QFN form factor, measuring 8 mm by 8 mm.
Yes, it supports the automotive standard AEC-Q100 for robust applications.
The timer resolution is 32 bits, allowing for precise timing control.
This processor has a single core configuration.
The maximum operating temperature is 85°C.
It implements a C compiler optimized instruction set architecture.
