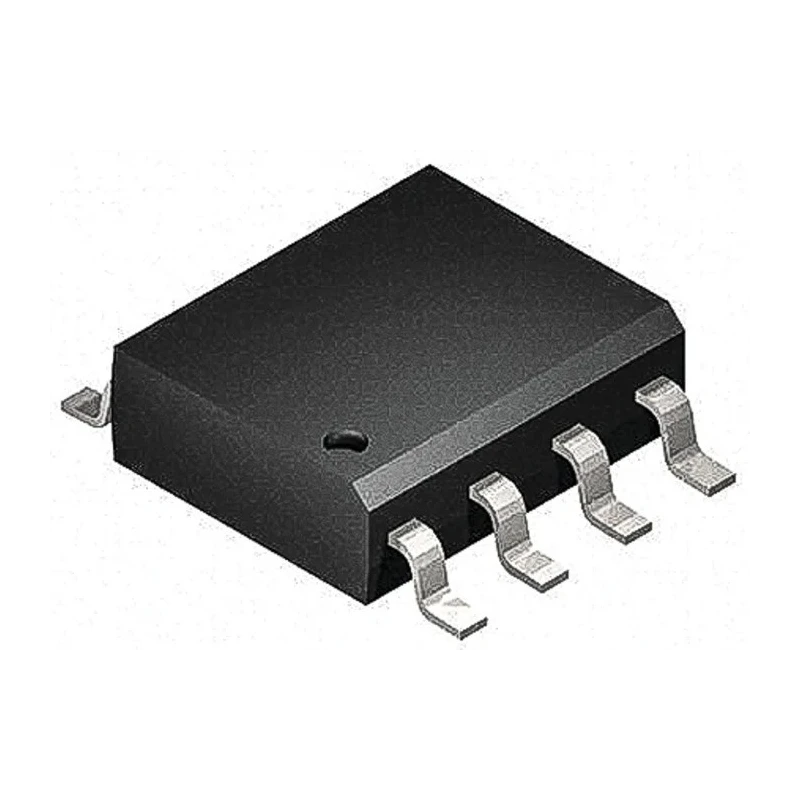

STMicroelectronics 8-Bit STM8S Microcontroller, 16 MHz, 8kB Flash, 1kB RAM, 8-Pin SOIC STM8S001J3M3TR

STMicroelectronics STM8S001J3M3TR is an 8-bit STM8S microcontroller designed for efficient embedded applications, featuring a 16 MHz maximum clock frequency and 8 kB flash memory capacity. Packaged in a compact 8-pin SOIC form factor, it integrates robust features including 1 kB RAM and an embedded data EEPROM, optimized for applications requiring low power consumption and flexibility.

This microcontroller supports multiple communication interfaces such as I2C, UART, and SPI, enabling connectivity for various peripherals. It delivers enhanced clock and power management capabilities with three master clock sources, including an internal 16 MHz user-trimmable RC oscillator and a low-power 128 kHz RC oscillator. The chip also incorporates a clock security system ensuring reliable clock monitoring.

Designed for industrial and automotive use, the device operates over a -40°C to 125°C temperature range and supports a wide voltage supply from 2.95 V up to 5.5 V. The STM8S001J3M3TR features five programmable I/O pins and three timers, making it suitable for timing and control applications. Its Harvard architecture instruction set ensures optimized processing speed and power efficiency.

Manufactured with a surface mount SOIC package measuring 5 mm in length, 4 mm in width, and 1.5 mm in height, it is ideal for compact embedded system designs. The device delivers 49 mW maximum power dissipation, balancing performance with energy efficiency.

Common industrial applications include embedded control, automotive electronics, HVAC control systems, consumer electronics, and other commercial devices where low power and reliable processing are critical. This microcontroller ensures reduced system costs and enhanced robustness in embedded solutions.

Equipped with 8 kB of flash program memory and integrated true data EEPROM. Operates with a flexible clock system including an internal user-trimmable 16 MHz RC oscillator. Supports multiple interfaces including I2C, UART, and SPI protocols.

Includes 5 programmable I/O pins and 3 timers for versatile applications. Offers power management with multiple low-power modes to reduce consumption. Wide operating voltage range from 2.95 V to 5.5 V ensuring reliable performance.

Operating temperature range from -40°C to 125°C for industrial and automotive suitability. Harvard architecture instruction set ensures efficient processing performance. Small form factor with dimensions: 5 mm length, 4 mm width, and 1.5 mm height.

Ideal for embedded systems in industrial, automotive, and consumer electronics applications. Explore more Microcontrollers and embedded solutions at EnvMart for your industrial and commercial needs.
