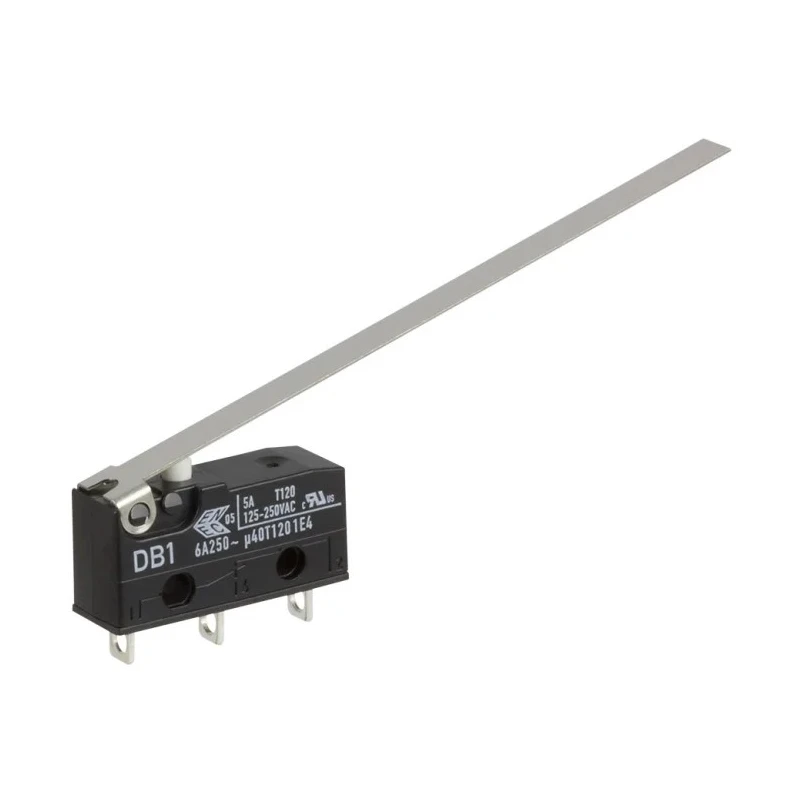

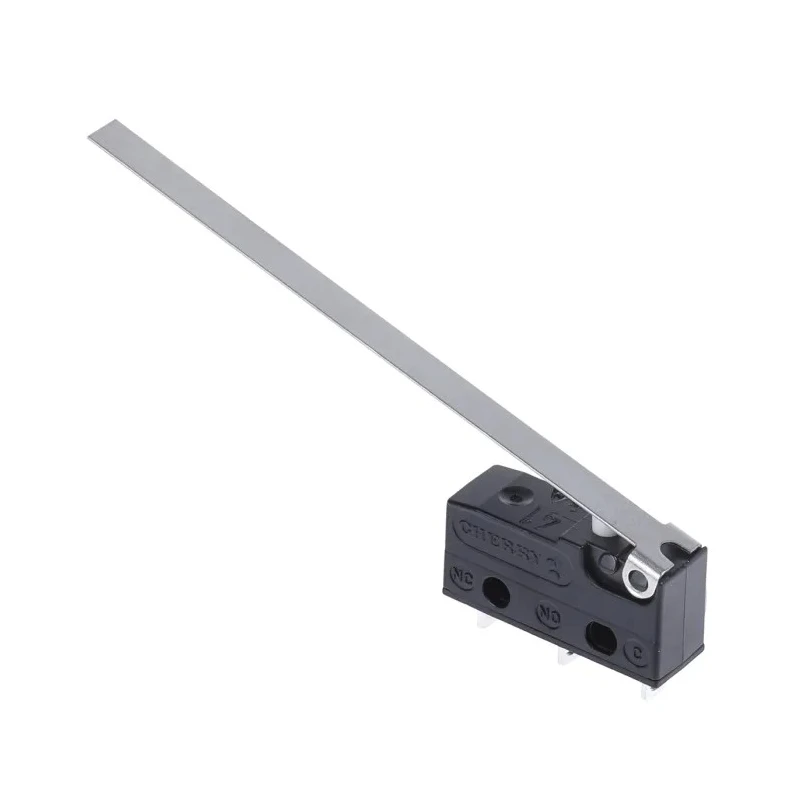

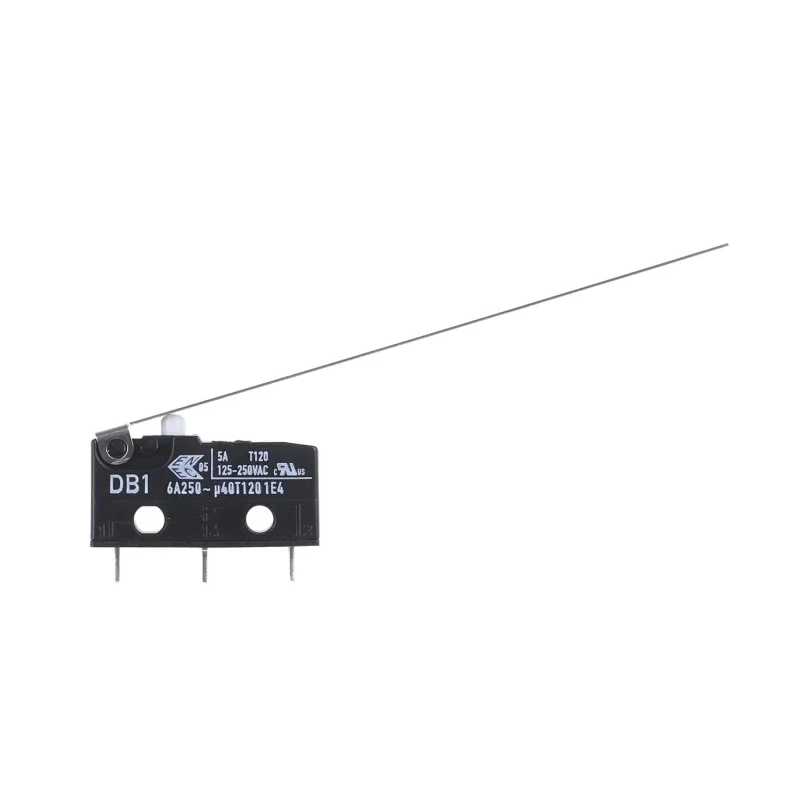

ZF Long Hinge Lever Micro Switch, Solder Terminal, 6A, 250 V ac, SPDT, IP50 DB1C-A1LD
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Model | DB1C-A1LD |
| IP Rating | IP50 |
| Housing Material | Polyethylene Terephthalate, Polyamide |
| Series | DB1 |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Long Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Contact Current | 6A |
| Operating Force | 0.18N |
| Mechanical Life | 15000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | DB Subminiature |
Key Features
- The switch is constructed with polyethylene terephthalate and polyamide housing materials.
- It offers mechanical life rated up to 15 million operations for high reliability.
- Operating force is low at 0.18 Newtons, facilitating precise control.
- Wide operating temperature range from -40°C to 120°C supports varied environments.
- The microswitch is RoHS compliant and designed for use in electrical and automation applications.
- Suitable for industrial, laboratory, and commercial equipment requiring precise switching.
- The device is part of the DB1 series, featuring robust subminiature construction.
Product Description
ZF DB1C-A1LD Long Hinge Lever Micro Switch provides a durable and precise switching solution with its 6A current rating at 250 V ac and SPDT contact configuration. The solder terminal type ensures secure electrical connections. The housing is made of polyethylene terephthalate and polyamide for excellent mechanical and chemical resistance.
This micro switch achieves a mechanical life expectancy of up to 15 million operations, highlighting its reliability in rigorous industrial environments. It requires a low operating force of 0.18N, enabling sensitive actuation.
The switch performs reliably across a temperature range from -40°C to 120°C, making it ideal for various industrial, laboratory, HVAC, and automation systems. Its IP50 rating offers adequate protection against dust ingress for many indoor applications.
As a DB series subminiature microswitch, it supports a broad range of auxiliary actuators and terminal types, facilitating versatile integration in control panels and equipment. Compliance with RoHS standards ensures environmental safety and regulatory conformance.
Industrial uses include machine controls, manufacturing line equipment, instrumentation, and automation systems where precise and repeatable switch actuation is crucial. The compact form factor and long mechanical life make it suitable for demanding commercial and scientific equipment.
The switch is built with robust polyethylene terephthalate and polyamide materials, ensuring durability. The solder terminal provides reliable electrical connections for various applications. Designed for SPDT (Single Pole Double Throw) contact configuration to control multiple circuits.
Provides long mechanical life of up to 15 million operations for enhanced reliability. Operates effectively across wide temperatures from -40°C to 120°C, suitable for harsh environments. Meets RoHS standards to ensure compliance with environmental safety regulations.
IP50 rating protects the switch from dust ingress, suitable for indoor industrial use. Explore more Micro Switches and related electrical components on EnvMart for advanced automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has a current rating of 6A at 250V AC.
The contact configuration is SPDT (Single Pole Double Throw), allowing it to control multiple circuits.
The housing is constructed from polyethylene terephthalate and polyamide, providing excellent mechanical and chemical resistance.
It has a mechanical life expectancy of up to 15 million operations, ensuring reliability in various applications.
The operating temperature range is from -40°C to 120°C, making it suitable for harsh environments.
The switch requires a low operating force of 0.18 Newtons for actuation.
The micro switch has an IP50 rating, providing protection against dust ingress for indoor applications.
It features solder terminals, ensuring secure electrical connections.
Yes, this micro switch is RoHS compliant, ensuring it meets environmental safety standards.
It is part of the DB series, specifically the DB1C-A1LD model.
This model is suitable for industrial, laboratory, HVAC, and automation systems requiring precise switching.
It uses a long hinge lever actuator type, facilitating sensitive actuation.
