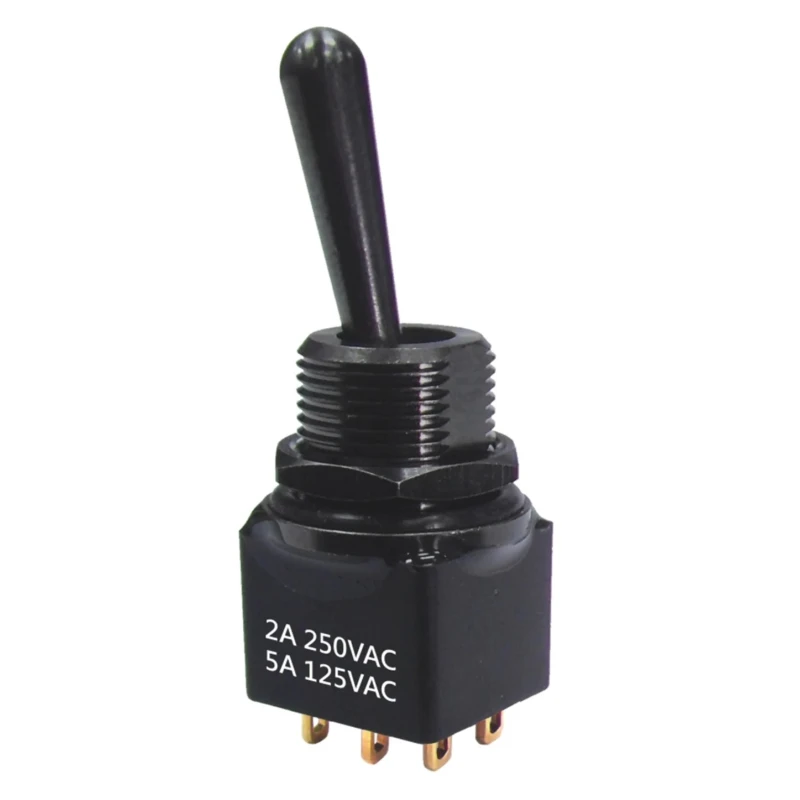

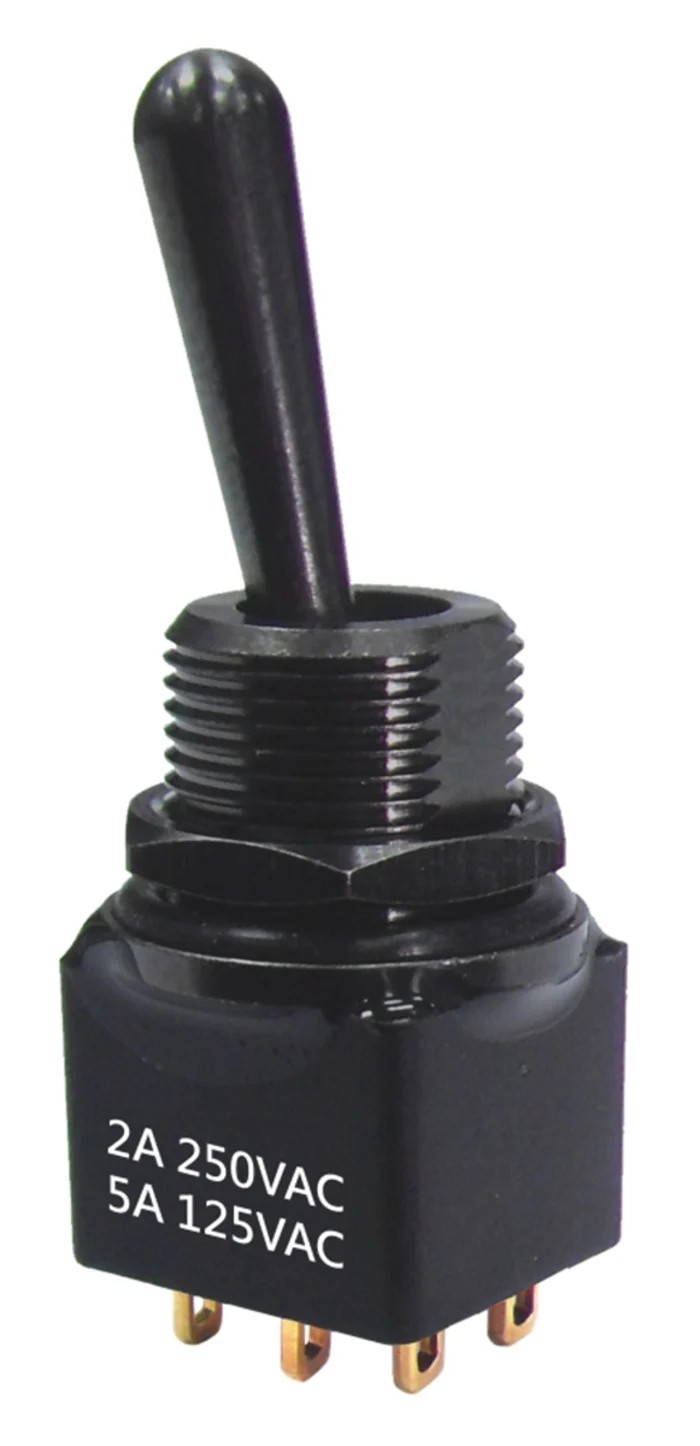

RS PRO Toggle Switch PCB Mount On-Off-On DPDT Solder Terminal 28V dc 250V ac 820-0514
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 40.2mm |
| Length | 16mm |
| Model | 820-0514 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-Off-On |
| Actuator Length | 18mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch features a sealed design with IP67 protection for moisture and dust resistance.
- The actuator is made of brass with an 18mm length for durable operation.
- It supports a contact current of 5A with a robust double-pole double-throw (DPDT) configuration.
- Mechanical life rating is 50,000 cycles ensuring long-lasting performance.
- Standards compliant with MIL-STD-202F providing industrial reliability.
- Operates in a wide temperature range from -30°C to 85°C.
- Solder-type terminals ensure stable electrical connections on PCB mount setups.
Product Description
RS PRO 820-0514 Toggle Switch is a high-quality, IP67 sealed miniature toggle switch designed for PCB mounting with On-Off-On DPDT switch operation. Rated for 28V dc and 250V ac, it is suitable for various industrial and electronic control applications requiring reliable switching performance.
The switch features a brass actuator of 18mm length providing mechanical strength and long service life. It has an operating temperature range of -30°C to 85°C, making it well-suited for harsh operating environments.
With a contact current rating of 5A, it supports both low level signals and power switching tasks. The double shell case construction and dual 'O' ring frontal seals ensure IP67 rated protection against moisture and dust ingress, allowing use in demanding industrial and automation environments.
The compact dimensions of height 40.2mm, width 14.48mm, and length 16mm provide a space-efficient footprint ideal for dense PCB layouts. The solder terminal type guarantees robust mounting and electrical connection on printed circuit boards.
Compliant with MIL-STD-202F, the switch meets rigorous quality and reliability standards for professional electrical and automation use. This toggle switch is ideal for industrial automation, control panels, electronic devices, and instrumentation requiring durable, sealed switching capability.
Its high mechanical life of 50,000 cycles ensures dependable long-term operation in commercial and industrial applications. Its sealed design allows it to be deployed in outdoor, wet, or dusty environments without risk of failure due to contamination.
RS PRO offers a trusted series of high-performance Toggle Switches suitable for engineers and technicians who demand reliability and longevity in their switch components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating for this model is 5A, suitable for both low level signals and power switching tasks.
It operates within a temperature range of -30°C to 85°C, making it suitable for harsh environments.
This switch is designed for PCB mounting, featuring solder-type terminals for stable electrical connections.
The switch has an IP67 rating, providing protection against moisture and dust ingress.
The mechanical life rating for this model is 50,000 cycles, ensuring long-lasting performance.
The dimensions are 40.2mm in height, 14.48mm in width, and 16mm in length, making it compact for dense PCB layouts.
It is compliant with MIL-STD-202F, ensuring it meets rigorous quality and reliability standards for industrial use.
The actuator is made of brass and has a length of 18mm, providing mechanical strength.
The switch configuration is double-pole double-throw (DPDT) with an On-Off-On operation.
It supports a contact DC voltage of 28V and an AC voltage of 250V.
This model is suitable for various industrial and electronic control applications, including control panels and instrumentation.
Due to its sealed design and IP67 rating, it can be deployed in outdoor, wet, or dusty environments without risk of failure.
