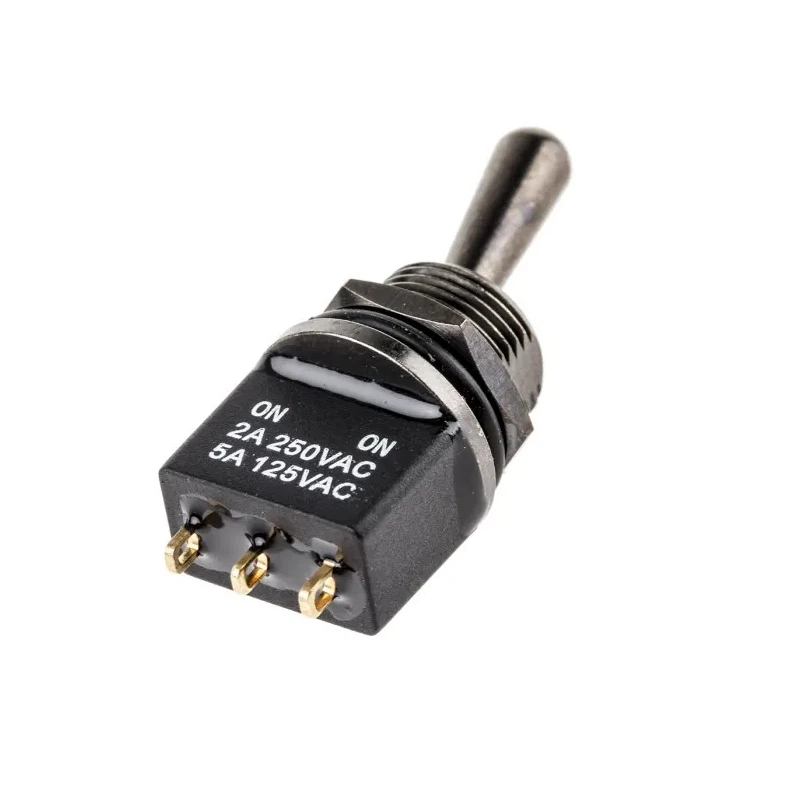

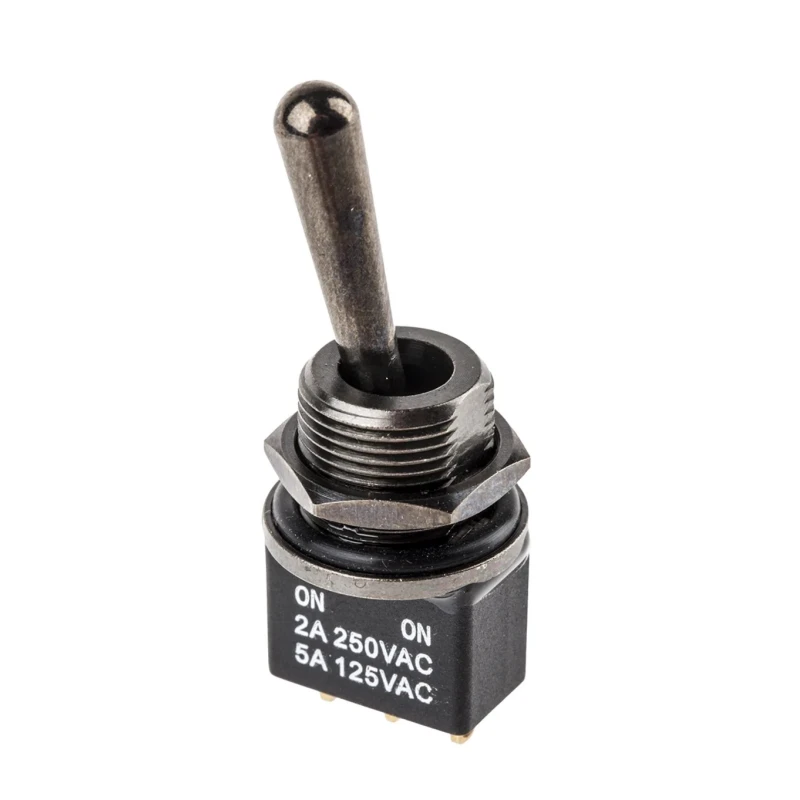

RS PRO Toggle Switch PCB Mount On-On SPDT Solder Terminal 250 V AC 5 A 820-0542
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 39.8mm |
| Length | 16mm |
| Model | 820-0542 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-On |
| Actuator Length | 18mm |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- The switch employs a brass actuator with length of 18 mm for durable operation.
- It has a contact configuration of single pole double throw (SPDT) offering reliable switching.
- The toggle is designed for PCB mounting with solder terminals to ensure secure connection.
- Rated to withstand electrical loads of 250 V AC at 5 A making it suitable for numerous industrial applications.
- IP67 rating protects against dust ingress and temporary water submersion for outdoor or harsh environments.
- Operating temperature ranges from -30°C to +85°C allowing for versatile environment compatibility.
- Complies with US military standard MIL-STD-202F for robust and reliable performance.
- Mechanical life rating of 50,000 cycles ensures long-lasting switching capability.
Product Description
RS PRO 820-0542 Toggle Switch is a high-quality single pole double throw (SPDT) toggle switch designed for printed circuit board (PCB) mounting. Featuring an on-on latching operation and solder terminal connections, this switch delivers reliable electrical switching capability rated up to 250 volts AC at 5 amps. The brass actuator measures 18 mm in length, offering durable manual control.
Engineered to meet demanding industrial and commercial requirements, this toggle switch carries an IP67 ingress protection rating, ensuring complete protection against dust and temporary immersion in water. This makes it ideal for outdoor installations and harsh environments such as marine, oil rig, and heavy machinery applications.
The switch housing includes a flame-retardant and heat-stabilised double shell rated UL 94V-0, providing enhanced fire safety suitable for critical applications including cockpit controls and defense systems. Additionally, it is salt spray corrosion tested to ASTM B117 standard, further attesting to its durability against harsh environmental conditions.
With compliance to the US military standard MIL-STD-202F, the 820-0542 switch is reliable for use in industrial automation, electrical control panels, and equipment requiring rugged and stable switching functionality. Operating temperature range is from -30°C to 85°C, allowing broad adaptability.
Brass actuator material with 18 mm actuator length ensures robust manual operation. Single pole double throw (SPDT) contact configuration for versatile switching. Supports up to 5 A contact current at 250 V AC for diverse electrical applications.
IP67 rating for dust-tight and temporary water submersion protection. Mechanical life expectancy of 50,000 cycles guarantees longevity. Flame retardant UL 94V-0 approved double shell for critical safety needs. Salt spray corrosion protection to ASTM B117 standard enhances durability.
PCB mount type with solder terminals simplifies installation and connectivity. Complies with MIL-STD-202F for military environment resistant switch operation.
This RS PRO Toggle Switch is a dependable choice for electrical, automation, marine, and industrial sectors. Its robust design and IP67 rating offer reliability in environments exposed to moisture, dust, and mechanical stress. Explore more professional electrical switches and components at EnvMart to suit your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration, allowing for versatile switching capabilities.
It is rated for a maximum contact AC voltage of 250 V and a contact current of 5 A.
The switch has a height of 39.8 mm, a length of 16 mm, and a width of 14.48 mm.
The operating temperature range is from -30°C to +85°C, making it suitable for various environments.
This unit is designed for PCB mounting and features solder terminals for secure connections.
It has a mechanical life rating of 50,000 cycles, ensuring long-lasting performance.
The switch carries an IP67 rating, providing protection against dust ingress and temporary water submersion.
It complies with the US military standard MIL-STD-202F, ensuring reliability in demanding conditions.
The actuator is made from brass and has a length of 18 mm, providing durable manual control.
It is suitable for various industrial applications, including electrical control panels and equipment requiring rugged switching functionality.
Yes, it has been salt spray corrosion tested to ASTM B117 standard, enhancing its durability in harsh environments.
This model employs an on-on latching operation, allowing for secure switching between two positions.
