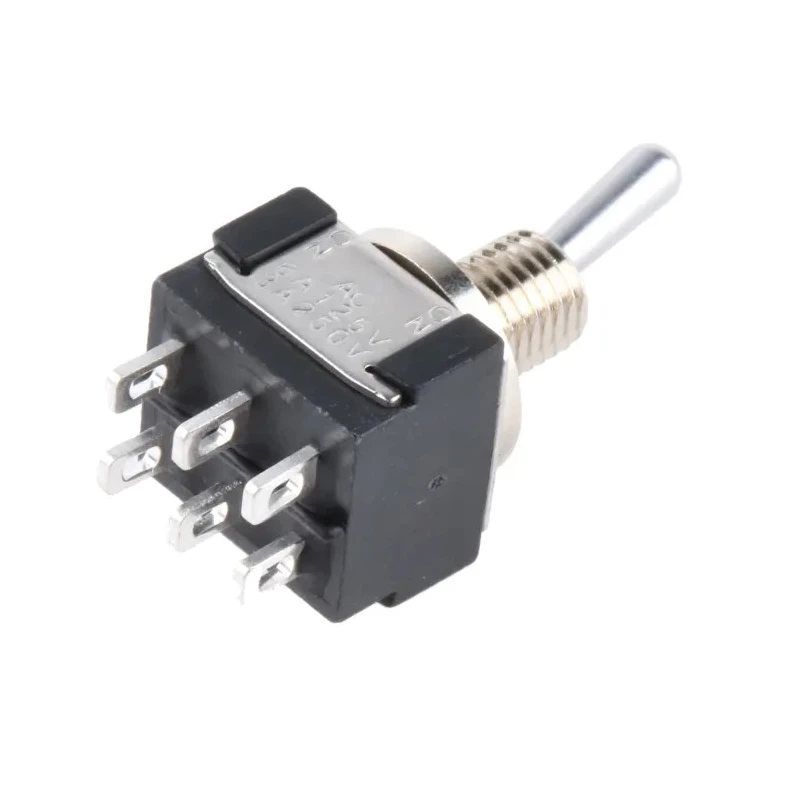

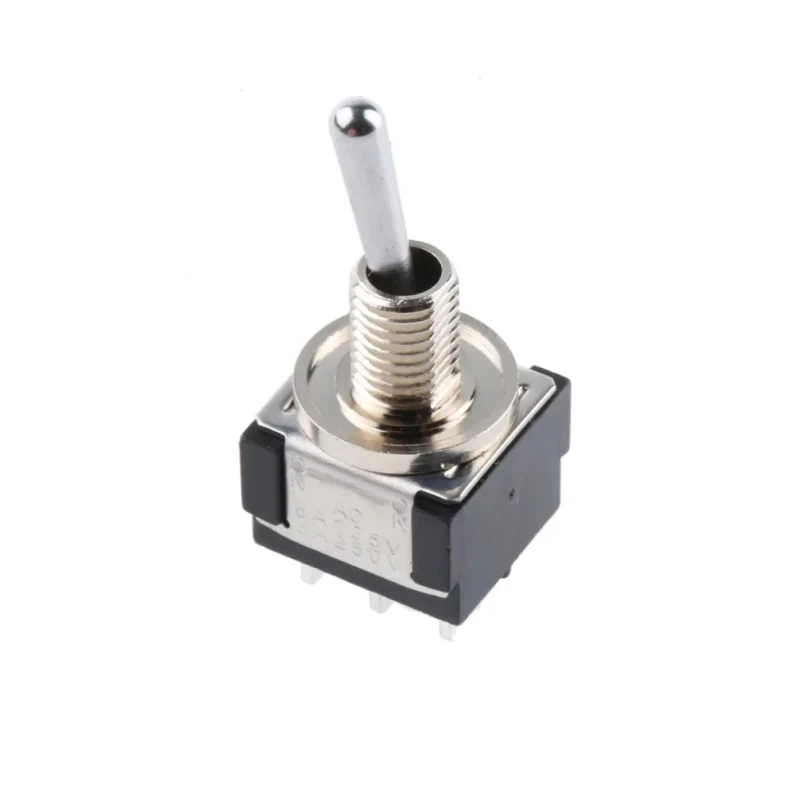

KNITTER-SWITCH Toggle Switch Panel Mount On-On DPDT 4A 30 V dc 250 V ac Chrome Plated Actuator MTE 206 N

KNITTER-SWITCH MTE 206 N toggle switch is a high-quality panel mount switch designed for robust electrical and automation applications requiring reliable switching. Featuring an On-On switch operation and DPDT contact configuration, this switch supports a contact current of 4A and voltage ratings of 30 V dc and 250 V ac, making it suitable for various low voltage control circuits.

The switch includes solder terminals made of copper alloy with silver plating to ensure excellent electrical conductivity and durability. Its chrome plated actuator adds corrosion resistance and an attractive finish, while the IP67 rating guarantees that the switch is dust tight and protected against water immersion, making it ideal for harsh industrial environments.

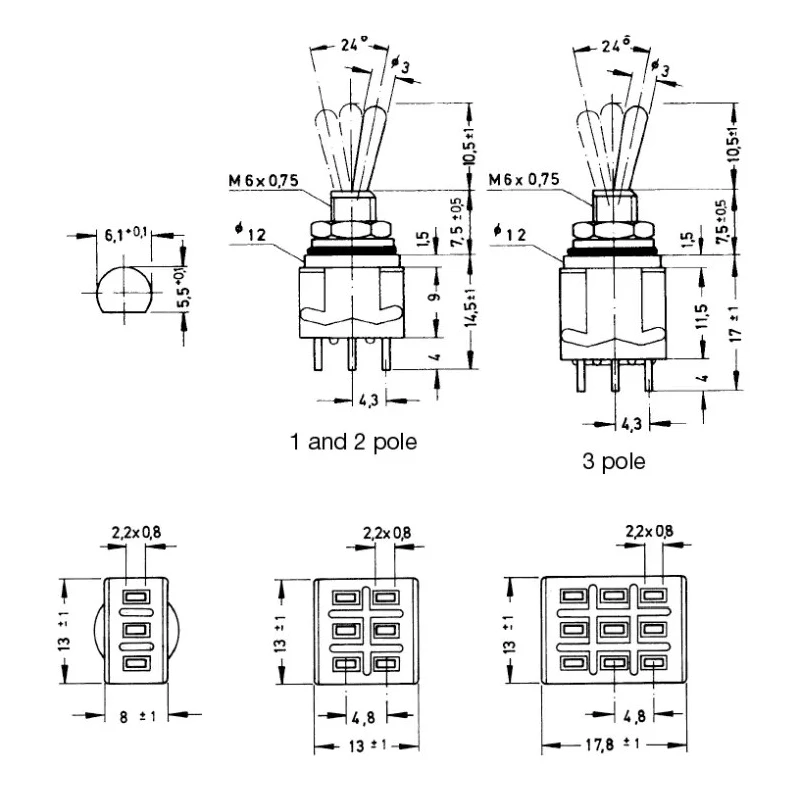

The compact actuator length of 10.5 mm and panel cutout size of 6.1 x 5.5 mm facilitate easy installation within panels up to 1.5 mm in thickness. It operates reliably within temperature ranges from -45°C to 140°C and boasts a mechanical life expectancy of 100,000 operations, ensuring long-term performance in demanding applications.

This toggle switch is RoHS and UL certified, ensuring compliance with stringent environmental and safety requirements. Its dimension profile includes a height of 32.5 mm, width and length both at 13 mm, making it suitable for deployment in compact control panels and electrical assemblies.

The MTE series from KNITTER-SWITCH is well-regarded for its rugged reliability and precision, supporting applications in industrial automation, electrical controls, machinery, instrumentation, and panel-mounted switching needs. This model is manufactured in China to meet global quality standards.

Designed for panel mounting with a 6.1 x 5.5 mm cutout size. Dual Pole Double Throw (DPDT) configuration with On-On switch operation. Equipped with solder terminals for reliable connections. Operating temperature range from -45°C to 140°C.

High ingress protection rating of IP67 ensuring water and dust resistance. Chrome plated actuator enhances durability and corrosion resistance. Compact size with dimensions approximately 13 mm width, 32.5 mm height, and 13 mm length.

Long mechanical life of 100,000 operations for extended reliability. RoHS and UL compliant meeting international safety and environmental standards. Explore more high-quality Toggle Switches and panel mount controls in the Electronics & Electricals category at EnvMart.
