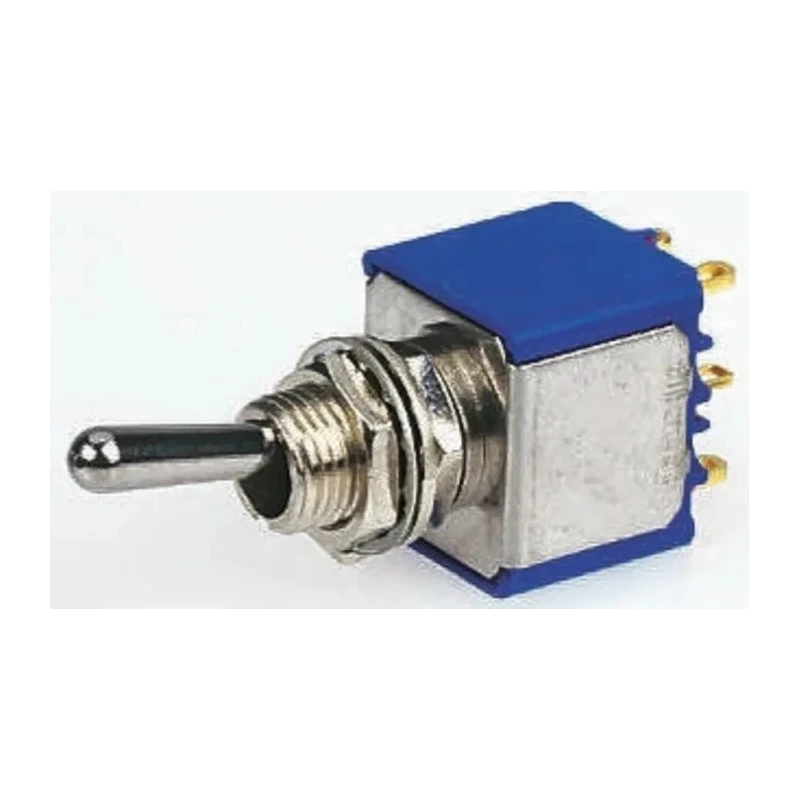

APEM Toggle Switch Panel Mount On-Off-On 3PDT Solder Terminal 30V dc 250V ac 5659A

APEM 5659A Toggle Switch is a panel mount device featuring an On-Off-On switch operation and a 3PDT contact configuration. It is designed for industrial and commercial electrical applications requiring reliable switching capabilities.

This toggle switch provides a rated contact current of 4A and supports AC voltages up to 250V as well as DC voltages up to 30V, making it suitable for diverse electrical circuits. The switch incorporates a brass actuator with an insulated diallyl phthalate case enhancing mechanical strength and electrical safety.

Its panel mount design with a 6.5 mm cutout ensures ease of installation and secure fitting. The compact physical dimensions (21.2 mm length, 13.2 mm width, 35.3 mm height) and actuator length of 10.5 mm allow integration into control panels and automation devices without occupying excessive space.

APEM 5659A is built to handle demanding environments with an operating temperature range from -40°C to 85°C and a robust mechanical life rating of 100,000 operations, ensuring extended service life in industrial, laboratory, automation, and electrical control applications.

Termination is via solder terminals providing strong and reliable electrical connections. The product complies with recognized standards and approvals including UL, RoHS, CSA, and CECC, highlighting its quality and safety parameters.

This toggle switch is ideally suited for industrial automation systems, electrical control panels, manufacturing equipment, and maintenance applications requiring precise and dependable switching functionality.

Offers a 3 Pole Double Throw (3PDT) contact configuration for complex switching needs. Operates with On-Off-On switch operation providing two active ON positions and an OFF position. Supports a switch contact current of 4 amperes for moderate electrical loads.

Panel mount design with a 6.5 mm panel cutout ensures secure and stable installation. Equipped with brass actuator material and diallyl phthalate casing for durability and insulation. Suitable for AC voltages up to 250V and DC voltages up to 30V, compatible with varied power sources.

Specified mechanical life of 100,000 operations for long-lasting performance. Designed to operate within a temperature range of -40°C to 85°C ensuring reliability in harsh conditions. Features solder terminal type for robust electrical connections.

Compact dimensions: length 21.2 mm, width 13.2 mm, height 35.3 mm with an actuator length of 10.5 mm. Explore more APEM Toggle Switches and related electrical components at EnvMart for industrial and automation solutions.
