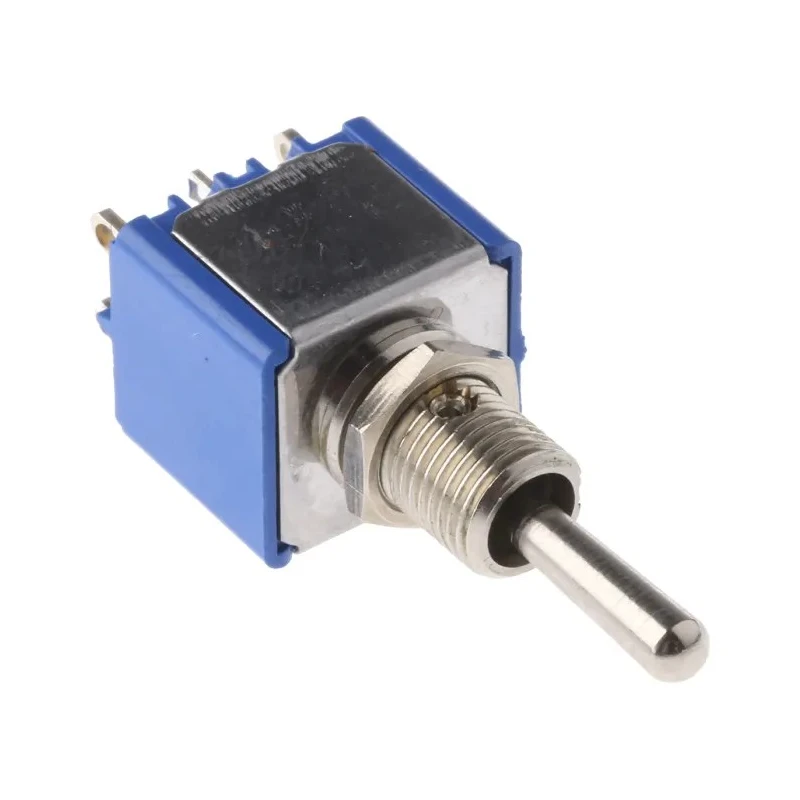

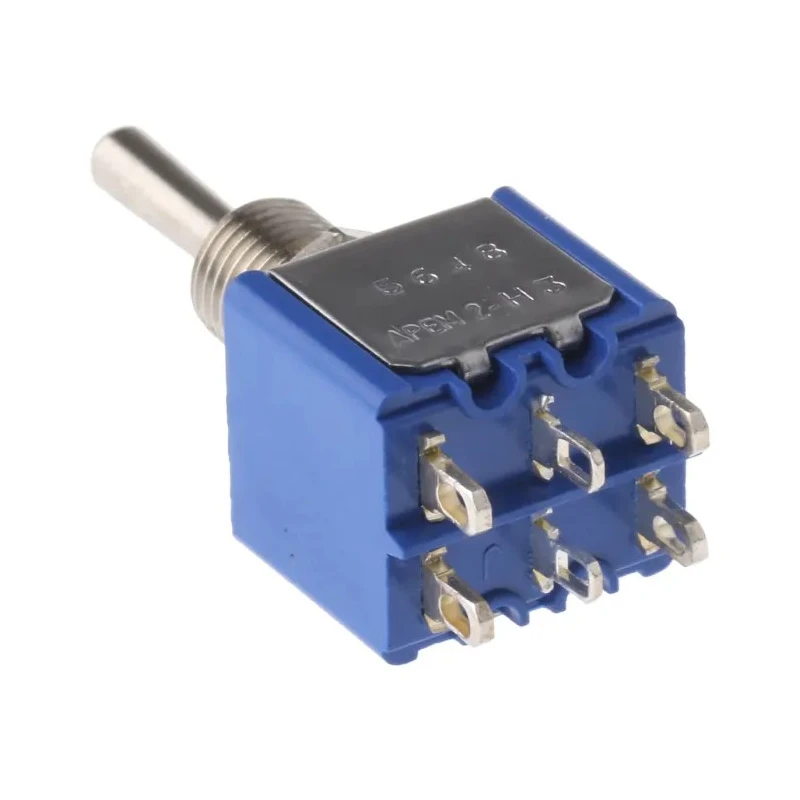

APEM Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 30V dc 250V ac 5648A

The APEM 5648A toggle switch is a panel mount type with On-Off-On switch operation and a Double Pole Double Throw (DPDT) contact configuration. It is designed to handle electrical switching applications with voltage ratings of 30V dc and 250V ac, supporting a contact current of up to 4A. This robust switch features a brass actuator providing reliable mechanical engagement and a diallyl phthalate casing for durable insulation and environmental resistance.

Its panel cutout dimension is 6.5 mm, and the actuator length measures 10.5 mm, making it suitable for compact installations. The switch is engineered to withstand operating temperatures ranging from -40°C to 85°C, which makes it highly adaptable to demanding industrial and electrical environments. Key dimensions are 34.2 mm in height, 13.2 mm in length, and 12 mm in width, which ease integration in control panels and equipment.

With an impressive mechanical lifespan of 100,000 operations, the APEM 5648A switch is reliable for long-term industrial, automation, electrical control, and instrumentation applications. The switch employs solder terminals for secure connections and is not illuminated, focusing on straightforward manual control.

This toggle switch conforms to international safety and quality standards including CECC, CSA, RoHS, and UL, ensuring compliance for various markets. Originating from France, it meets high manufacturing standards suitable for industrial automation, manufacturing equipment, and control panel assemblies.

Ideal for use in electrical circuits requiring careful switching with DPDT functionality, this switch supports on-off-on switching modes, including a momentary '(On)' biased position for precise control tasks.

This toggle switch features a panel mounting type and solder terminals for connections. The switch supports a contact current of 4A for reliable switching performance. It has a panel cutout size of 6.5 mm with a brass actuator of 10.5 mm length.

Designed to operate between temperatures of -40°C to 85°C for versatility in environments. The switch features a durable construction including brass actuator and diallyl phthalate case material. Mechanical life is rated at 100,000 operations, ensuring longevity in industrial applications.

Compliance with regulatory standards such as CECC, CSA, RoHS, and UL certifies its quality and safety. The compact dimensions include a height of 34.2 mm, length 13.2 mm, and width 12 mm suitable for tight panel spaces. Made in France, suitable for industries requiring precise manual switch control.
