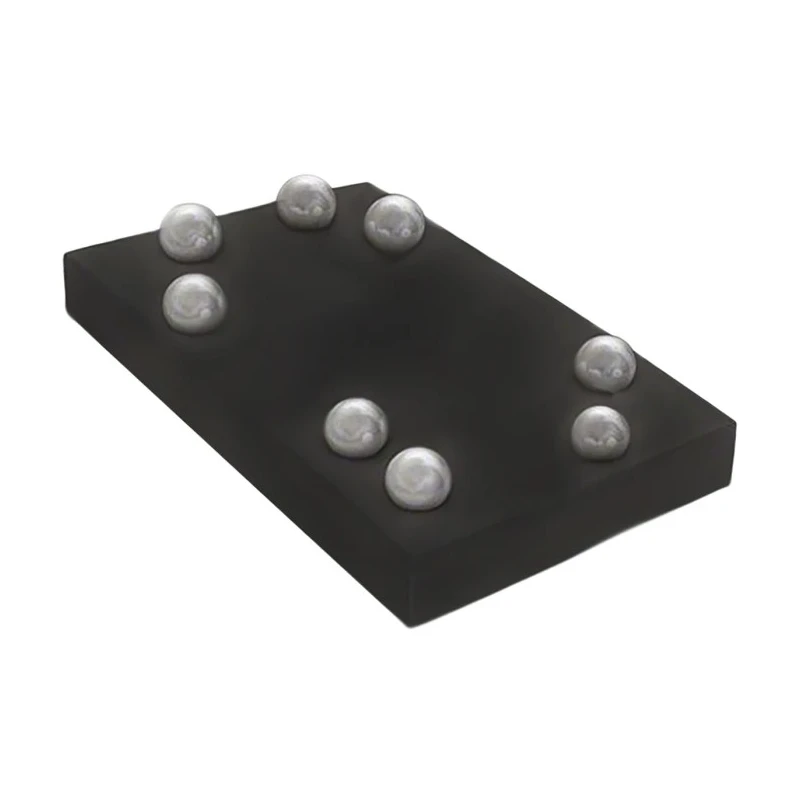

STMicroelectronics 2 MB EEPROM 8-Pin WLCSP Serial-I2C 450 ns Access Time M24M02-DRCS6TP/K

STMicroelectronics M24M02-DRCS6TP/K is a high performance 2 megabyte electrically erasable programmable read-only memory (EEPROM) device using a Serial-I2C interface. Packaged in an 8-pin WLCSP surface mount format, it is designed for compact applications requiring reliable non-volatile memory solutions.

The device supports a wide range of supply voltages from 1.8 V to 5.5 V, making it suitable for diverse electronic applications including automotive, industrial, and consumer electronics. Its maximum random access time of 450 ns and clock frequency up to 1 MHz ensure fast data access and communication efficiency.

With a data retention capability of up to 200 years and compliance with AEC-Q100 automotive standard, this EEPROM guarantees long-term data integrity and reliability in harsh environments. It operates effectively within a wide temperature range of -40°C to 85°C, suited for industrial and automotive GPU embedded systems, manufacturing equipment, and control units.

The compact WLCSP package measures 3.6 mm in length, 2.01 mm in width, and 580 μm in height, providing designers with space-saving advantages and high integration density. The device’s 8-bit word organization and 256k x 8 bit memory structure allow for efficient data storage and manipulation.

Features a memory size of 2 megabytes suitable for high-density data storage. Utilizes Serial-I2C interface for efficient communication with microcontrollers. Comes in an 8-pin WLCSP surface mount package optimized for compact device integration.

Supports a maximum clock frequency of 1 MHz compliant with I2C standards. Operating voltage ranges from 1.8 V minimum to 5.5 V maximum for broad application compatibility. Has exceptional data retention of up to 200 years, ensuring long-term reliability.

Designed for operation in temperatures from -40°C to 85°C, suitable for automotive and industrial environments. Complies with RoHS 2011/65/EU environmental standards and AEC-Q100 automotive standard. Minimal supply current of 2.5 mA for energy-efficient operation.

Compact dimensions with 3.6mm length, 2.01mm width, and 580μm height offer space-saving benefits.

This EEPROM device is ideal for applications in Industrial, Automotive, Manufacturing, and Electronic Systems requiring robust and long-lasting non-volatile memory solutions. It improves production efficiency when supplied on reels ready for assembly. STMicroelectronics' proven technology supports reliable and efficient memory performance in demanding embedded systems.
