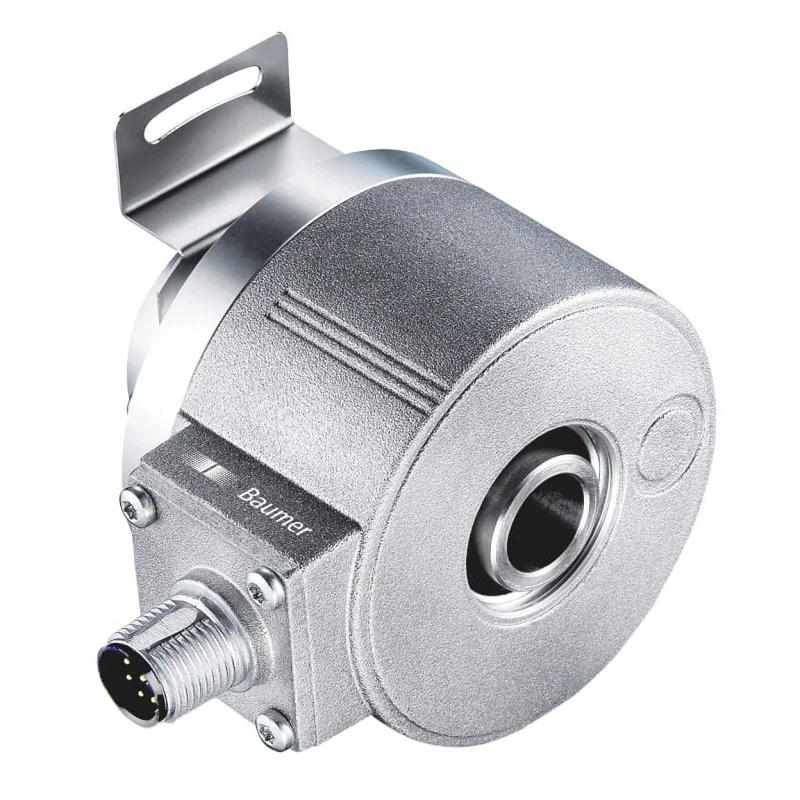

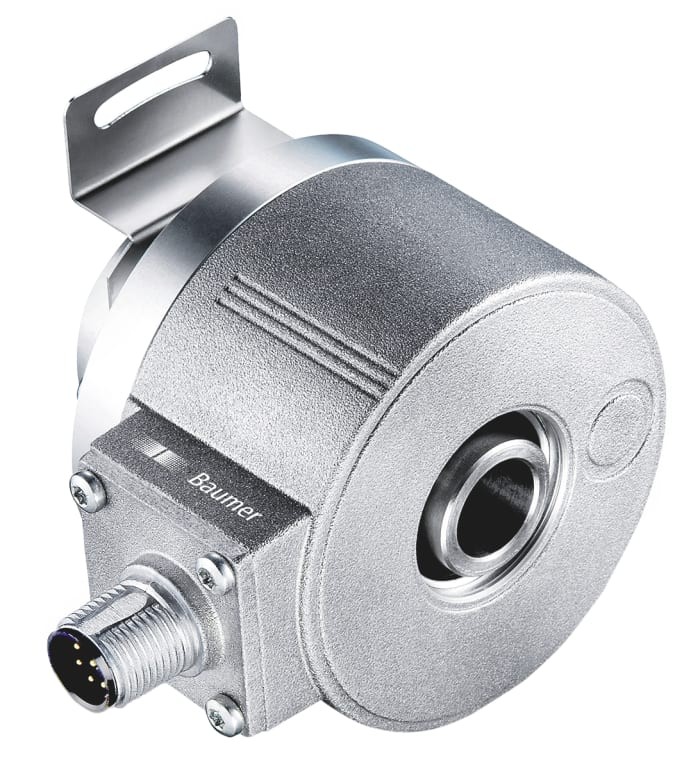

Baumer Optical Incremental Encoder EIL580 Series Hollow Shaft Flange Mount 12 mm Shaft Diameter 1000 EIL580-TT12.5BN.01000.A

Baumer EIL580-TT12.5BN.01000.A Optical Incremental Encoder is a high-precision motion control sensor suited for industrial, automation, and manufacturing environments. It features Optical Encoder technology integrated in the robust EIL580 series design with hollow shaft flange mounting. This encoder is designed to deliver reliable incremental encoding with 1000 pulses per revolution and HTL Push Pull output signals, suitable for various automated machinery requiring accurate position feedback.

The encoder operates optimally within a voltage supply of up to 30V and withstands operational temperatures ranging from -40°C to 85°C, ensuring functional stability in varied industrial settings. Its mechanical construction utilizes a die-cast aluminium housing for enhanced resistance against mechanical shock and vibrations. Electrical connectivity is facilitated through an M12 flange connector, supporting secure and reliable terminal connections.

Key physical dimensions enable compatibility with compact machinery installations, with overall size metrics of 58 mm width, 70 mm height, and 41 mm depth. The hollow shaft diameter measures 12 mm, making it suitable for shaft coupling in precision equipment. The encoder supports speeds up to 6000 rpm and a switching frequency of 300 kHz that caters to high-speed applications.

Rated with IP65 ingress protection, this encoder is fit for environments exposed to dust and low-pressure water jets, enhancing operational reliability in industrial and outdoor settings. The product complies with UL standards, reflecting adherence to safety and quality benchmarks. Manufactured in Germany, it represents high engineering standards in sensor technology.

This encoder is ideal for integration into automation and control systems, robotics, CNC machines, packaging lines, and other equipment that demand precise rotary position sensing. For engineers and system designers requiring dependable incremental encoders with precise optical technology and robust build quality, the Baumer EIL580-TT12.5BN.01000.A is a premium solution.

This encoder has a hollow shaft flange mount for straightforward installation. The device provides 1000 pulses per revolution for high-resolution motion control. Output signal types include HTL and Push Pull for reliable signal transmission.

It supports a maximum revolution speed of 6000 rpm, suitable for dynamic operations. Constructed with a die-cast aluminium housing ensuring durability and vibration resistance. The encoder meets an IP65 protection rating for use in harsh industrial environments.

Temperature operating range spans from -40°C to 85°C to cover a variety of working conditions. Equipped with an M12 flange connector for secure and standardized electrical interfacing. Compact dimensions of 58 mm width, 70 mm height, and 41 mm depth facilitate installation in tight spaces.

Designed and manufactured in Germany adhering to UL standards for quality assurance. Explore more Baumer sensors and encoders on EnvMart for advanced industrial automation and control solutions.
