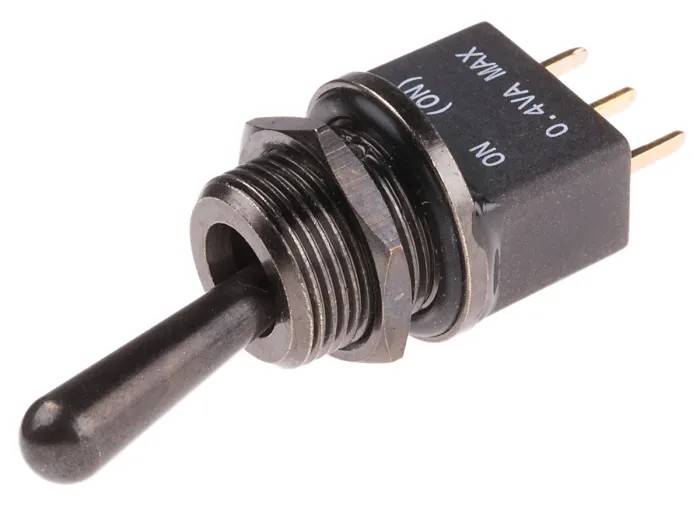

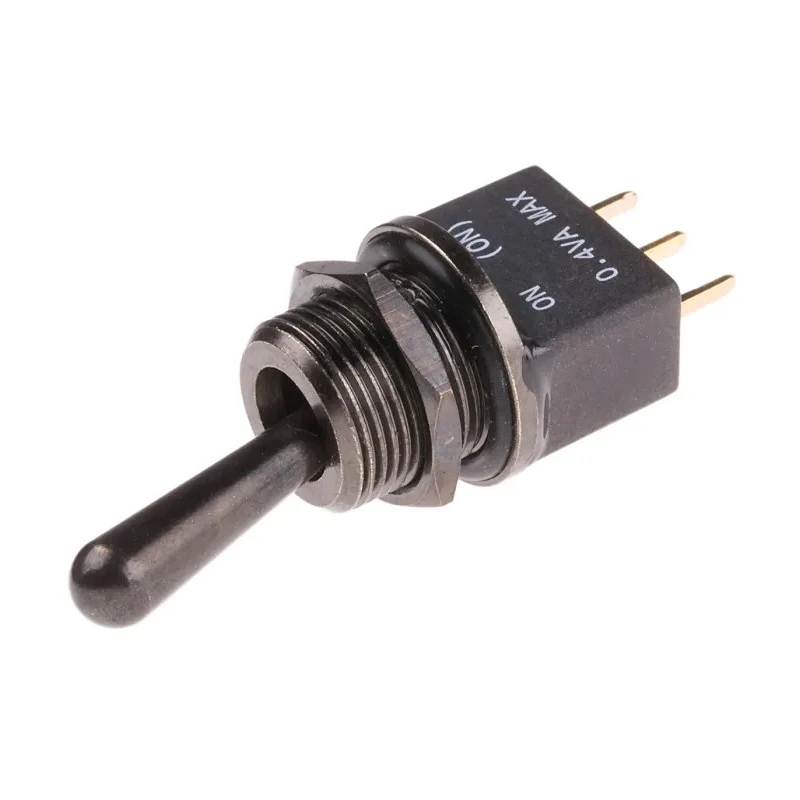

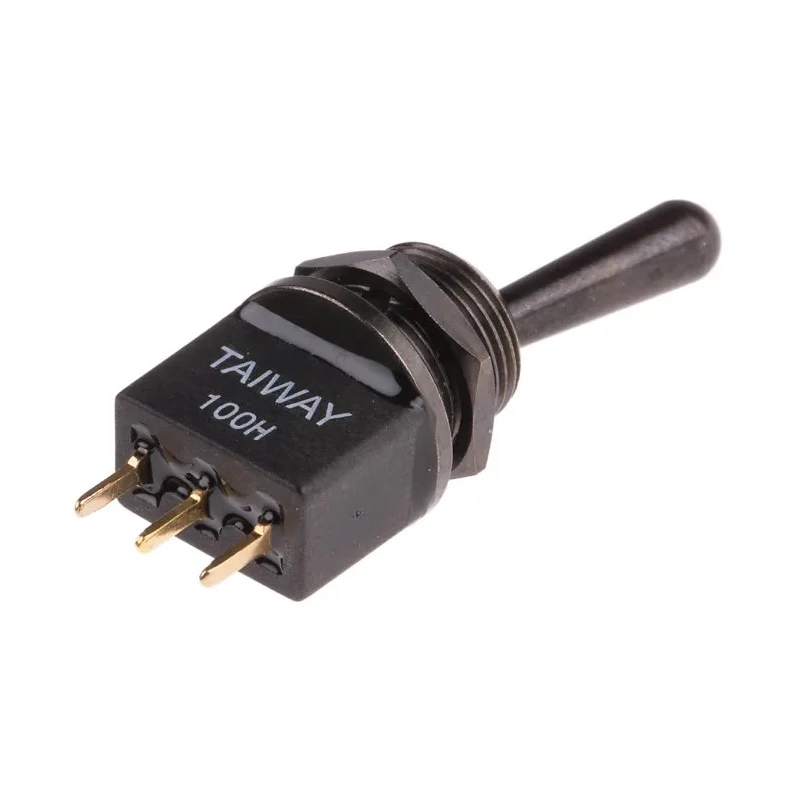

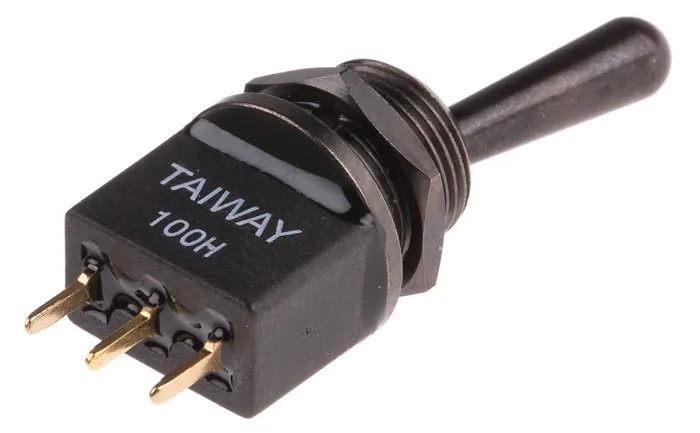

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 20 V dc 20 V ac 820-0532
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 39.8mm |
| Length | 16mm |
| Model | 820-0532 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-On |
| Actuator Length | 18mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch features a double shell case with IP67 sealing ensuring high mechanical strength and excellent insulation.
- It comes with a brass actuator and a two O-ring frontal seal plus a fully sealed rear for protection against flowing water.
- Designed with a SPDT contact configuration and On-On switch operation for versatile circuit control.
- Suitable for PCB mounting with through-hole terminals for stable installation.
- Applied in both low-level switching down to 10μA at 5 Vdc and power switching up to 3A at 250Vac.
- It meets MIL-STD-202F standards and offers a mechanical life rated at 50000 cycles for long-term durability.
- Compact dimensions of 39.8mm height, 16mm length, and 14.48mm width fit small electronic assemblies.
- Operates reliably in temperatures from -30°C to 85°C for use in demanding environments.
Product Description
RS PRO 820-0532 is a high-quality toggle switch designed for PCB mounting with an On-On switching operation and SPDT contact configuration. Rated for 20 V dc and 20 V ac, it provides reliable circuit switching in various electronic and industrial applications.
This model features a fully sealed double shell case with IP67 rating, ensuring protection against dust and flowing water. The brass actuator is complemented by two O-ring frontal seals and a sealed rear, giving exceptional mechanical strength and electrical insulation.
Its electrical rating supports both low level switching as low as 10μA at 5Vdc and high-power applications up to 3A at 250Vac, making it versatile for a wide range of uses.
The switch is designed with through-hole terminals suitable for PCB mounting and meets the MIL-STD-202F standard for robust mechanical and environmental performance. With a mechanical life of 50000 cycles, it delivers long-term durability in industrial, electrical, and automation environments.
The compact dimensions (39.8 mm height, 16 mm length, 14.48 mm width) allow integration in tight spaces. This switch operates reliably in temperatures ranging from -30°C to 85°C, suitable for demanding conditions.
This toggle switch ensures high operational reliability with IP67 sealing. Brass actuator and sealed design extend durability and insulation. SPDT and On-On configuration for flexible circuit control. Supports low current to power switching applications.
Meets MIL-STD-202F for standards compliance. Mechanical life rated at 50000 cycles for long use. Compact size for PCB mounting and small-scale electronics. Operating temperature range supports harsh environments. Manufactured in Taiwan offering quality assurance.
Ideal for use in industrial automation, electrical equipment, and other electronics requiring a robust and reliable Toggle Switch. Browse the RS PRO brand for more quality electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has an IP67 rating, providing protection against dust and flowing water.
It features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit control.
The maximum current rating for this toggle switch is 400mA.
The switch has dimensions of 39.8mm in height, 16mm in length, and 14.48mm in width.
It operates reliably in temperatures ranging from -30°C to 85°C.
The mechanical life of this model is rated at 50,000 cycles.
It is designed with through-hole terminals suitable for PCB mounting.
It supports contact voltages of 20V DC and 20V AC.
The actuator is made of brass, providing good mechanical strength and electrical insulation.
Yes, it meets the MIL-STD-202F standards for robust mechanical and environmental performance.
This model features an On-On switch operation for flexible circuit control.
It is manufactured in Taiwan, ensuring quality assurance.
