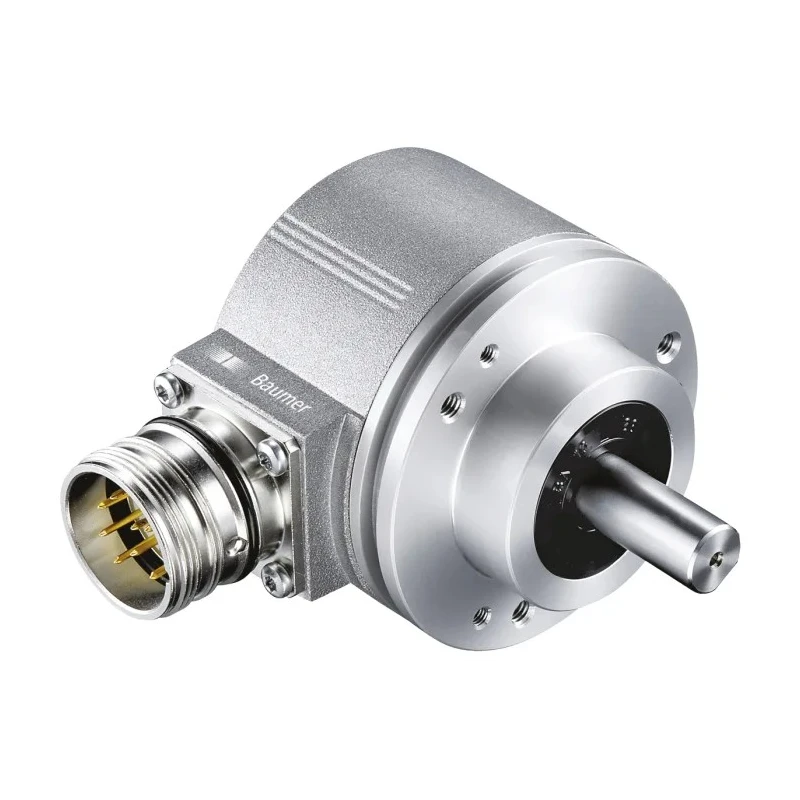

Baumer Optical Incremental Encoder 30V dc, 65536 PPR, TTL/HTL Signal, Solid Shaft 10mm EIL580P

Baumer EIL580P Optical Incremental Encoder is a high-precision sensor designed for motion control applications, providing reliable position feedback with an optical encoder technology. Operating at 30V dc and delivering 65536 pulses per revolution (PPR), this encoder features TTL/HTL output signals for compatibility with various industrial interfaces.

The solid shaft has a 10 mm diameter, crafted from stainless steel for enhanced mechanical robustness. Its die-cast aluminum housing ensures durability and resistance to mechanical stresses. With an IP65 rating, it offers protection against dust and water jets, making it suitable for demanding industrial environments.

Designed for versatility, the encoder supports a wide operating temperature range from -40°C up to 100°C, allowing deployment in extreme temperature conditions. It supports maximum speeds up to 12000 rpm, making it ideal for high-speed rotational measurements.

Electrical connection is facilitated via an M12 flange connector, ensuring secure and reliable interfacing. The clamping flange mount enables stable installation in compact spaces with the overall dimensions being 58 mm width, 63 mm height, and 48 mm depth.

This model meets UL certification standards, underscoring its quality and compliance for industrial automation. Manufactured in Germany, the EIL580P encoder is designed for laboratory, manufacturing, automation, and industrial machinery use cases where precision rotary encoding is essential.

Encoder technology utilizes precise optical sensing for accurate position feedback. Supports a maximum speed of 12000 rpm for high-speed applications. Equipped with an M12 flange connector for secure electrical interfacing.

Designed with stainless steel solid shaft and die-cast aluminum housing for durability. IP65 rated for protection against dust and water jets, suitable for harsh environments. Operating temperature range from -40°C to 100°C ensures reliability in extreme conditions.

Compact dimensions with 58 mm width, 63 mm height, and 48 mm depth for easy mounting. Mount type: Clamping flange mount allows secure installation. Complies with UL standards for safe industrial use. Manufactured in Germany guaranteeing high quality and precision.
