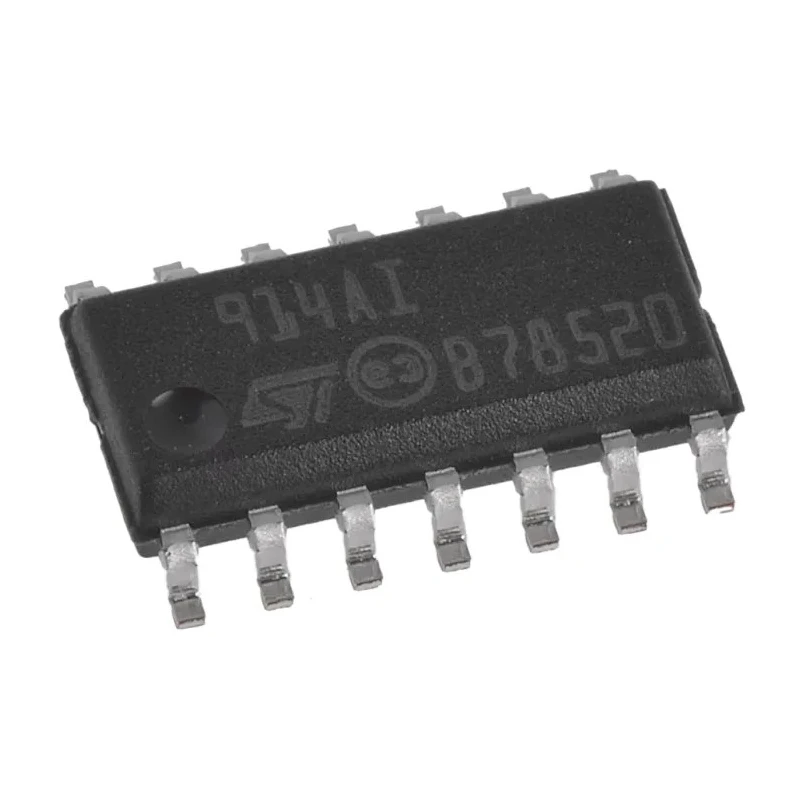

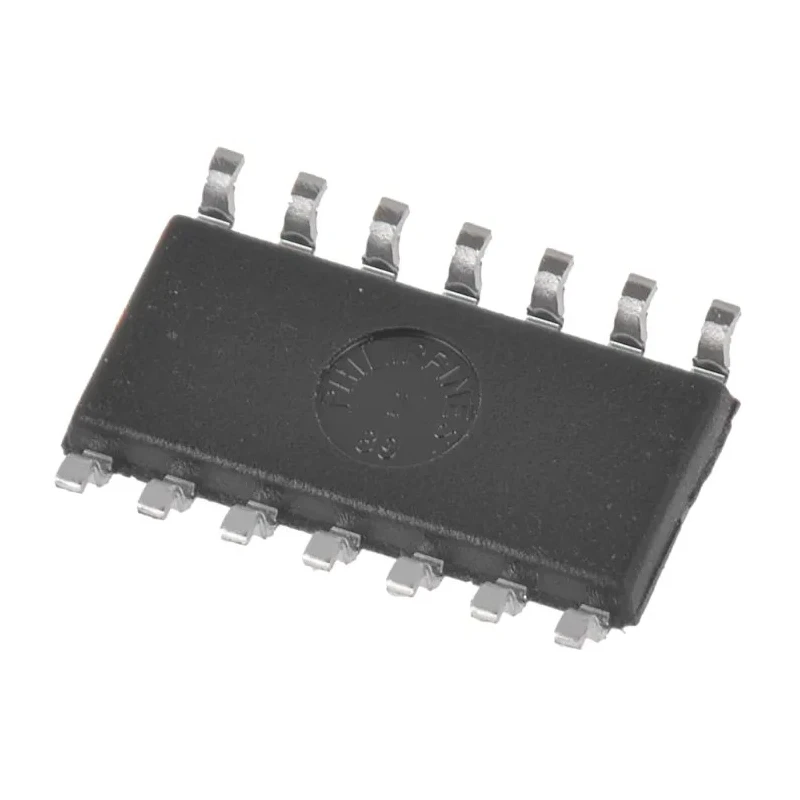

STMicroelectronics Operational Amplifier 800 kHz 16 V 14-Pin SOIC TS914AID
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 4mm |
| Model | TS914AID |
| Width | 8.75mm |
| Mount Type | Surface |
| Series | TS914A |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 800kHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 200 pA |
| Low input bias current | 1 pA typical |
Key Features
- This amplifier supports four channels with low power consumption operation.
- Features rail-to-rail input and output voltage ranges for flexible supply operation.
- Operates on single or dual supply voltage from 2.7 V to 16 V.
- Low input bias current and offset voltage improve signal accuracy.
- Designed for use in automotive and industrial applications meeting AEC-Q100 standard.
- Compact 14-pin SOIC surface mount package measuring 4 mm length and 8.75 mm width.
- Wide operating temperature range from -40°C to 125°C ensures robustness.
- Typical slew rate of 0.5 V/μs suitable for varied signal bandwidths.
Product Description
STMicroelectronics TS914AID is a high-performance operational amplifier with a gain bandwidth of 800 kHz, designed for advanced electronic applications. It comes in a surface mount SOIC package with 14 pins, measuring 4 mm in length, 8.75 mm in width, and 1.65 mm in height, enabling compact PCB layouts.
This device supports four independent amplifier channels and operates efficiently with single or dual power supplies ranging from 2.7 V up to 16 V. The device features rail-to-rail input and output voltage ranges, allowing for maximum signal swing and improved dynamic range in low power applications.
Low input bias current (typical 1 pA) and low offset voltage (5 mV max for A grade) contribute to precision signal amplification, making it suitable for sensitive sensor conditioning and instrumentation circuits. The slew rate of 0.5 V/μ s and output current capability of 40 mA ensure good transient response and drive capability for diverse connected loads.
The TS914AID complies with the automotive AEC-Q100 standard, indicating robustness and reliability for automotive and industrial system integration. It is RoHS compliant, supporting environmentally friendly manufacturing requirements.
Four channels in a single compact package. Wide supply voltage range from 2.7 V to 16 V. Rail-to-rail input/output for maximum signal range. Low input bias current and low offset voltage for accuracy. Slew rate of 0.5 V/μ s for good signal fidelity.
Meets automotive AEC-Q100 quality standards. Compact 14-pin SOIC surface mount packaging.
This operational amplifier is ideal for industrial, automotive, sensor, and measurement system applications that require low noise, high precision, and flexible power supply arrangements. Its compact size and multi-channel architecture facilitate integration into high-density electronics.
Explore more Operational Amplifiers and semiconductor components at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product (GBP) of the TS914AID operational amplifier is 800 kHz.
This model operates on a supply voltage range from 2.7 V to 16 V.
The TS914AID features four independent amplifier channels.
The input offset voltage for the A grade is a maximum of 5 mV.
This operational amplifier can provide an output current of up to 40 mA.
The TS914AID comes in a 14-pin SOIC package measuring 4 mm in length, 8.75 mm in width, and 1.65 mm in height.
The typical input bias current for the TS914AID is 1 pA.
This operational amplifier operates over a wide temperature range from -40°C to 125°C.
The TS914AID is designed for surface mounting.
Yes, the TS914AID complies with the automotive AEC-Q100 standard.
The slew rate of this operational amplifier is 0.5 V/μs.
Yes, the TS914AID is RoHS compliant, supporting environmentally friendly manufacturing requirements.
