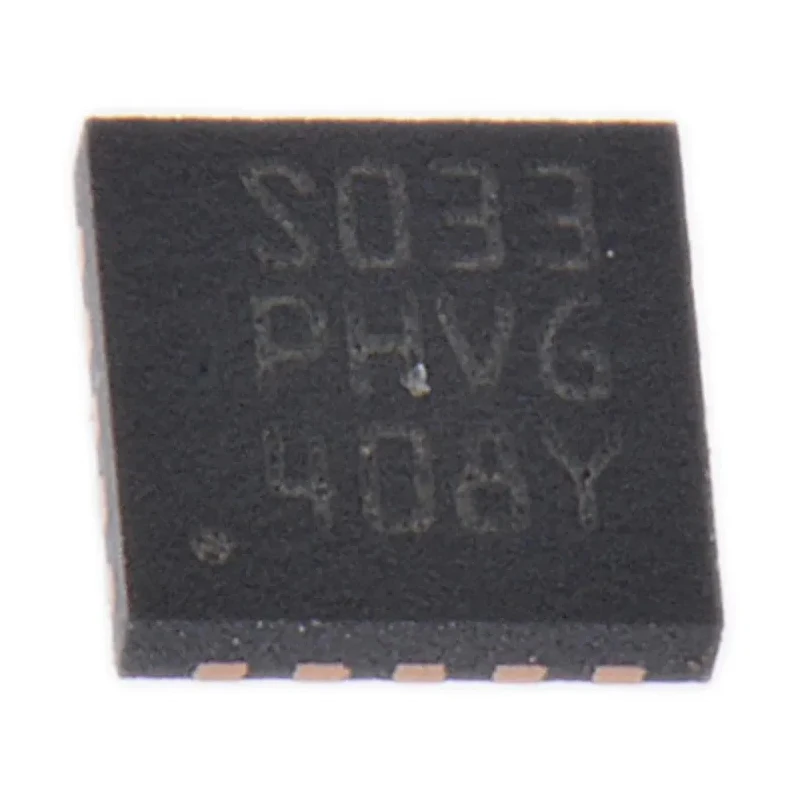

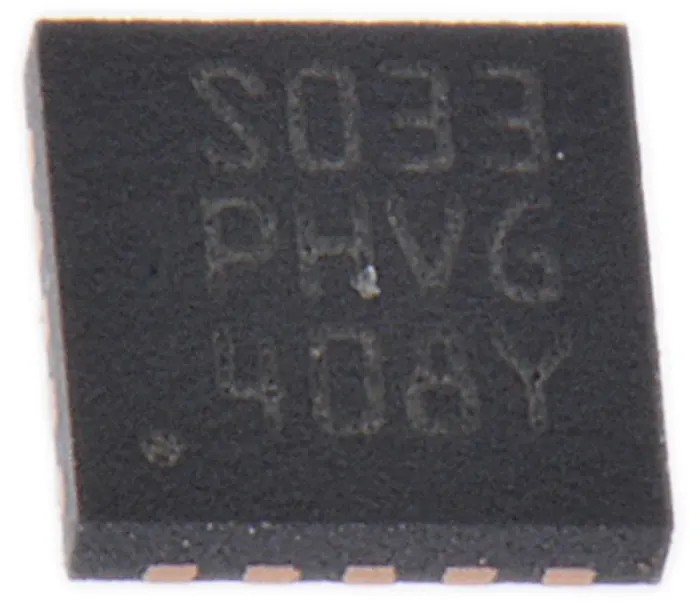

STMicroelectronics 8-Bit STM8S Microcontroller STM8S003F3U6TR, 16 MHz, 8 kB FLASH, 1 kB RAM, 20-Pin UFQFPN STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 550μm |
| Length | 3mm |
| Model | STM8 |
| Width | 3mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 85°C |
| Package Type | UFQFPN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 330mW |
| Minimum Supply Voltage | 2.95V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 28 |
| Number of Timers | 3 |
| Instruction Set Architecture | CISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Advanced 8-bit STM8 core architecture delivers efficient processing.
- 16 MHz maximum clock frequency supports moderate-speed applications.
- 8 kB FLASH memory enables convenient program storage.
- 1 kB RAM provides ample data storage for embedded computing.
- Operates with a supply voltage range of 2.95 V to 5.5 V.
- Surface mount UFQFPN package with 20 pins supports compact PCB designs.
- Maximum power dissipation of 330 mW ensures reliable thermal performance.
- Equipped with 28 programmable input/output lines for diverse peripheral control.
Product Description
STMicroelectronics STM8S003F3U6TR is an 8-bit microcontroller from the STM8S series, designed with an advanced STM8 core architecture featuring a 3-stage pipeline. This microcontroller operates at a maximum clock frequency of 16 MHz, providing efficient and reliable performance for embedded applications.
The device incorporates 8 kB of programmable FLASH memory for code storage and 1 kB of RAM for data handling. It supports a wide operating voltage range from 2.95 V up to 5.5 V, with a maximum power dissipation rating of 330 mW, ensuring stable operation under various conditions.

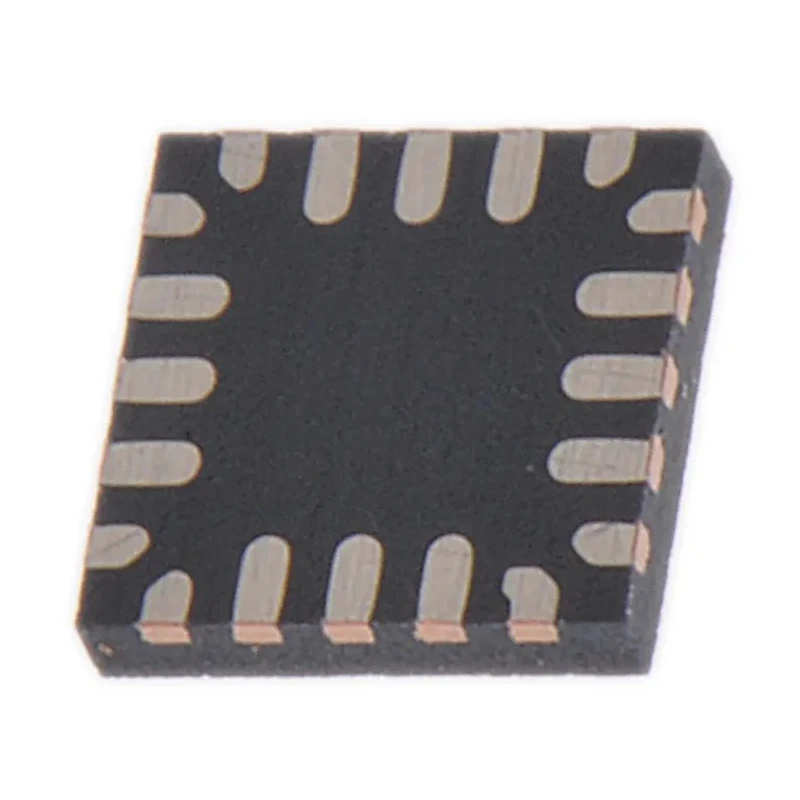

Housed in a small 20-pin UFQFPN surface-mount package measuring 3 mm in length, width, and with a height of 550 μm, the STM8S003F3U6TR is suited for space-constrained PCB layouts. It offers 28 programmable input/output pins, three timers, and five 10-bit analog-to-digital converters, making it versatile for control and monitoring tasks.
The component is RoHS compliant and designed to operate effectively within an industrial temperature range of -40°C to 85°C. It supports the CISC instruction set architecture, providing compatibility with a wide range of embedded software and tools.
Typical applications include industrial control, consumer electronics, and commercial embedded systems requiring a compact, low-power 8-bit microcontroller with reliable performance and flexible I/O options.
Advanced STM8 8-bit core with 3-stage pipeline. 16 MHz maximum clock frequency for responsive operation. 8 kB FLASH memory and 1 kB RAM for program and data storage. 28 programmable I/O pins for versatile interfacing. Includes 3 timers and 5 ADC channels with 10-bit resolution.
Compact 20-pin UFQFPN surface mount package (3x3 mm, 550 μm height). Operating temperature range from -40°C to 85°C for industrial use. Power dissipation max 330 mW ensuring thermal reliability. Wide supply voltage range 2.95 V to 5.5 V.
Compliant with RoHS standards. Explore more from STMicroelectronics Microcontrollers and enhance your embedded system designs with reliable performance and compact form factors available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8S003F3U6TR operates at a maximum clock frequency of 16 MHz.
This model features 8 kB of FLASH memory for program storage and 1 kB of RAM for data handling.
It operates within a supply voltage range of 2.95 V to 5.5 V.
This unit is equipped with 28 programmable input/output pins for versatile interfacing.
It comes in a 20-pin UFQFPN surface mount package, measuring 3 mm x 3 mm.
The operating temperature range is from -40°C to 85°C, suitable for industrial applications.
The maximum power dissipation of this model is rated at 330 mW.
Typical applications include industrial control, consumer electronics, and commercial embedded systems.
This microcontroller includes three timers for various timing applications.
It features five 10-bit analog-to-digital converters (ADCs) for precise data acquisition.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The device utilizes a CISC instruction set architecture, providing compatibility with a wide range of embedded software.
