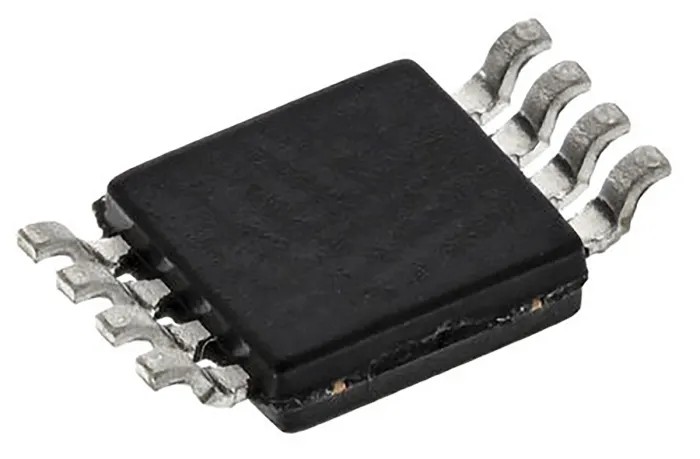

STMicroelectronics Operational Amplifier 10 MHz, 8-Pin MSOP, Dual Channel, 4-16V TSX922IST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.95mm |
| Length | 3.2mm |
| Model | TSX922IST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSX922 |
| Output Current | 13mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 200 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 19.6V/μs |
| ESD high tolerance | 4 kV (HBM) |
| Gain bandwidth product | 10 MHz typical (16 V) |
| Extended temperature range | -40°C to +125°C |
Key Features
- The device operates with a supply voltage from 4 V to 16 V.
- It features a gain bandwidth product of 10 MHz at 16 V, suitable for high-speed applications.
- The amplifier offers a low input bias current of 200 pA and an input offset voltage of 5 mV.
- It comes in a compact MSOP package with dimensions 3.2 mm length, 3.1 mm width, and 0.95 mm height.
- The product is qualified to the automotive standard AEC-Q100, ensuring reliability over extended temperature ranges.
- Maximum operating temperature ranges from -40°C up to 125°C for harsh environments.
- It provides a slew rate of 19.6 V/μs and output current capability of 13 mA.
- The TSX922IST includes ESD tolerance of 4 kV (HBM) for enhanced robustness.
Product Description
The STMicroelectronics TSX922IST is a dual-channel operational amplifier designed for precision and high-performance applications. It is supplied in an 8-pin MSOP surface mount package, optimized for space-constrained electronic designs.
With a gain bandwidth product of 10 MHz at a 16 V supply, the TSX922IST fulfills demands for fast and reliable signal amplification. The low input bias current of 200 pA and input offset voltage of 5 mV make it ideal for sensitive analog circuits.
Operating voltage spans from 4 V to 16 V, with an extended temperature range from -40°C to 125°C, meeting stringent automotive standards under AEC-Q100 qualification. This robustness ensures stability and consistent operation in harsh environments and automotive applications.
The device features a slew rate of 19.6 V/μs, allowing rapid voltage changes at its output and a maximal output current of 13 mA, providing broad application versatility.
The small form factor MSOP package measures 3.2 mm in length, 3.1 mm in width, and 0.95 mm in height, suitable for compact circuit board layouts. Additionally, a high ESD tolerance of 4 kV (HBM) enhances device reliability against electrostatic discharge events.
The operational amplifier delivers rail-to-rail input and output for enhanced dynamic range. Designed for installation in various industrial, automotive, instrumentation, and semiconductor applications requiring reliable analog amplification.
Extensive use cases include automotive sensors, portable instrumentation, and precise signal conditioning circuits. The TSX922IST conforms to RoHS standards ensuring compliance with environmental directives. Ideal for engineers and designers seeking compact, high-speed, and robust dual operational amplifier solutions.
Explore further Operational Amplifiers and semiconductor components in the Electronics & Electricals category on EnvMart to find complementary devices for your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz at a 16 V supply.
It features a low input bias current of 200 pA, making it suitable for sensitive applications.
The maximum operating temperature for this operational amplifier is 125°C, allowing it to function in harsh environments.
This model operates with a supply voltage ranging from 4 V to 16 V.
The operational amplifier comes in an 8-pin MSOP package with dimensions of 3.2 mm in length, 3.1 mm in width, and 0.95 mm in height.
It has an output current capability of 13 mA, providing versatility for various applications.
The input offset voltage for the TSX922IST is 5 mV, which is beneficial for precision applications.
This operational amplifier features a slew rate of 19.6 V/μs, allowing for rapid voltage changes at its output.
It is qualified to the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The device has an ESD tolerance of 4 kV (HBM), enhancing its robustness against electrostatic discharge.
The minimum operating temperature for this model is -40°C, suitable for extreme conditions.
Yes, it conforms to RoHS standards, ensuring compliance with environmental directives.
