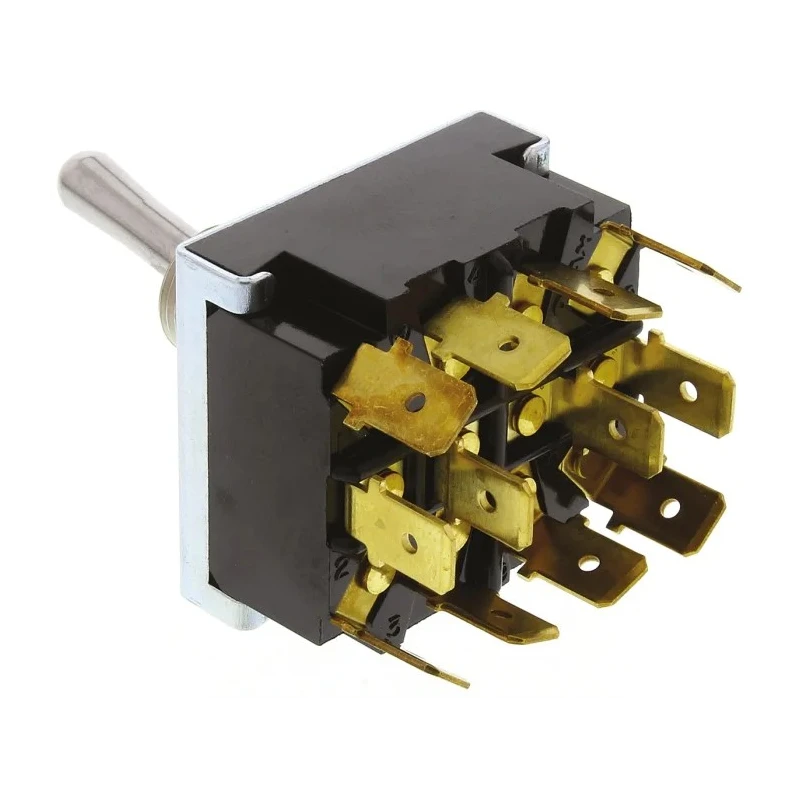

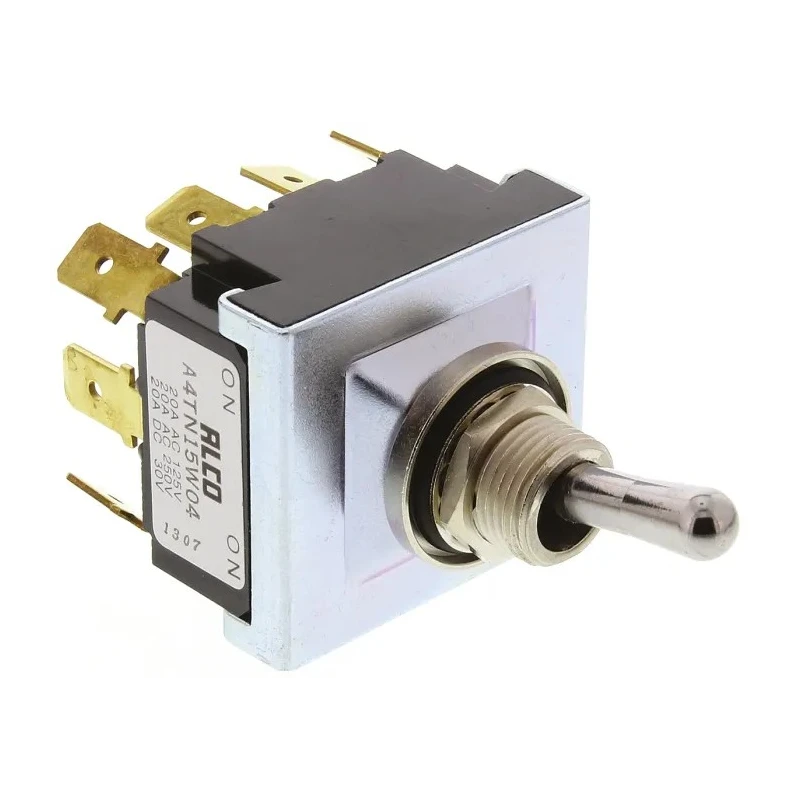

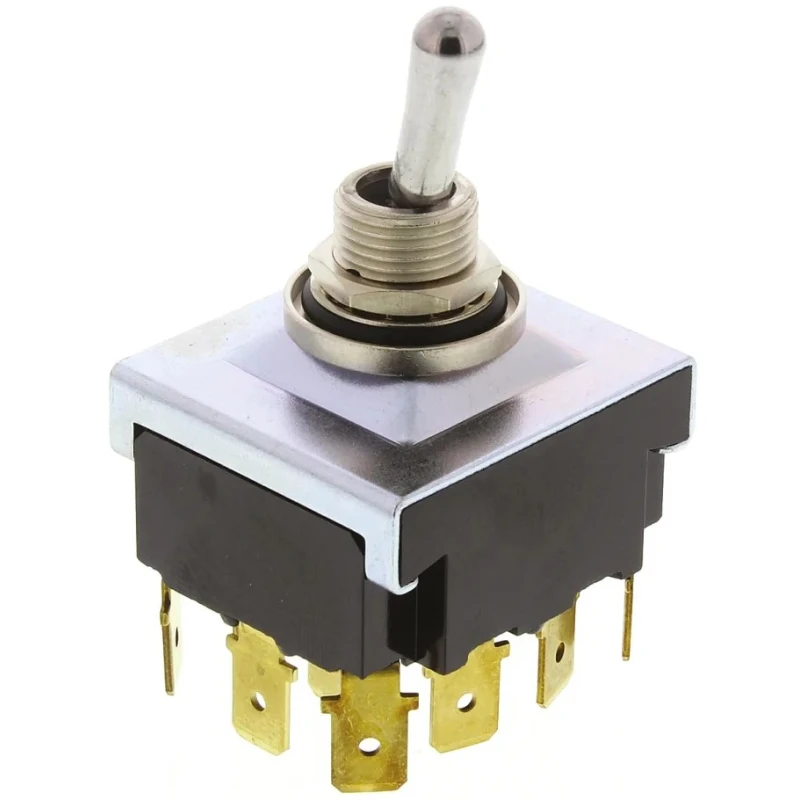

TE Connectivity Toggle Switch Panel Mount On-On 4PDT, Tab Terminal, 30 V dc, 250 V ac A4TN15W04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 24.5mm |
| Length | 36.5mm |
| Model | A4TN15W04 |
| IP Rating | IP67 |
| Width | 33mm |
| Mount Type | Panel |
| Series | AW |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Supports a 4PDT contact configuration for complex circuit switching.
- Rated at 20A contact current for heavy-duty applications.
- Equipped with brass actuator and glass filled polyester case for robust construction.
- Provides IP67 waterproof rating ensuring dust and liquid ingress protection.
- Operates reliably from -20°C to 70°C for harsh environmental conditions.
- Features tab terminals facilitating easy connection via soldering or receptacles.
- Mechanical life rated at 40,000 cycles ensuring long-term usage.
- Compact panel cutout size of 12.5 mm and actuator length of 17.5 mm.
Product Description
TE Connectivity A4TN15W04 toggle switch is a high-quality panel mount switch designed for On-On operation with a 4PDT contact configuration. Rated for 30 V DC and 250 V AC, this switch is suitable for various industrial and electrical control applications requiring reliable switching capabilities.
The switch features a brass actuator combined with a durable glass filled polyester case, providing mechanical strength and electrical insulation. The device is IP67 rated, which ensures complete protection against dust ingress and resistance to water, making it suitable for demanding environments including industrial automation, electrical panels, and HVAC systems.
With a contact current rating of 20A and mechanical life of 40,000 cycles, this toggle switch guarantees consistent performance and longevity. The tab terminals enable straightforward wiring options via soldering or receptacle connections, enhancing installation flexibility.
Its compact size with a panel cutout of 12.5 mm and actuator length of 17.5 mm makes it adaptable for use in control panels and instrumentation assemblies. The operating temperature range of -20°C to 70°C allows reliable function under varying thermal conditions.
Supports a 4PDT contact configuration for complex circuit switching. Rated at 20A contact current for heavy-duty applications. Brass actuator and glass filled polyester case ensure durability. Waterproof rating IP67 for protection against dust and liquids.
Mechanical life of 40,000 cycles for long-lasting use. Tab terminals support easy connection methods. Panel cutout size of 12.5 mm for compact installation. Operates between -20°C and 70°C temperature range.
This Toggle Switch is ideal for use in industrial and commercial electrical applications, including automation systems, control panels, and machinery requiring robust and reliable switching solutions. Its compliance with RoHS standards assures adherence to environmental and safety regulations.
Explore EnvMart’s catalog for more TE Connectivity products and electrical switch options tailored to industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4PDT (four poles, double throw) contact configuration, allowing for complex circuit switching.
It is rated for 30 V DC and 250 V AC, making it suitable for various electrical applications.
The switch is rated for a maximum contact current of 20A, suitable for heavy-duty applications.
This unit has an IP67 rating, ensuring it is protected against dust ingress and water immersion.
It operates reliably within a temperature range of -20°C to 70°C, making it suitable for various environments.
The mechanical life of this toggle switch is rated at 40,000 cycles, ensuring long-term usage.
It features tab terminals, which facilitate easy connection via soldering or receptacle methods.
The dimensions are 36.5 mm in length, 33 mm in width, and 24.5 mm in height, with a panel cutout size of 12.5 mm.
The actuator is made from brass, providing mechanical strength and electrical insulation.
Yes, it complies with RoHS standards, ensuring adherence to environmental and safety regulations.
This switch is designed for panel mounting, making it suitable for control panels and instrumentation assemblies.
This model is part of the AW series from TE Connectivity.
