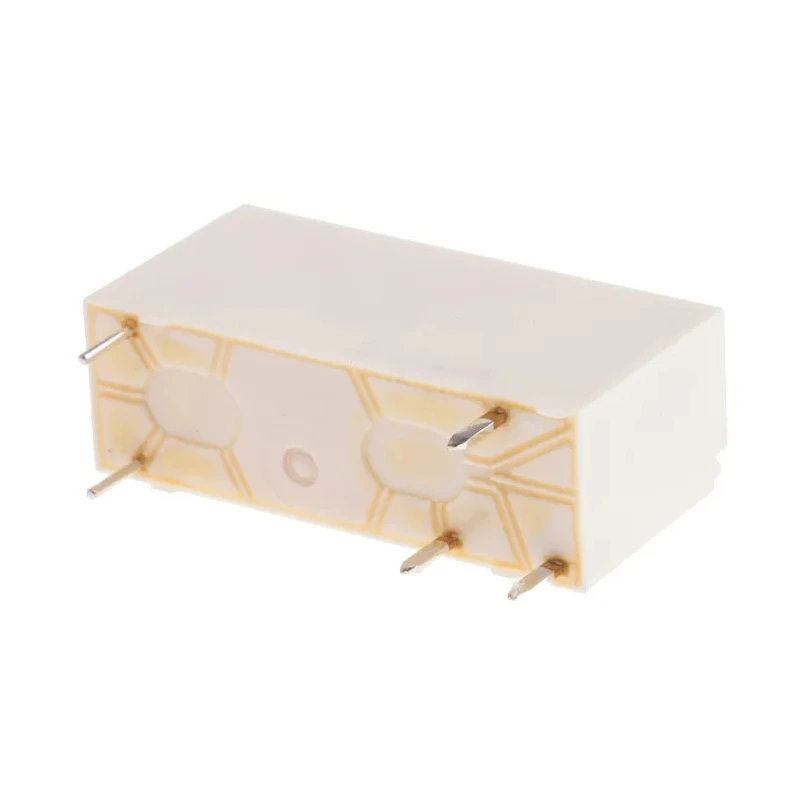

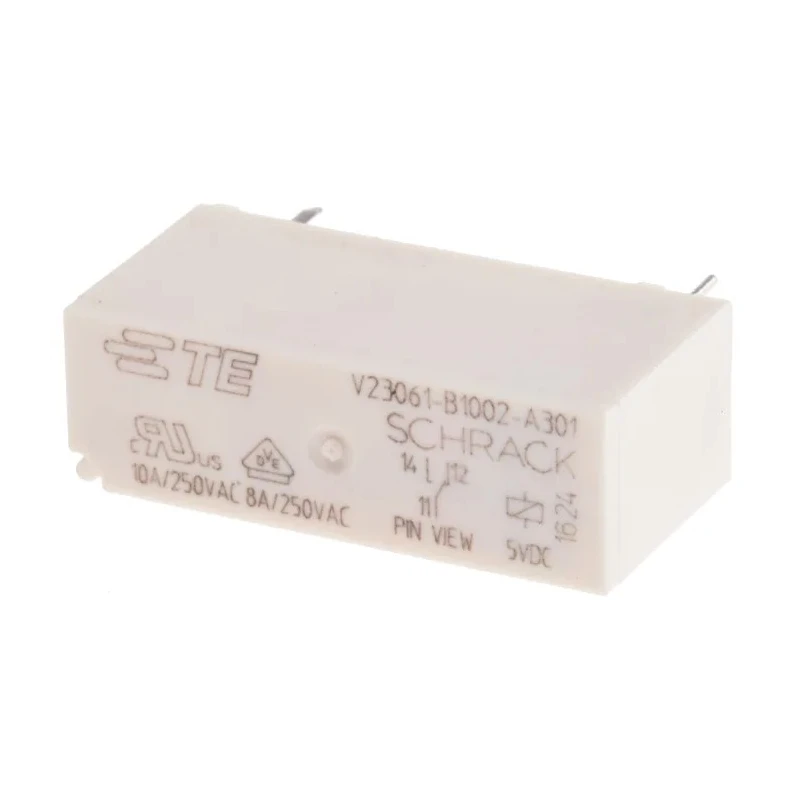

TE Connectivity MSR Series Miniature PCB Power Relay 5V DC Coil 8A Switching Current SPDT 7-1393222-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 30mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MSR |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL, UR |
| Coil Resistance | 118Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 220mW |
| Switching Power | 220mW |
Key Features
- Compact MSR series relay designed for PCB mounting with dimensions 15mm x 10mm x 30mm.
- Supports a switching power of 220mW and switching AC voltage up to 400V AC.
- Operates reliably in temperature range -40°C to +85°C.
- Equipped with silver alloy contacts ensuring durability and high inrush current capacity.
- Terminals are solder-type for secure and reliable PCB connections.
- Coil resistance is 118Ω with coil power consumption rated at 220mW.
- Complies with CSA, UL, and UR standards for safety and reliability.
Product Description
TE Connectivity 7-1393222-2 MSR Series Miniature PCB Power Relay is engineered for precise control in electrical and industrial automation applications requiring PCB mounting solutions. Featuring a 5V DC coil and a single-pole double-throw (SPDT) contact configuration, this relay effectively switches currents up to 8A, suitable for various power relay uses.
The relay boasts compact dimensions of 15mm height, 10mm width, and 30mm length, ideal for space-constrained PCB assemblies. It handles a switching power of 220mW and supports switching AC voltages up to 400V AC, enabling usage in multiple electrical scenarios.
Designed to operate over a wide temperature range from -40°C to +85°C, the TE Connectivity relay is robust against harsh environmental conditions. Its silver alloy contacts facilitate high inrush currents and contribute to sustained operational life.
Through-hole mounting with solder-type terminals ensures steady mechanical and electrical connections on PCBs. This product meets established industry standards including CSA, UL, and UR, guaranteeing quality and safety compliance for use in industrial, HVAC, manufacturing, and automation systems.
Ideal for applications requiring reliable power switching in consumer electronics, industrial control panels, HVAC controls, and automated machinery. The relay's compactness and performance make it a versatile component for electrical and electronic projects.
Compact MSR series relay designed for PCB mounting with dimensions 15mm x 10mm x 30mm. Supports a switching power of 220mW and switching AC voltage up to 400V AC. Operates reliably in temperature range -40°C to +85°C. Equipped with silver alloy contacts ensuring durability and high inrush current capacity.
Terminals are solder-type for secure and reliable PCB connections. Coil resistance is 118Ω with coil power consumption rated at 220mW. Complies with CSA, UL, and UR standards for safety and reliability. Explore the Electronics & Electricals category on EnvMart for more Power Relays and industrial control components from leading brands including TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can switch currents up to 8A, making it suitable for various power relay applications.
The relay has compact dimensions of 15mm in height, 10mm in width, and 30mm in length, ideal for PCB mounting.
It operates on a 5V DC coil with a power consumption rated at 220mW.
The relay supports switching AC voltages up to 400V AC, allowing for versatile electrical applications.
This model features a single-pole double-throw (SPDT) contact configuration.
The contacts are made of silver alloy, which enhances durability and supports high inrush current capacity.
It operates reliably within a temperature range of -40°C to +85°C, suitable for harsh environments.
This relay uses through-hole mounting with solder-type terminals for secure and reliable connections on PCBs.
It complies with CSA, UL, and UR standards, ensuring safety and reliability for various applications.
The coil resistance is 118Ω, which is an important specification for its operation.
This relay is suitable for applications in industrial control panels, HVAC controls, consumer electronics, and automated machinery.
The relay supports a switching power of 220mW, making it effective for various power relay uses.
