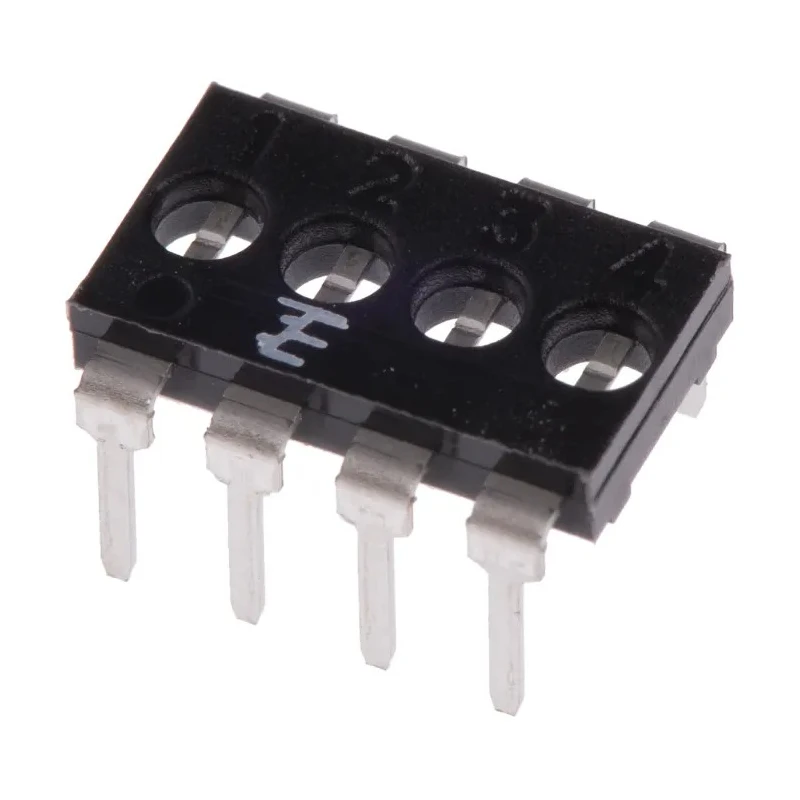

TE Connectivity AMPMODU Shunt Straight Male Black DIP Switch 8 Way 4 Row 2.54 mm Pitch 1825190-3

TE Connectivity 1825190-3 AMPMODU Shunt Straight Male Black DIP Switch is a specialized jumper designed for reliable electrical connections on PCBs. This DIP (Dual Inline Package) switch features 8 contacts arranged in 4 rows, enabling flexible circuit breaking or closing via conductive straps. The shunt utilizes a 2.54 mm pitch spacing, which is standard for industry applications, ensuring compatibility with a wide range of PCB designs.

The housing is made from UL 94V-0 rated glass-filled polyester, providing high durability and flame resistance, while the contacts are crafted from copper alloy with a protective tin over nickel plating to provide excellent conductivity and corrosion resistance. This connector supports currents up to 3 amperes and voltages up to 250V, making it suitable for multiple electronic and electrical system requirements.

Dimensions of this AMPMODU shunt are compact, with a length of 5.08 mm, width of 2 mm, and depth of 10.16 mm. The straight male connector orientation and through-hole mounting style facilitate simple and secure installation on PCBs. Maximum contact resistance of 15 milliohms ensures minimal signal loss.

This AMPMODU shunt is widely used across electronic component assemblies, power and connector systems, control panel circuits, and other industrial automation settings requiring reliable wire-to-board or board-to-board connections. Its modular design allows easy customization by breaking conductive straps for open circuit configurations.

Features a straight male connector with black polyester housing. Comprises 8 contacts organized in 4 rows for versatile circuit configurations. Supports a current rating of 3A and voltage up to 250V. Constructed with copper alloy contacts plated with tin over nickel for durability.

Measures 5.08mm length, 2mm width, and 10.16mm depth for compact PCB mounting. Mount style is through hole compatible with standard 2.54mm pitch spacing. Maximum contact resistance is maintained at 15 milliohms ensuring efficient connectivity.

Utilized in electronic components, power connectors, and PCB wire housing applications. Explore more quality connectors and jumpers from TE Connectivity at EnvMart for your industrial, manufacturing, and electronics design needs.
