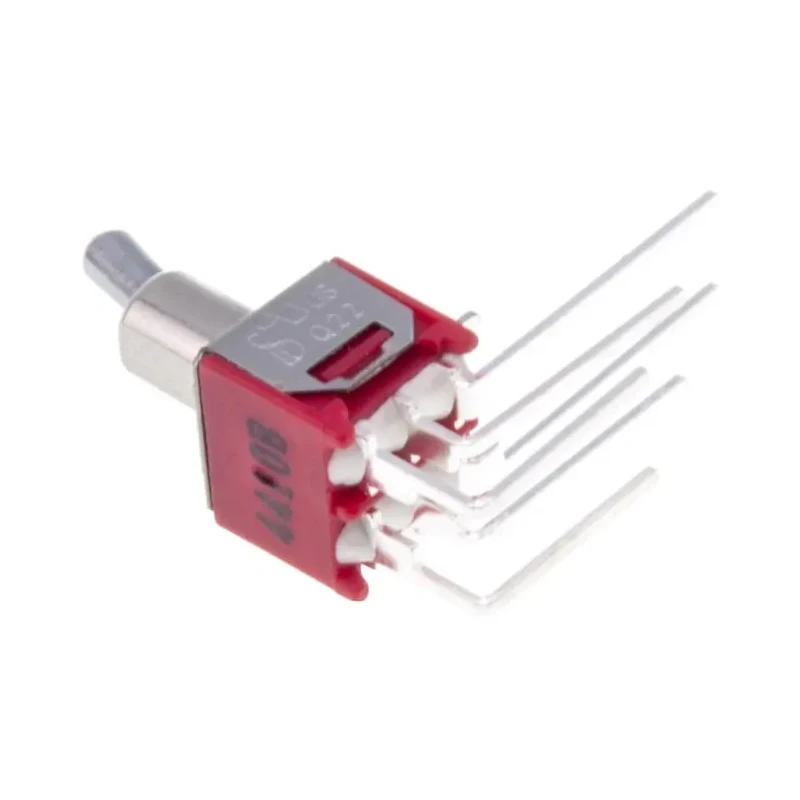

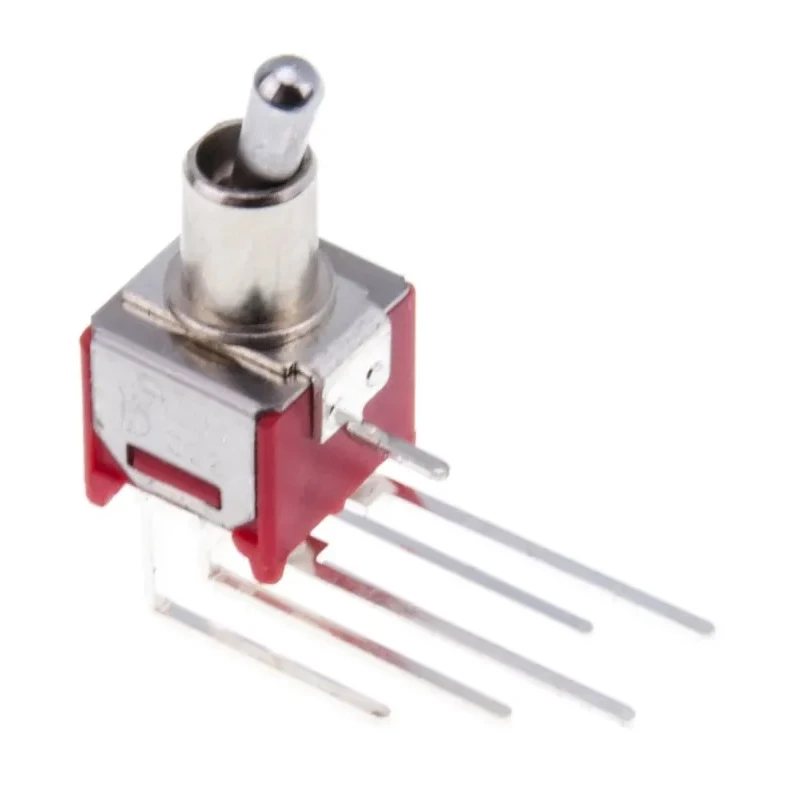

RS PRO PCB Mount Toggle Switch On-On DPDT Through Hole Terminal 15 V dc 240 V ac 734-7189

RS PRO 734-7189 is a high-quality PCB mount toggle switch designed for applications requiring robust On-On DPDT switching at voltages of 15 V DC and 240 V AC. Its sub-miniature size and durability make it ideal for industrial control, automation, and electronic equipment.

The switch is configured as Double Pole Double Throw (DPDT), allowing control of two circuits simultaneously, with a switch operation mode of On-On for mutually exclusive outputs. The terminal type is through hole, ensuring solid solder connections on printed circuit boards for reliable electrical performance.

Featuring a chrome plated brass actuator, the switch provides excellent mechanical endurance, rated for 30,000 cycles, ensuring maintenance-free operation over long service intervals. It is IP56 and IP66 rated, protecting it against dust ingress and powerful water jets, making it suitable for demanding industrial environments and outdoor installations.

With a panel cutout size of 4.95 mm and an actuator length of 5.33 mm, it fits compact designs while maintaining ease of operation. Its operating temperature range from -30°C to 85°C offers versatility across varied climatic conditions.

The toggle switch is RoHS and lead-free compliant, supporting environmentally conscious manufacturing. It is part of the RS PRO series of sub-miniature toggle switches known for low contact resistance, high insulation resistance, and durability, making it well suited for use in industrial automation, electrical assemblies, instrumentation, and laboratory equipment.

The toggle switch features a DPDT contact configuration for dual pole double throw operation. It supports On-On switch operation for toggling between two steady states. Designed for PCB mounting with through hole terminals for secure and stable connections.

Rated for 15 V DC and 240 V AC contact voltages suitable for low voltage circuits. Constructed with a chrome plated brass actuator for durability and corrosion resistance. It offers robust IP56 and IP66 ingress protection for dust and water resistance in harsh environments.

The switch has a mechanical life of 30,000 cycles ensuring long-term reliability. Operates reliably in temperature ranges from -30°C to 85°C for versatile industrial use. This RoHS and lead-free compliant toggle switch meets industry environmental standards.

Compact actuator length of 5.33 mm and panel cutout size of 4.95 mm allow easy mounting in tight PCB layouts.

This RS PRO toggle switch is ideal for electronics manufacturing, industrial control panels, automation systems, and other applications where reliable, compact switching is required. Explore more Toggle Switches and related components in the Electronics & Electricals category at EnvMart.
