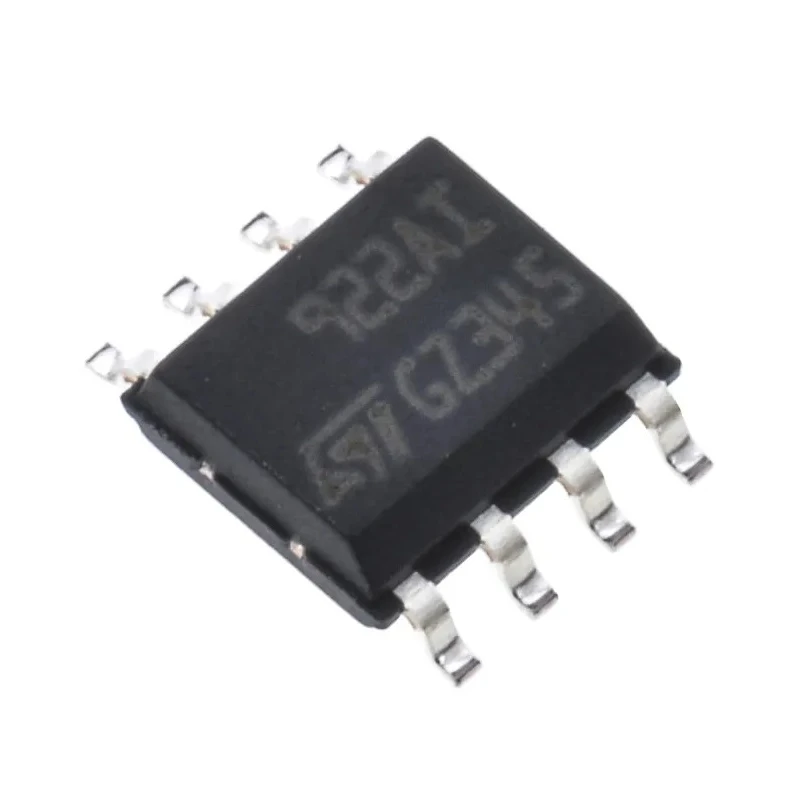

STMicroelectronics Operational Amplifier Dual Channel 4 MHz Gain Bandwidth Product, 8-Pin SOIC Package TS922AIDT

STMicroelectronics TS922AIDT is a dual channel operational amplifier designed for applications requiring precision, low noise, and high speed. This device operates efficiently with supply voltages ranging from 3 V up to 12 V, making it compatible with a wide range of electronic circuits.

Featuring a gain bandwidth product of 4 MHz, this amplifier is capable of high frequency operations suitable for audio processing, sensor interfaces, and instrumentation. Its rail-to-rail input and output stages provide maximum dynamic range and flexibility for signal amplification.

Key performance characteristics include a low noise density of 9 nV/√Hz, a fast slew rate of 1.3 V/μs to minimize distortion, and an output current of up to 80 mA, allowing it to drive low impedance loads such as 32 Ω speakers. The device also maintains a low input offset voltage of 1.8 mV, ensuring signal accuracy and stability.

The TS922AIDT comes in a compact 8-pin SOIC surface mount package with dimensions of 1.25 mm height, 4.9 mm length, and 3.9 mm width, suitable for automated PCB assembly processes. This operational amplifier meets RoHS compliance and the AEC-Q100 automotive standard, supporting both environmental and quality requirements for industrial and automotive electronics.

Ideal for use in industrial, automotive, audio equipment, instrumentation, and consumer electronic devices, the TS922AIDT offers reliability and precision in a small, versatile package.

Optimized for 3 V to 12 V power supply operation. Offers low noise at 9 nV/√Hz for high-fidelity signal processing. Includes rail-to-rail input and output capability. High output current of 80 mA capable of driving 32 Ω loads.

Fast slew rate of 1.3 V/μs ensuring quick response. Wide operating temperature range from -40°C to 125°C. Surface mount package enhances PCB assembly efficiency. Low input offset voltage of 1.8 mV ensures accuracy. Compliant with RoHS directives and AEC-Q100 automotive standard.

Compact SOIC form factor with 1.25 mm height, 4.9 mm length, and 3.9 mm width. Explore a broad range of Operational Amplifiers and semiconductor components at EnvMart for your industrial and electronic design needs.
