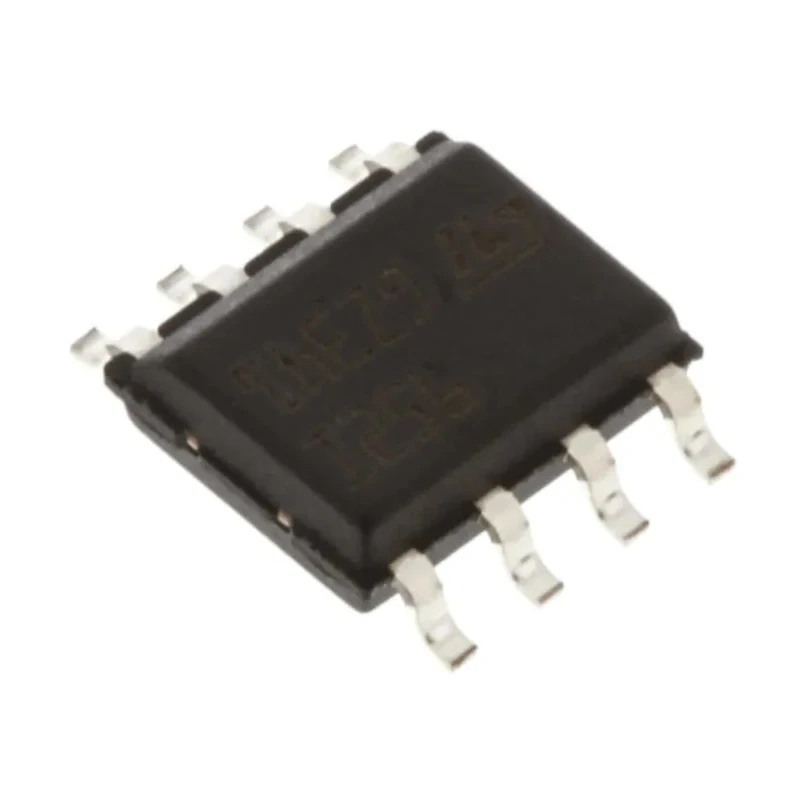

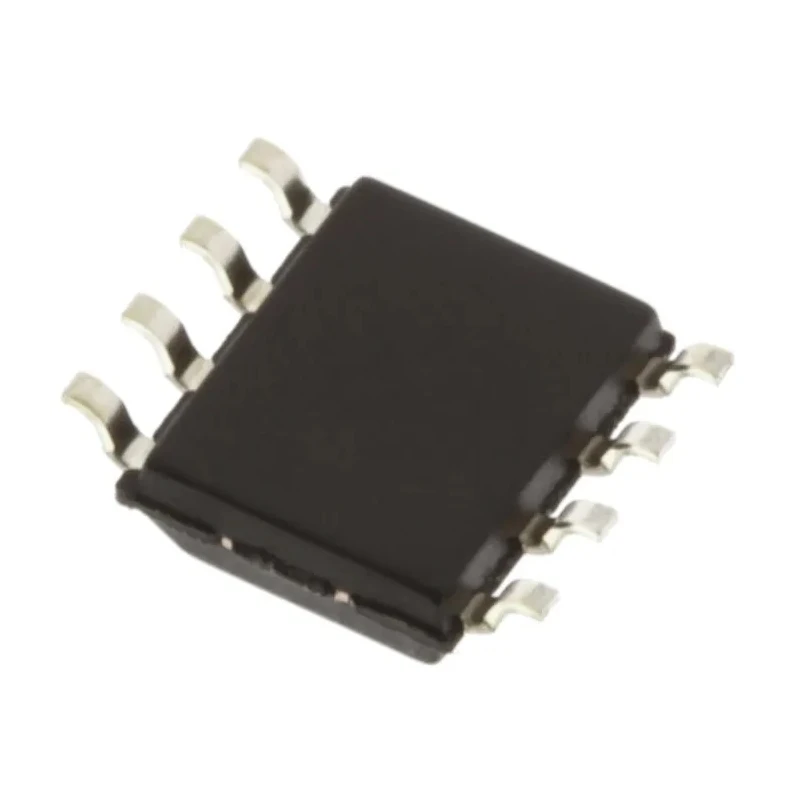

STMicroelectronics Operational Amplifier Dual Channel 3 MHz Gain Bandwidth, 8-Pin SOIC Package TS952IDT

STMicroelectronics TS952IDT is a high-performance dual channel operational amplifier designed for low voltage, low distortion, and high-speed applications. This device operates efficiently with supply voltages ranging from 3V to 12V and offers a gain bandwidth product of 3 MHz, making it suitable for industrial, laboratory, and consumer electronics.

The operational amplifier features rail-to-rail input and output stages, allowing signal swings close to the supply rails and providing excellent dynamic range in low voltage systems. It achieves a low total harmonic distortion of 0.01%, ensuring signal integrity for precise analog signal processing.

With a slew rate of 1V per microsecond and low current consumption of 0.9 mA at 3V supply, the TS952IDT is optimized for battery-powered and energy-sensitive applications. Its input offset voltage of 8 mV and input bias current of 200 nA improve accuracy in sensitive circuits.

The device is packaged in an 8-pin SOIC surface mount package with compact dimensions of 4.9 mm by 3.9 mm by 1.25 mm, facilitating dense PCB designs. It meets the automotive AEC-Q100 standard, supporting robust performance over a wide temperature range from -40°C to 125°C, suitable for automotive and industrial environments. Output current capability up to 10 mA enables driving a variety of loads.

Typical applications include industrial instrumentation, consumer electronics, signal conditioning, data acquisition systems, and automotive electronics requiring stable and precise operation. The TS952IDT complements the TS951 (single) and TS954 (quad) devices in the TS95x series, providing versatility across different channel needs.

The amplifier operates at a low supply voltage range from 3V to 12V. Offers rail-to-rail input common mode voltage range and rail-to-rail output voltage swing. Features low distortion with 0.01% total harmonic distortion.

Provides a slew rate of 1V/μs and a gain bandwidth product of 3 MHz for high speed operation. Includes a low supply current of 0.9 mA at 3V for energy-efficient designs. Equipped with an input offset voltage of 8 mV and input bias current of 200 nA.

Usable over a wide temperature range from -40°C to 125°C, meeting automotive AEC-Q100 standards. Output current capability up to 10 mA suitable for various electronic applications. Compact dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height allowing space-efficient PCB layout.
