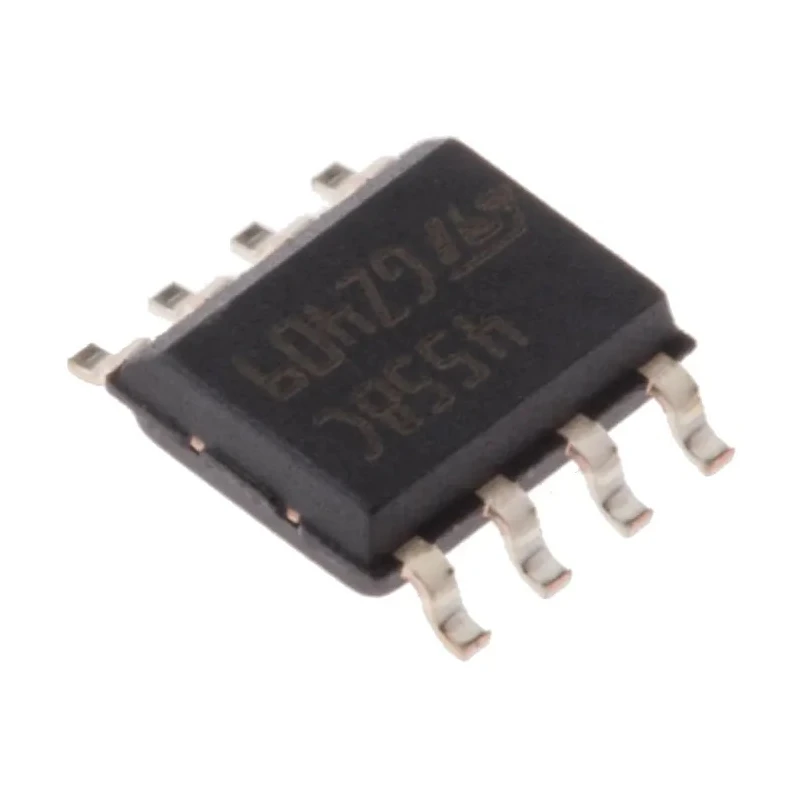

STMicroelectronics Operational Amplifier Dual Channel 5.5MHz 8-Pin SOIC MC4558CDT

STMicroelectronics MC4558CDT is a high performance dual bipolar operational amplifier designed for use in a range of industrial and electronic applications. With a gain bandwidth product of 5.5 MHz and dual channel configuration, this amplifier ensures reliable and consistent amplification performance.

It is housed in a compact 8-pin SOIC surface mount package with dimensions of 5 mm length, 4 mm width, and 1.25 mm height, facilitating easy integration into PCB designs. The amplifier operates with supply voltages ranging from a minimum of 2 V up to 20 V, allowing versatility across various circuit requirements.

Featuring a low input bias current of 500 nA and input offset current of 200 nA, the MC4558CDT provides high precision. Its slew rate of 2.2 V/μs enables swift signal response, while short circuit protection enhances durability and reliability during operation.

The product meets RoHS compliance standards, ensuring environmentally friendly manufacturing and usage. Typical operating temperature range is from 0 °C to 70 °C, suitable for many commercial and industrial environments.

This operational amplifier is ideal for applications in industrial electronics, laboratory instrumentation, audio processing, and other manufacturing or research settings requiring stable dual channel amplification.

High performance dual bipolar operational amplifier. Gain bandwidth product of 5.5 MHz. Dual channels for stereo or dual signal amplification. Compact 8-pin SOIC surface mount package. Low input bias and offset currents for precision.

Wide supply voltage range from 2 V to 20 V. Slew rate of 2.2 V/μs for fast response. Short circuit protection for reliability. RoHS compliant design. Operating temperature 0 °C to 70 °C. Explore more STMicroelectronics Operational Amplifiers and other semiconductor components at EnvMart for your industrial and electronic design needs.
