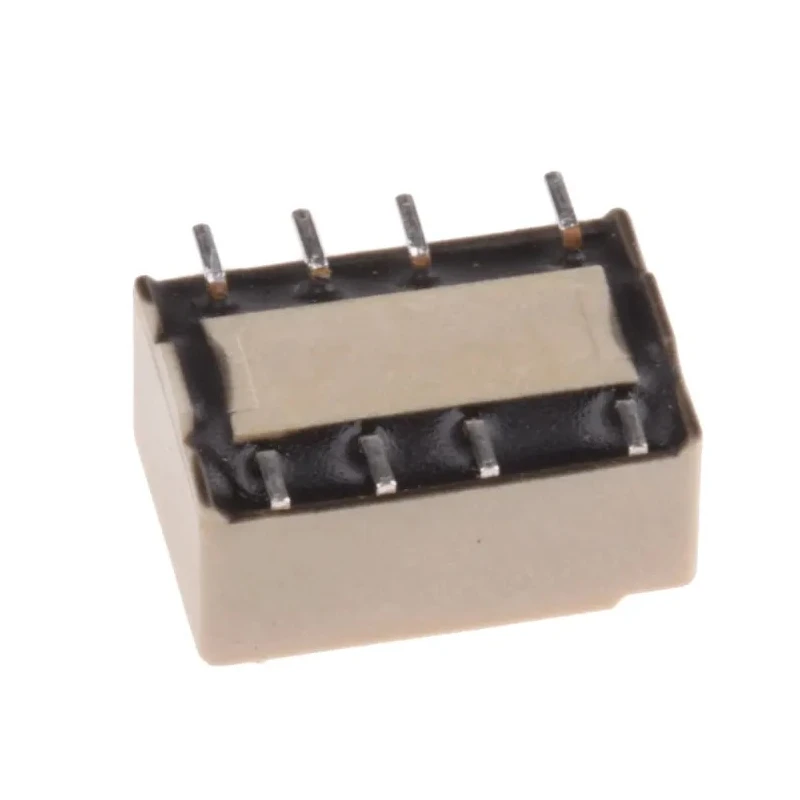

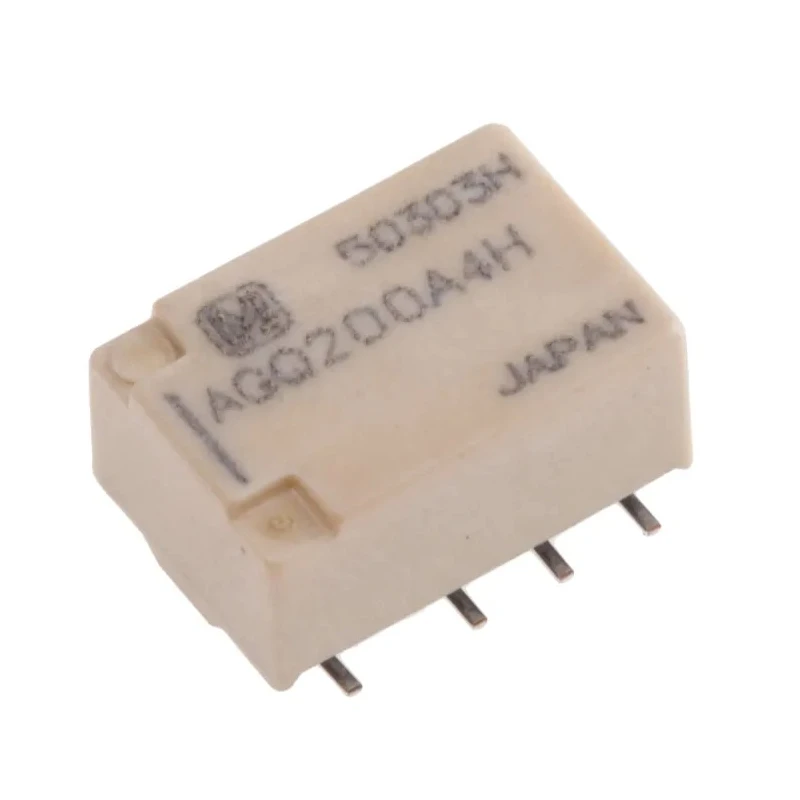

Panasonic PCB Signal Relay 4.5V DC Coil 1A DPDT FTR-B4 AGQ200A4H

Panasonic AGQ200A4H PCB Signal Relay is a high precision signal relay designed for PCB mount applications with a coil voltage of 4.5V DC and a switching current capacity of 1A. This DPDT (Double Pole Double Throw) contact relay belongs to the FTR-B4 series and offers excellent performance in minimal space due to its compact flat body measuring 10.9mm x 7.5mm x 5.2mm. It operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for diverse industrial and commercial environments.

The relay’s gold plated silver aluminium contacts provide low contact resistance and durable conductivity. The sealed construction enables automatic washing processes, enhancing manufacturing efficiency and product longevity. Additionally, the relay provides superior surge resistance withstanding up to 2500V impulses of 2x10 microseconds and 1500V impulses of 2x160 microseconds, ensuring durability even under voltage spikes.

The coil resistance is 145Ω with nominal coil power consumption of only 140mW, contributing to low power operation. The device also features excellent shock and vibration resistance, withstanding functional shocks of 705 m/s² and vibration frequencies from 10 to 55Hz. These rugged attributes make it highly dependable in telecommunications, telephone switchboards, security systems, measurement instruments, and consumer electronic applications such as audio-visual equipment.

Compact design measuring 10.9mm length, 7.5mm width, and 5.2mm height. Gold plated silver aluminium contacts provide corrosion resistance and reliable signal transmission. Sealed construction supports automatic washing and prevents contamination.

High surge resistance of 2500V and 1500V protects against voltage spikes. Wide operating temperature range from -40°C to 85°C for versatile applications. Coil power consumption of 140mW ensures energy efficiency. Robust against high vibration and shock suitable for industrial environments.

DPDT contact arrangement delivers flexible switching options. Easy PCB mount installation with standard PCB terminals. Applications include telecom, security, measurement, consumer electronics, and audio-visual equipment.

This Panasonic AGQ200A4H industrial-grade PCB signal relay offers reliable performance in compact form, ideal for demanding electrical and automation projects requiring a durable Signal Relay solution.
