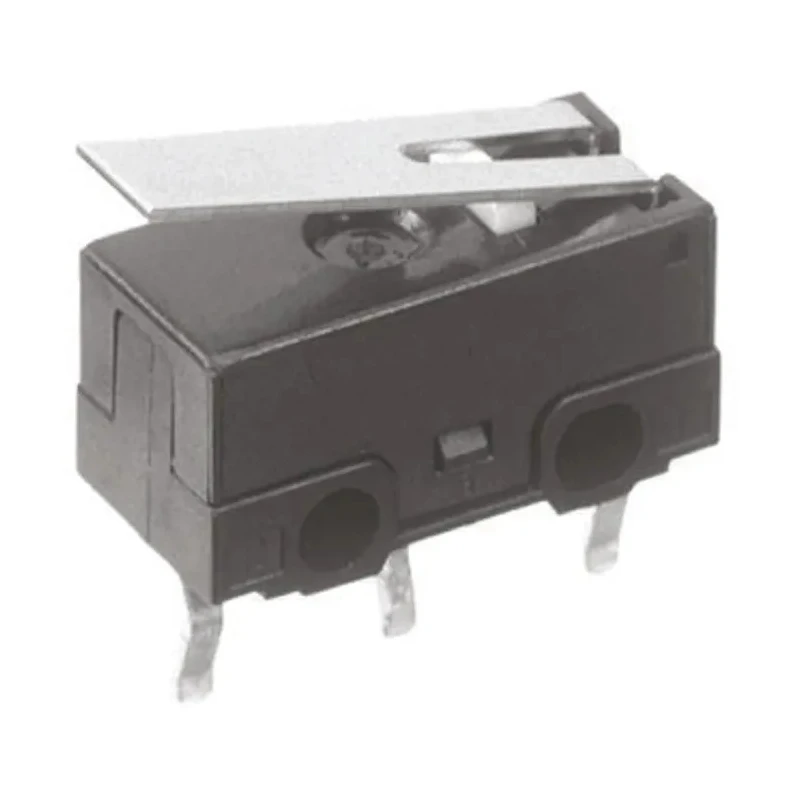

Panasonic Hinge Lever Ultra Miniature Micro Switch PCB Terminal 100mA 125V AC 30V DC AH1562619-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | AH1562619-A |
| Depth | 6mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | CSA, RoHS, UR |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.49N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- This micro switch is rated for 100mA contact current.
- It supports contact voltages of 125V ac and 30V dc.
- The contact configuration is Single Pole Double Throw (SPDT).
- Operating force is 0.49N, ensuring sensitive actuation.
- The switch operates reliably from -25°C up to 85°C.
- Compact dimensions of 12.8mm length and 6mm depth save space in designs.
- It has a mechanical life expectancy of 500,000 operations.
- The device complies with CSA, RoHS, and UR standards.
Product Description
Panasonic AH1562619-A ultra miniature micro switch is engineered for high precision and reliability in compact equipment. This hinge lever type micro switch with PCB terminal connection is ideally suited for applications demanding small form factor and sensitive switching capability.
Designed to withstand operating temperatures from -25°C to 85°C, this device functions well in diverse industrial and electronic environments. It supports a contact current of 100mA and contact voltages of 125V AC and 30V DC, making it suitable for low power control circuits.
The SPDT contact configuration offers versatility for various switching needs, and the 0.49N operating force allows for sensitive and accurate actuation. Measuring only 12.8mm in length and 6mm in depth, it facilitates integration into space-limited applications such as computer mice, mobile phone charger units, and automotive key position detection devices.
The micro switch's mechanical life of 500,000 operations ensures durable performance in industrial, manufacturing, electronics, and automation sectors. Panasonic’s AH1 series emphasizes ultra-miniature design without compromising quality.
Rated for 100mA contact current. Supports 125V AC and 30V DC contact voltages. Features SPDT contact configuration. Operates within -25°C to 85°C temperature range. Compact size: 12.8 x 6 x 8.5 mm. Mechanical life of 500,000 operations.
Meets CSA, RoHS, and UR approvals.
These switches are broadly applicable within industrial automation, electronics manufacturing, laboratory equipment, and automotive systems. Its compact hinge lever actuator and PCB terminal design ease installation and promote efficient performance in precision applications.
Explore more Panasonic Micro Switches and related components at EnvMart for reliable industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch is rated for a contact current of 100mA.
It supports contact voltages of 125V AC and 30V DC.
The contact configuration is Single Pole Double Throw (SPDT).
This model operates reliably within a temperature range of -25°C to 85°C.
It has a mechanical life expectancy of 500,000 operations.
The dimensions are 12.8mm in length and 6mm in depth.
It features a hinge lever actuator type.
This micro switch has a PCB terminal type.
It complies with CSA, RoHS, and UR standards.
The operating force is 0.49N, allowing for sensitive actuation.
It is suitable for applications in industrial automation, electronics manufacturing, laboratory equipment, and automotive systems.
This model belongs to the Panasonic AH1 series.
