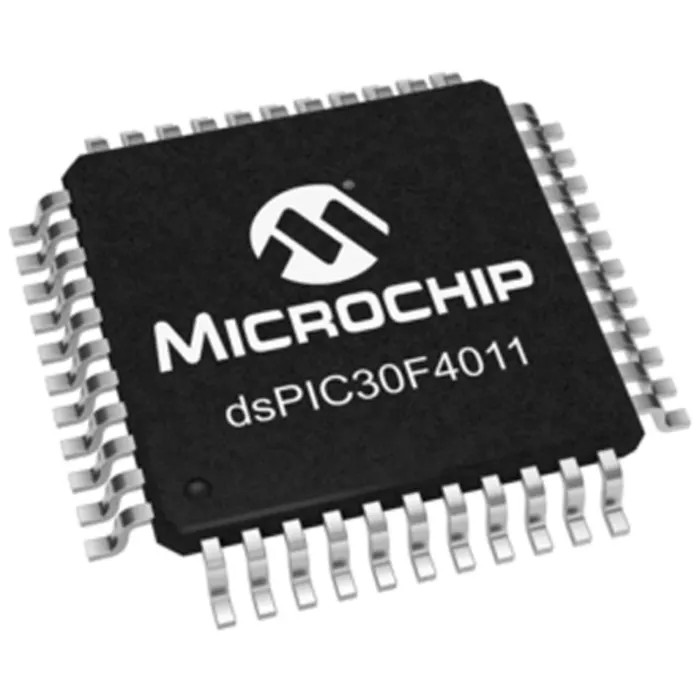

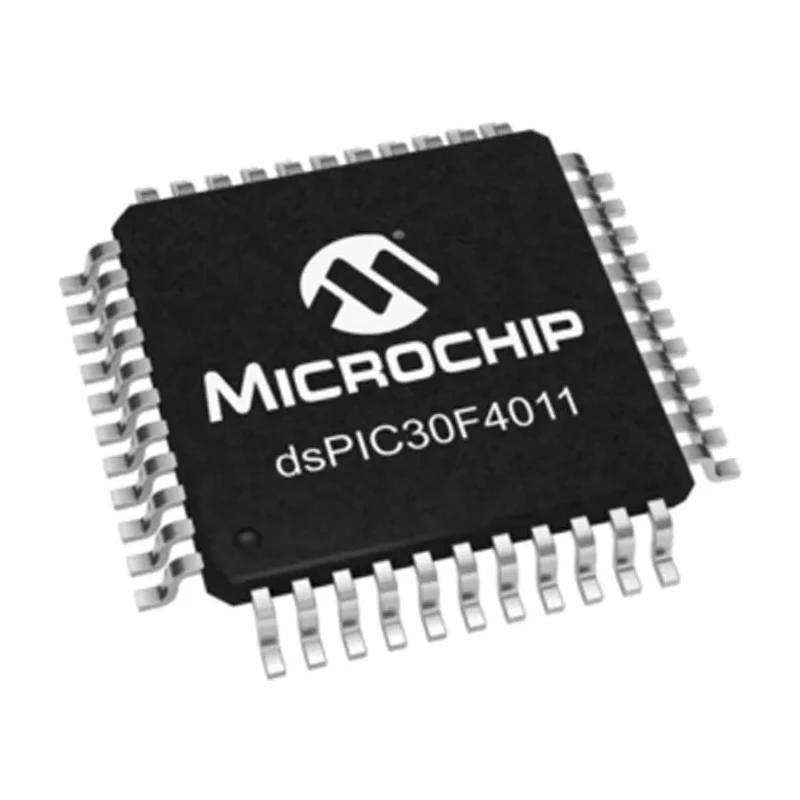

Microchip 16 bit Digital Signal Processor 30 MIPS 48kB FLASH 44-Pin TQFP dsPIC30F4011-30I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC30F4011-30I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | dsPIC30F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| ADC Resolution | 10bit |
| Timer Resolution | 16bit |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Program Memory Size | 48kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 30MIPS |
| Number of PWM Units | 5 |
| PWM Resolution | 16bit |
| ADC Channels | 9 |
| Number of PWM Channels | 6 |
Key Features
- Operates from 2.5V to 5.5V supply voltage range for flexible power configurations.
- Features a RISC instruction set architecture enhancing processing efficiency.
- Contains 2kB RAM and 48kB program memory for complex digital signal processing tasks.
- Includes 6 PWM channels and 9 ADC channels for advanced motor control and sensing applications.
- Package dimensions are 10 mm by 10 mm with a height of 1.05 mm in surface mount TQFP form factor.
- Supports industrial operating temperature range from -40°C to 85°C for robust performance.
- Ideal for digital power converters, advanced motor control algorithms, and audio/speech processing.
Product Description
Microchip dsPIC30F4011-30I/PT is a high-performance 16 bit Digital Signal Processor offering 30 MIPS speed and 48kB FLASH memory in a compact 44-pin TQFP surface mount package.
Designed to operate over a wide voltage range from 2.5V up to 5.5V, it features a RISC architecture, 2 kB RAM, and an integrated set of peripherals including 6 PWM channels, 5 PWM units, and 9 ADC channels with 10 bit resolution.
This DSP excels in applications such as digital power conversion, sophisticated motor control, and speech/audio codecs where both efficiency and processing power are crucial.
Its industrial-grade operating temperature range from -40°C to +85°C ensures reliable use in harsh environments. The package size of 10 mm by 10 mm and height of 1.05 mm makes it suitable for compact PCB layouts.
Additional features include multiple timers with 16 bit resolution, surface mount TQFP package, and a maximum clock frequency of 30 MIPS that balance performance with power consumption.
Wide supply voltage range supports diverse industrial power systems. Integrated peripherals facilitate complex digital signal processing and control tasks. Compact TQFP package allows space-efficient PCBs in embedded systems.
Robust operating temperatures cater to automotive and industrial applications. High PWM and ADC channel count supports advanced sensor and motor interfaces.
Perfect for industrial, automotive, commercial, and embedded system design, this digital signal processor combines processing speed with low power consumption and a rich peripheral set tailored for smart sensing and control solutions.
Explore more Microchip Digital Signal Processors and related semiconductor components at EnvMart for your next design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C, making it suitable for industrial applications in harsh environments.
This digital signal processor operates within a supply voltage range of 2.5V to 5.5V, allowing for flexible power configurations.
It includes 9 ADC channels, each with a 10-bit resolution, which supports advanced sensing applications.
This unit features a program memory size of 48kB, suitable for complex digital signal processing tasks.
The package dimensions are 10 mm by 10 mm with a height of 1.05 mm, and it comes in a TQFP surface mount package.
It has 6 PWM channels, which are beneficial for advanced motor control applications.
This model utilizes a RISC instruction set architecture, enhancing processing efficiency for various applications.
The RAM size in this digital signal processor is 2kB, supporting its processing capabilities.
This unit features a timer resolution of 16 bits, which is suitable for precise timing applications.
It includes a total of 5 timers, providing versatile timing functions for various tasks.
The minimum operating temperature for this model is -40°C, allowing for reliable performance in extreme conditions.
This digital signal processor is ideal for applications such as digital power converters, advanced motor control algorithms, and audio/speech processing.
